NSN 3110-00-881-4810 D358146, D3-58146, KU77995CJ
Product Details | CYLINDRICAL ROLLER BEARING
3110-00-881-4810 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Part Alternates: D358146, D3-58146, KU77995CJ, KU77995-CJ, 462763, 580151, 580152, 580153, 589016, 654214, 658401, 3110-00-881-4810, 00-881-4810, 3110008814810, 008814810
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 08 NOV 1967 | 00-881-4810 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
Drawings & Photos | NSN 3110-00-881-4810
Demand History | NSN 3110-00-881-4810
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-881-4810 | 2013-02-37 | 2 | DIBBS |
Cross Reference | NSN 3110-00-881-4810
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 462763 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 580151 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 580152 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 580153 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 589016 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 654214 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 658401 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| D3-58146 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| KU77995-CJ | 01212 | FEDERAL-MOGUL CORP GOVERNMENT SALES DEPT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-881-4810
Related Products | NSN 3110-00-881-4810
Technical Data | NSN 3110-00-881-4810
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL INNER RING STEEL OUTER RING STEEL COMP 4340 RETAINER STEEL ROLLER |
| MATERIAL DOCUMENT AND CLASSIFICATION | PWA-742,97497 MFR REF 1ST MATERIAL RESPONSE INNER RING PWA-742,97497 MFR REF 2ND MATERIAL RESPONSE OUTER RING PWA-742,97497 MFR REF 3RD MATERIAL RESPONSE ROLLER |

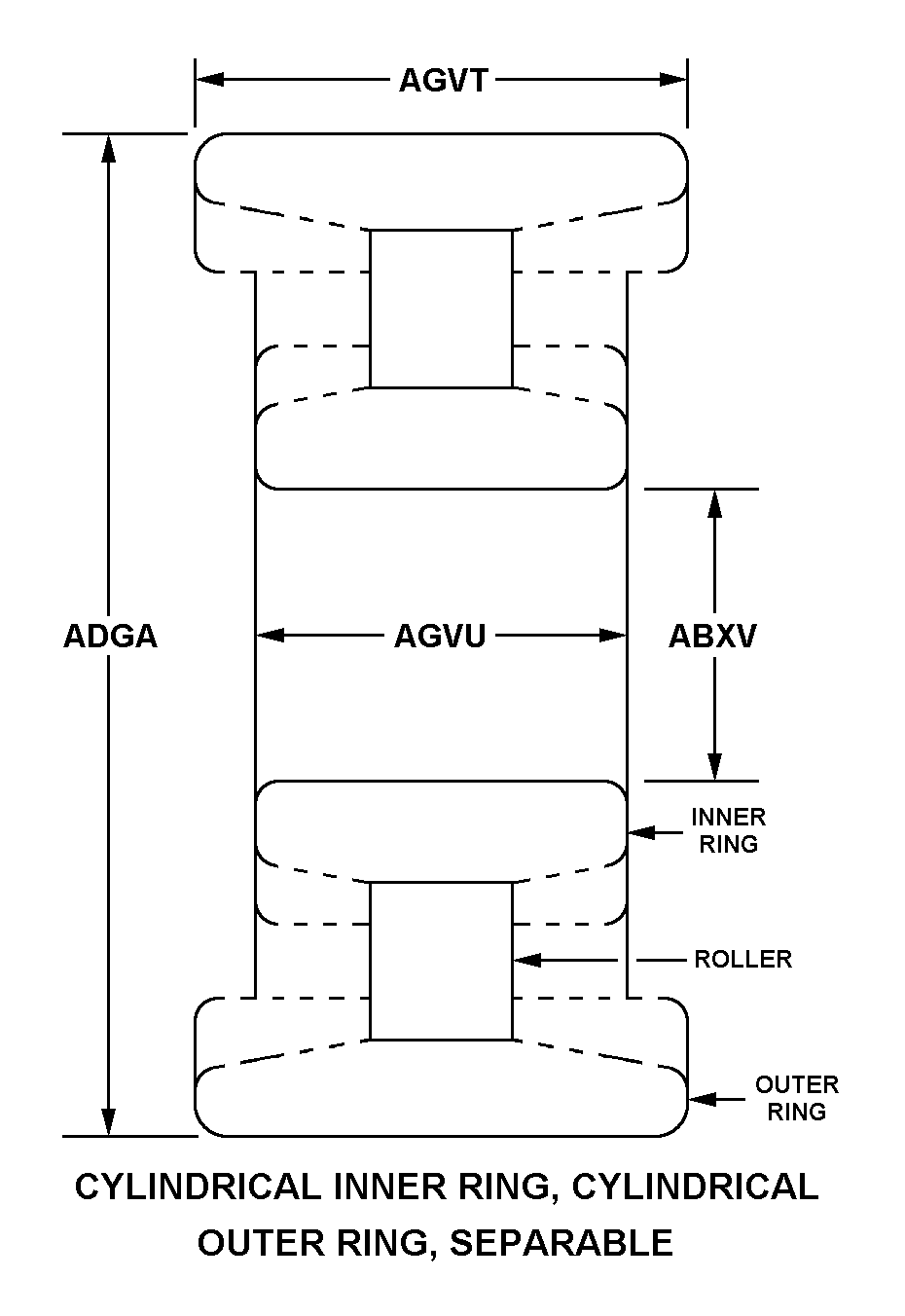

| STYLE DESIGNATOR | 265A CYLINDRICAL INNER RING, CYLINDRICAL OUTER RING, SEPARABLE |
| BORE DIAMETER | 3.1047 INCHES MINIMUM AND 3.1050 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 4.3113 INCHES MINIMUM AND 4.3116 INCHES MAXIMUM |
| OUTER RING WIDTH | 1.0186 INCHES MINIMUM AND 1.0236 INCHES MAXIMUM |
| INNER RING WIDTH | 0.7824 INCHES MINIMUM AND 0.7874 INCHES MAXIMUM |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.5 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| LOCATING FEATURE | NONLOCATING |
| INTERNAL CLEARANCE | 0.0050 INCHES MINIMUM RADIAL AND 0.0055 INCHES MAXIMUM RADIAL |
| SPECIAL FEATURES | NONSEPARABLE |
Restrictions/Controls & Freight Information | NSN 3110-00-881-4810
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-881-4810
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
