NSN 3110-00-887-1494 MS171312, MS17131-2, ASTM F 2162
Product Details | NEEDLE ROLLER BEARING
3110-00-887-1494 A single or multiple-row antifriction bearing used with or without inner or outer races characterized by relatively small size rollers usually not ranging above 0.250 inch (6.35mm) diameter and generally longer in length in relation to diameter.
Part Alternates: MS171312, MS17131-2, ASTM F 2162, ASTMF2162, B-2 1/2 5, B2 1-2 5, B2125, DCB2125, DCB21-2-5, 3110-00-887-1494, 00-887-1494, 3110008871494, 008871494
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1962 | 00-887-1494 | 00051 ( BEARING, ROLLER, NEEDLE ) |

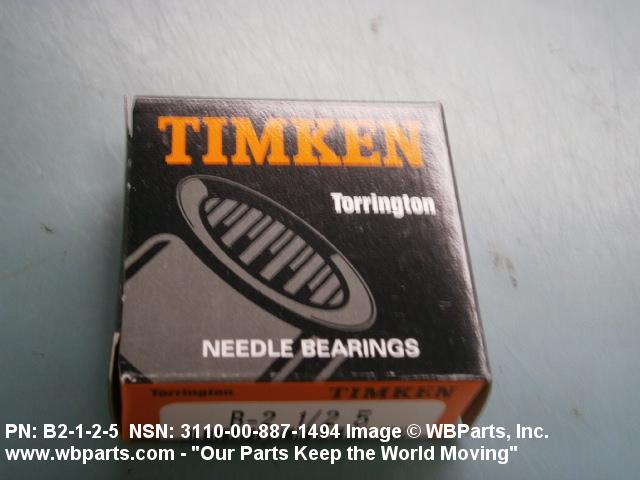

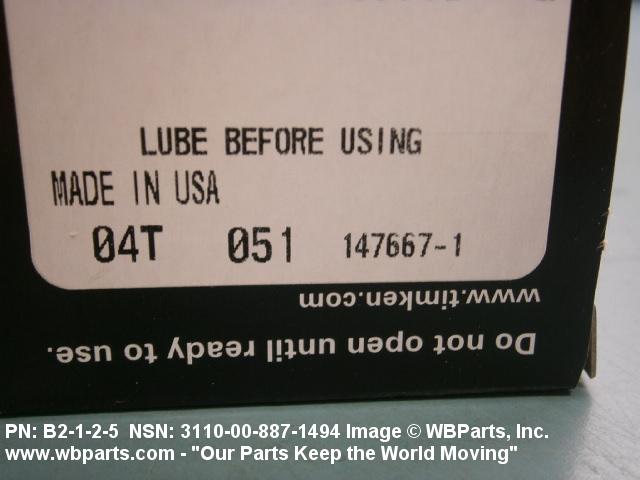

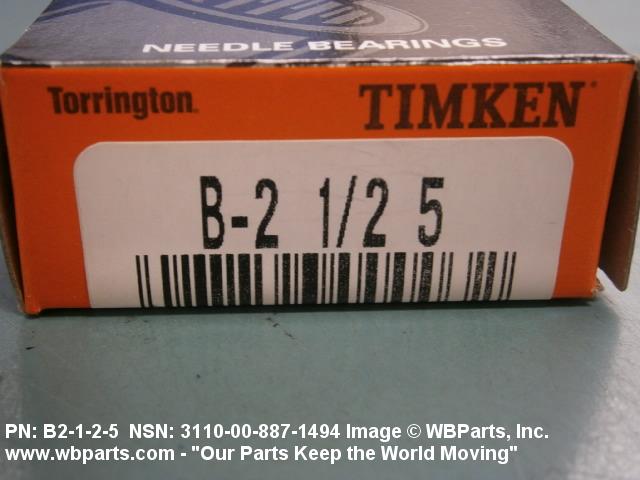

Drawings & Photos | NSN 3110-00-887-1494
Demand History | NSN 3110-00-887-1494
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-887-1494 | 2018-09-268 | 10 | DIBBS |
| B2125 | 2013-08-214 | 12 | United States |
Cross Reference | NSN 3110-00-887-1494
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ASTM F 2162 | 81346 | AMERICAN SOCIETY FOR TESTING AND MATERIALS |
| B-2 1/2 5 | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| B2 1-2 5 | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| DCB21-2-5 | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| MS17131-2 | 81346 | AMERICAN SOCIETY FOR TESTING AND MATERIALS |
| MS17131-2 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-887-1494
Related Products | NSN 3110-00-887-1494
Technical Data | NSN 3110-00-887-1494
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1010 OR STEEL COMP 4135H OR STEEL COMP 303SE OUTER RING STEEL COMP 1095 OR STEEL COMP 1090 ROLLER |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OUTER RING 66 FED STD 1ST MATERIAL RESPONSE OR SAE ASSN STD 2ND MATERIAL RESPONSE ROLLER |
| STYLE DESIGNATOR | 410 NON-SEPARABLE, OPEN END, DRAWN SHELL |

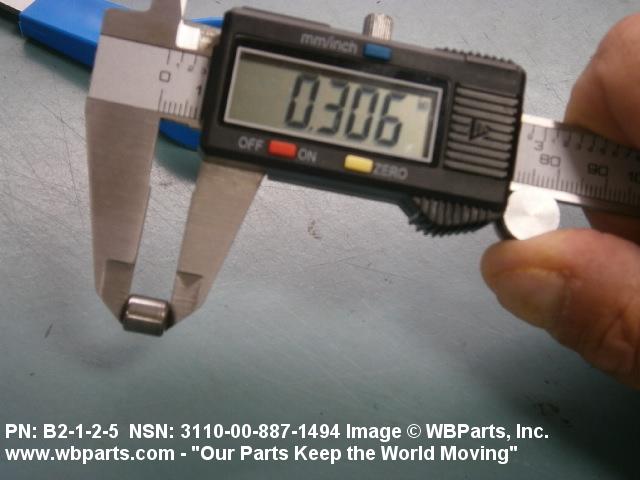

| OVERALL WIDTH | 0.2120 INCHES MINIMUM AND 0.3120 INCHES MAXIMUM |
| BORE DIAMETER | 0.1566 INCHES MINIMUM AND 0.1576 INCHES MAXIMUM |

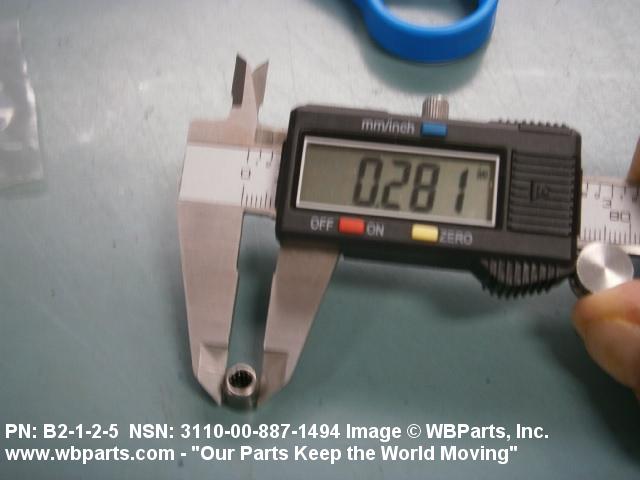

| OVERALL OUTSIDE DIAMETER | 0.2812 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR INDUSTRIAL NEEDLE BEARINGS |
| SURFACE FINISH | GROUND |
| ALIGNMENT TYPE | RIGID |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS17131-2 |
Restrictions/Controls & Freight Information | NSN 3110-00-887-1494
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-887-1494
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
