NSN 3110-00-890-5216 MKSP4AA1591, MKSP4AFS464, MKSP4ATTG73

Product Details | AIRFRAME BALL BEARING

3110-00-890-5216 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.

Part Alternates: MKSP4AA1591, MKSP4AFS464, MKSP4ATTG73, 3187045, 3110-00-890-5216, 00-890-5216, 3110008905216, 008905216

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	29 APR 1972	00-890-5216	00041 ( BEARING, BALL, AIRFRAME )

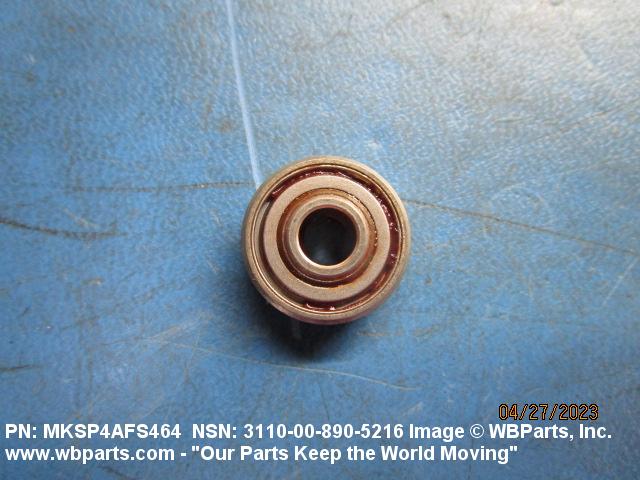

Drawings & Photos | NSN 3110-00-890-5216

Part Number	Request Date	QTY	Origin
MKSP4AFS464	2023-04-103	20	Canada
3110-00-890-5216	2018-02-37	1285	DIBBS
3110-00-890-5216	2017-10-296	1125	DIBBS
3110-00-890-5216	2017-01-04	625	DIBBS
3110-00-890-5216	2015-08-225	738	DIBBS
3110-00-890-5216	2015-08-217	738	DIBBS
MKSP4AFS464	2015-06-159	116	US
MKSP4AFS464	2012-05-124	135	CA
3110-00-890-5216	2010-05-132	815	DIBBS
3110-00-890-5216	2010-05-125	815	DIBBS
3110-00-890-5216	2007-07-201	312	DIBBS
MKSP4AFS464	2007-02-40	263	United States
3110-00-890-5216	2007-02-38	396	DIBBS
3110-00-890-5216	2007-02-37	263	DIBBS

Cross Reference | NSN 3110-00-890-5216

Part Number	Cage Code	Manufacturer
3187045	0ZWK8	MOOG, INC. DBA MOOG ARCFT GROUP TORRANCE OPER
3187045	77068	ALLIED-SIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO
MKSP4AA1591	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
MKSP4AA1591	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
MKSP4AFS464	0FWK8	DIXIE AEROSPACE, LLC
MKSP4AFS464	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
MKSP4AFS464	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
MKSP4ATTG73	43991	FAG BEARINGS CORPORATION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-890-5216

Compare

Related Products | NSN 3110-00-890-5216

3110-00-890-5217, 3110-00-890-5795, 3110-00-890-5796, 3110-00-890-5930, 3110-00-890-6355

Technical Data | NSN 3110-00-890-5216

Characteristic	Specifications
MATERIAL	STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING PLASTIC POLYTETRAFLUOROETHYLENE AND GLASS FIBER SEAL
SURFACE TREATMENT	CADMIUM EXPOSED SURFACES AS MOUNTED
STYLE DESIGNATOR	198 SINGLE ROW SELF ALIGNING SINGLE ROW INNER RING EXTENDED BOTH SIDES

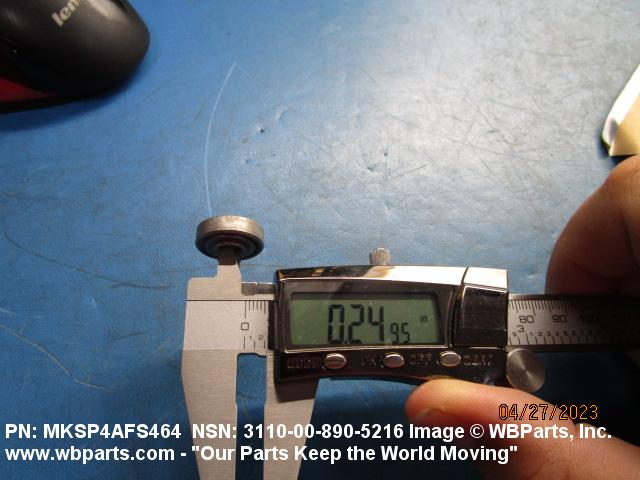

BORE DIAMETER	0.2497 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM

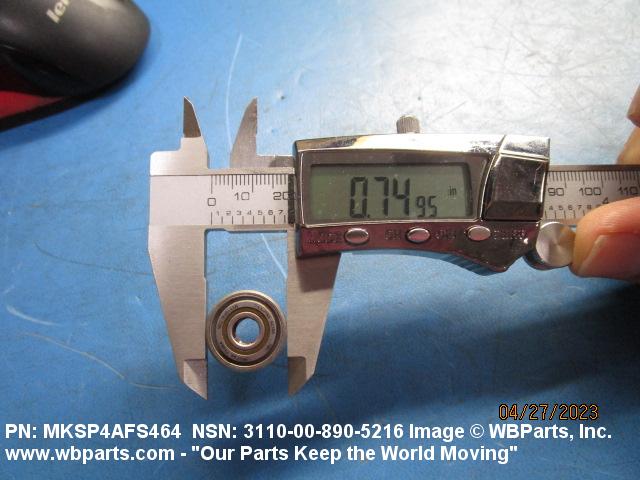

OVERALL OUTSIDE DIAMETER	0.7496 INCHES MINIMUM AND 0.7500 INCHES MAXIMUM

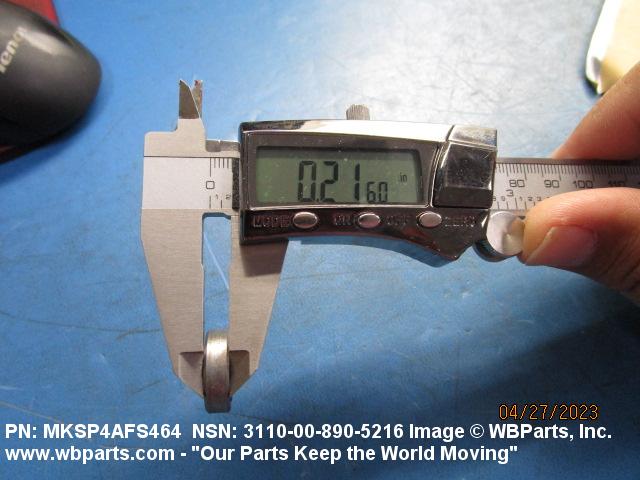

OUTER RING WIDTH	0.2140 INCHES MINIMUM AND 0.2190 INCHES MAXIMUM

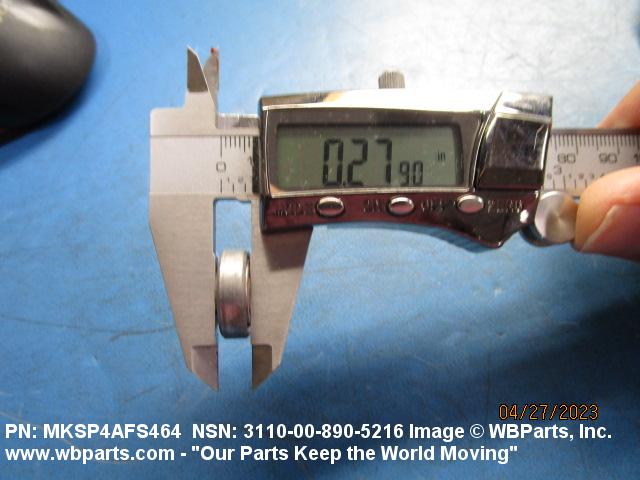

INNER RING WIDTH	0.2785 INCHES MINIMUM AND 0.2810 INCHES MAXIMUM
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE
SEAL QUANTITY	2
BEARING SEAL TYPE	CONTACT
ALIGNMENT TYPE	SELF-ALIGNING
SELF-ALIGNMENT LOCATION	INTERNAL
LOAD DIRECTION	RADIAL
III END ITEM IDENTIFICATION	A-10 ACFT

Restrictions/Controls & Freight Information | NSN 3110-00-890-5216

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	Q	Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.”
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-890-5216

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
