Product Details | CYLINDRICAL ROLLER BEARING
3110-00-900-7489 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Part Alternates: R0125LD5, R105KD, U01005LMRG, U1005LMR, 3110-00-900-7489, 00-900-7489, 3110009007489, 009007489
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1960 | 00-900-7489 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |

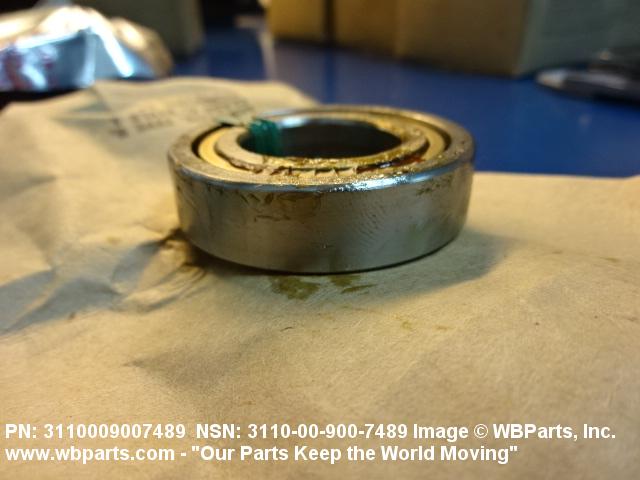

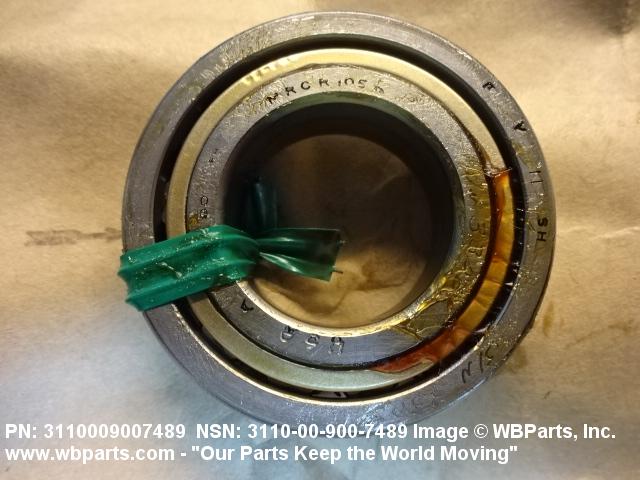

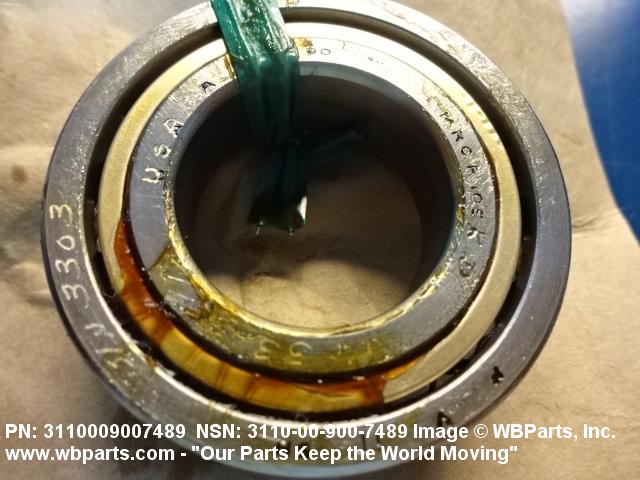

Drawings & Photos | NSN 3110-00-900-7489
Demand History | NSN 3110-00-900-7489
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-900-7489 | 2019-05-13 | 13 | United States |
| 3110-00-900-7489 | 2018-09-03 | 13 | DIBBS |
| 3110-00-900-7489 | 2017-11-07 | 36 | DIBBS |
| 3110-00-900-7489 | 2017-04-10 | 19 | DIBBS |
| 3110-00-900-7489 | 2014-02-14 | 25 | DIBBS |
| 3110-00-900-7489 | 2014-02-06 | 25 | DIBBS |
| 3110-00-900-7489 | 2012-06-12 | 21 | DIBBS |
| 3110-00-900-7489 | 2012-05-07 | 14 | DIBBS |
| R0125LD5 | 2009-07-31 | 100 | US |
| 3110-00-900-7489 | 2009-06-20 | 21 | DIBBS |
| 3110-00-900-7489 | 2009-05-31 | 69 | DIBBS |
| 3110-00-900-7489 | 2009-04-15 | 23 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 3110-00-900-7489
Related Products | NSN 3110-00-900-7489
3110-00-900-7493, 3110-00-900-7818, 3110-00-900-7961, 3110-00-900-9611, 3110-00-900-9613
Technical Data | NSN 3110-00-900-7489
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL INNER RING STEEL OUTER RING COPPER ALLOY RETAINER STEEL ROLLER |

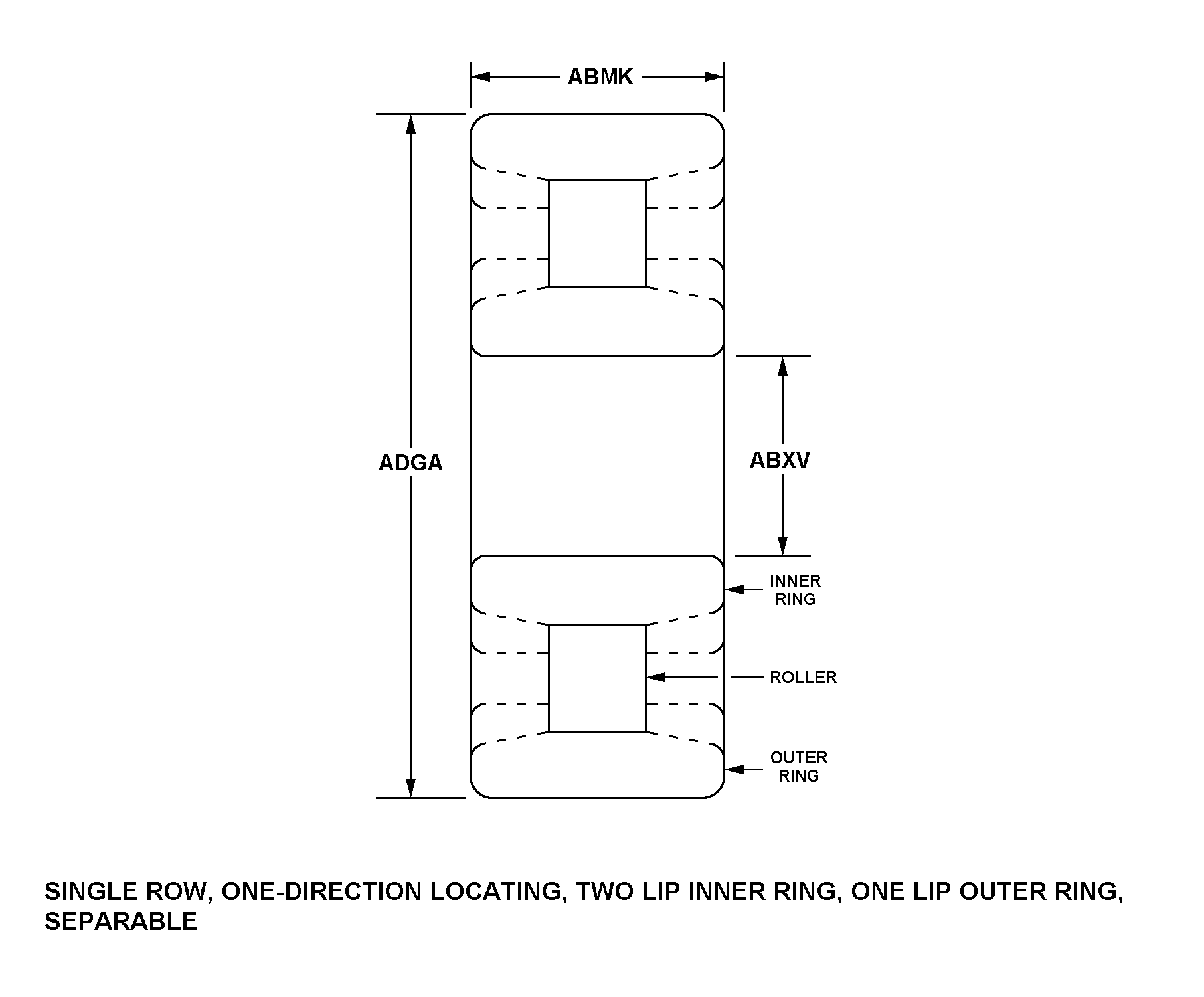

| STYLE DESIGNATOR | 252E SINGLE ROW, ONE-DIRECTION LOCATING, TWO LIP INNER RING, ONE LIP OUTER RING, SEPARABLE |

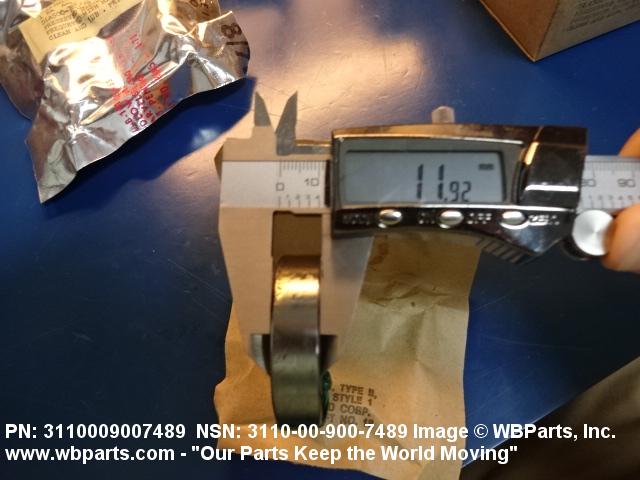

| OVERALL WIDTH | 12.0 MILLIMETERS NOMINAL |

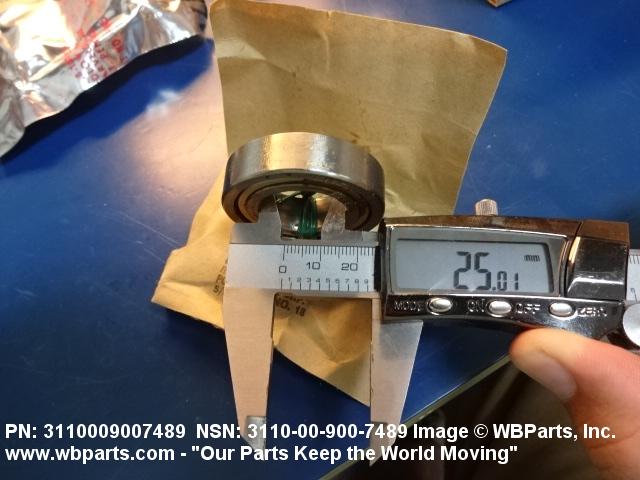

| BORE DIAMETER | 25.0 MILLIMETERS NOMINAL |

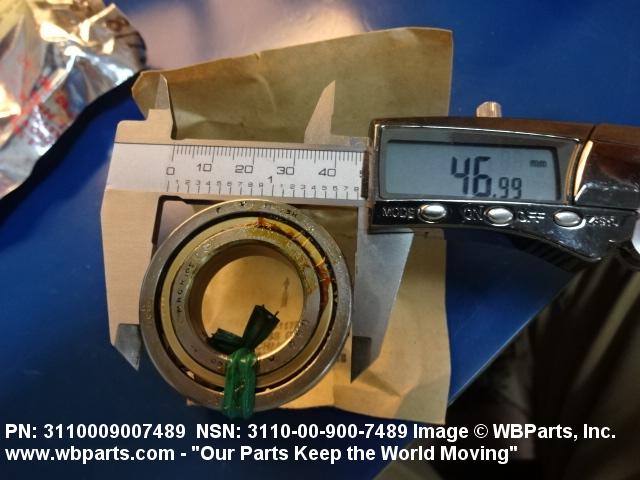

| OVERALL OUTSIDE DIAMETER | 47.0 MILLIMETERS NOMINAL |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOCATING FEATURE | ONE DIRECTION |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
Restrictions/Controls & Freight Information | NSN 3110-00-900-7489
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-900-7489
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
