Product Details | BEARING RETAINING PLATE
3110-00-999-2392 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Part Alternates: 10932784, 3110-00-999-2392, 00-999-2392, 3110009992392, 009992392
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 23 FEB 1966 | 00-999-2392 | 22293 ( PLATE, RETAINING, BEARING ) |
Drawings & Photos | NSN 3110-00-999-2392
Demand History | NSN 3110-00-999-2392
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-999-2392 | 2017-02-06 | 18 | DIBBS |
| 3110-00-999-2392 | 2017-01-05 | 18 | DIBBS |
| 3110-00-999-2392 | 2011-06-13 | 15 | DIBBS |
| 3110-00-999-2392 | 2007-12-07 | 10 | DIBBS |
| 3110-00-999-2392 | 2007-10-01 | 3 | DIBBS |
| 3110-00-999-2392 | 2007-05-24 | 9 | DIBBS |
| 3110-00-999-2392 | 2007-02-09 | 13 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 3110-00-999-2392
Related Products | NSN 3110-00-999-2392
3110-00-999-2394, 3110-00-999-2518, 3110-00-999-2740, 3110-00-999-2827, 3110-00-999-2828
Technical Data | NSN 3110-00-999-2392
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON CAST UNS F33800 OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | B1 ROUND |
| OUTSIDE DIAMETER | 4.875 INCHES NOMINAL |

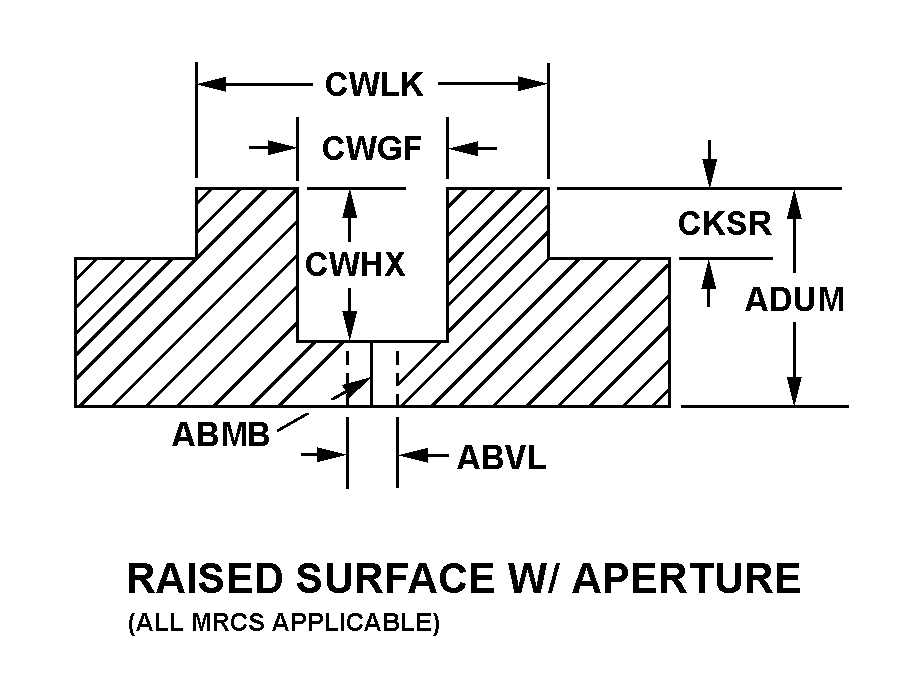

| CROSS-SECTIONAL SHAPE STYLE | C6A RAISED SURFACE WITH APERTURE |
| MINOR THICKNESS | 0.281 INCHES NOMINAL |
| APERTURE DIAMETER | 2.124 INCHES MINIMUM AND 2.126 INCHES MAXIMUM |
| COUNTERBORE DIAMETER | 3.541 INCHES MINIMUM AND 3.542 INCHES MAXIMUM |
| COUNTERBORE DEPTH | 0.813 INCHES NOMINAL |
| OVERALL THICKNESS | 1.094 INCHES NOMINAL |
| OUTSIDE RAISED SURFACE DIAMETER | 4.061 INCHES MINIMUM AND 4.062 INCHES MAXIMUM |
| RAISED SURFACE HEIGHT | 1.219 INCHES NOMINAL |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.412 INCHES MINIMUM AND 0.438 INCHES MAXIMUM |
| MOUNTING HOLE ARRANGEMENT STYLE | D15 SINGLE BOLT HOLE CIRCLE |
| BOLT CIRCLE HOLE QUANTITY | 4 |
| MOUNTING BOLT CIRCLE DIAMETER | 4.750 INCHES NOMINAL |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 10932784 |
Restrictions/Controls & Freight Information | NSN 3110-00-999-2392
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | BE | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
