NSN 3110-01-010-2481 MS276474A, MS27647-4A, AS27647
Product Details | AIRFRAME BALL BEARING
3110-01-010-2481 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.
Part Alternates: MS276474A, MS27647-4A, AS27647, DW4K2FS464, 10107434 , 3110-01-010-2481, 01-010-2481, 3110010102481, 010102481
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 25 SEP 1975 | 01-010-2481 | 00041 ( BEARING, BALL, AIRFRAME ) |

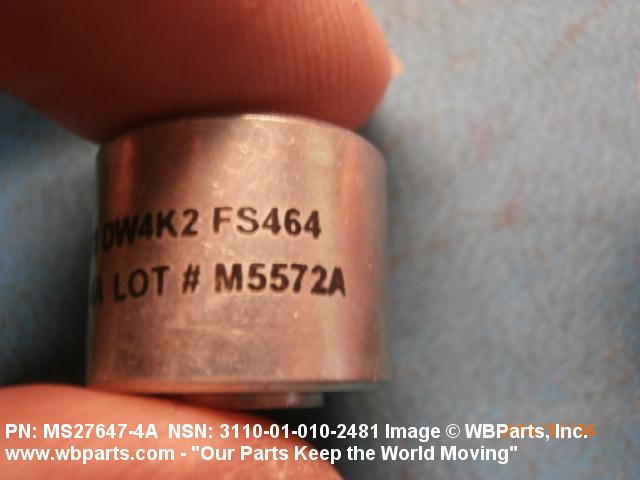

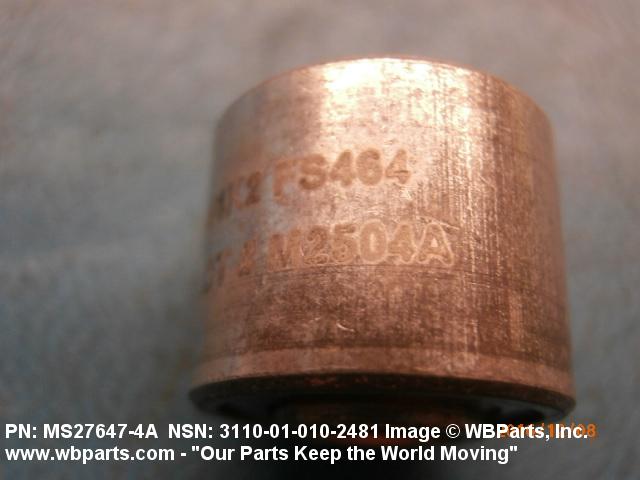

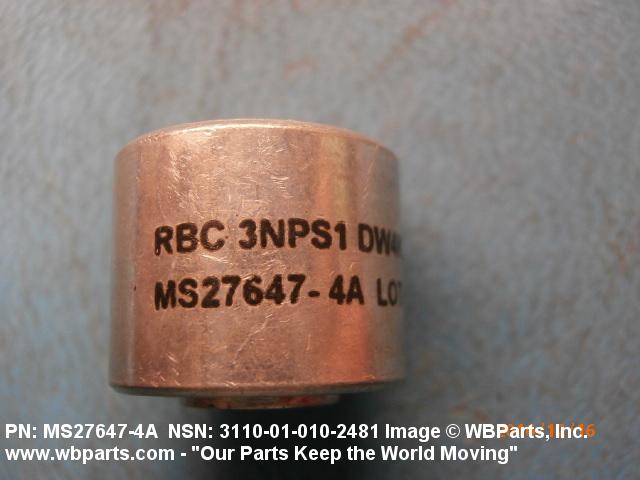

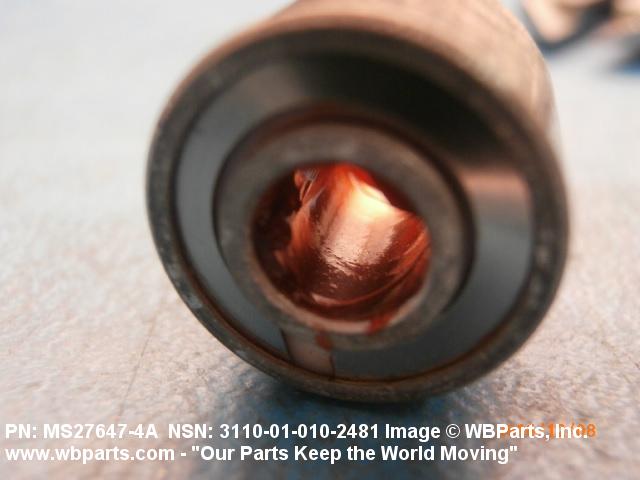

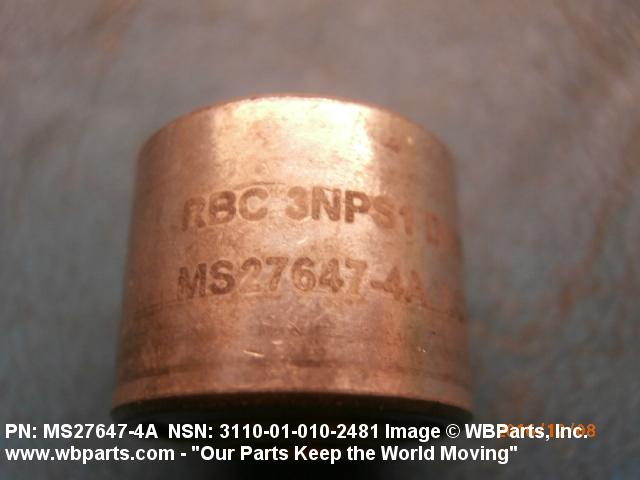

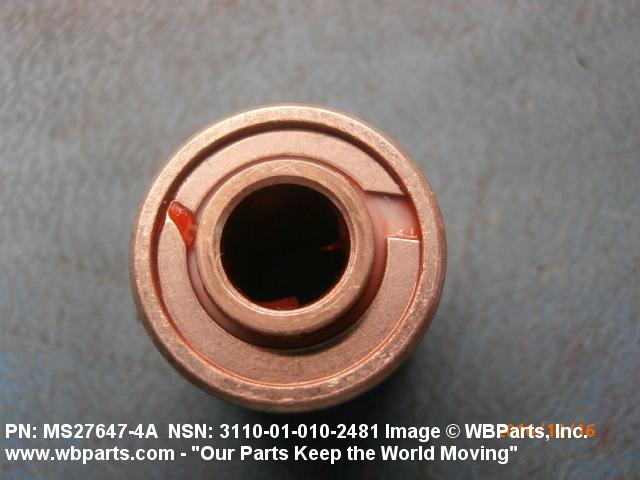

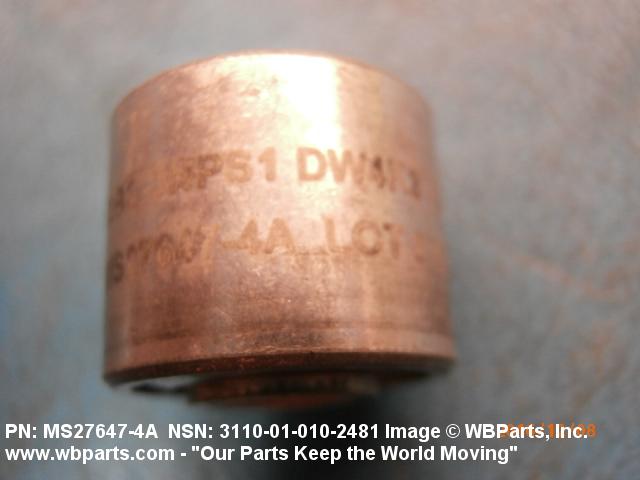

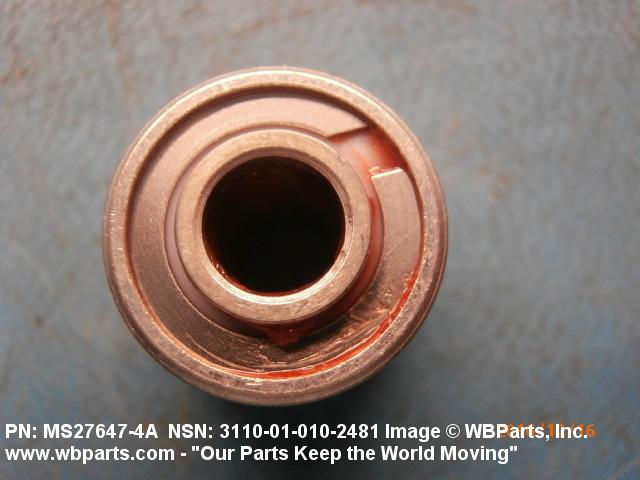

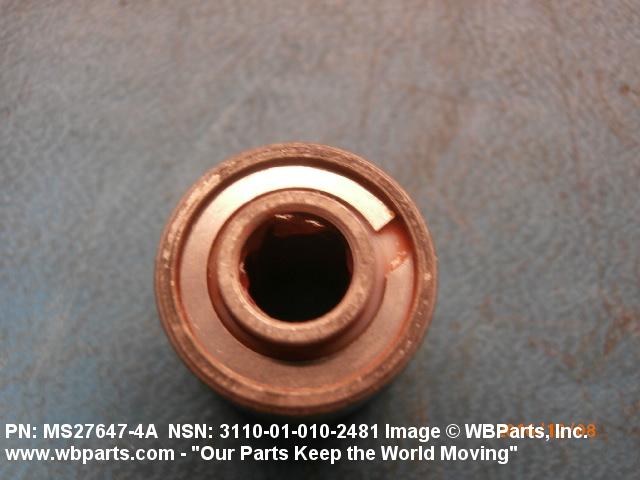

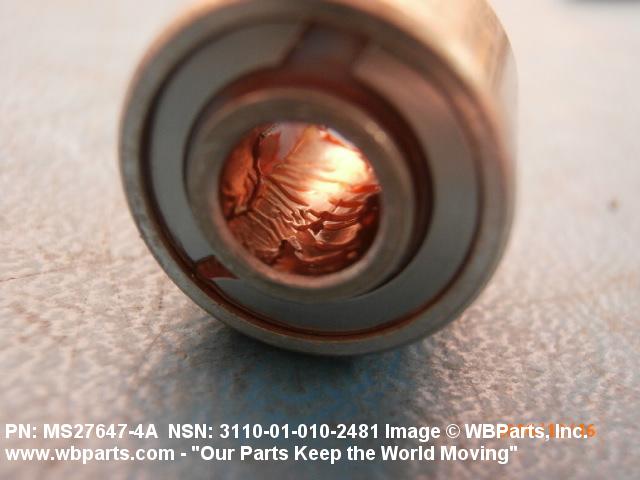

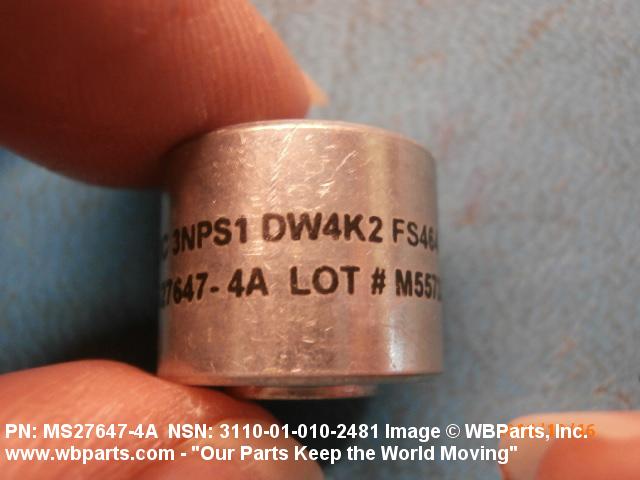

Drawings & Photos | NSN 3110-01-010-2481
Demand History | NSN 3110-01-010-2481
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| DW4K2FS464 | 2023-10-275 | 4 | Germany |
| MS276474A | 2023-10-275 | 4 | Germany |
| MS276474A | 2017-04-102 | 50 | United States |
| 3110-01-010-2481 | 2017-04-102 | 25 | United States |
| MS276474A | 2017-02-52 | 60 | United States |
| MS276474A | 2016-12-341 | 50 | United States |
| 3110-01-010-2481 | 2015-11-331 | 384 | DIBBS |
| 3110-01-010-2481 | 2015-11-323 | 384 | DIBBS |
| 3110-01-010-2481 | 2015-07-195 | 214 | DIBBS |
| 3110-01-010-2481 | 2013-08-237 | 243 | DIBBS |
| 3110-01-010-2481 | 2013-08-231 | 189 | DIBBS |
| 3110-01-010-2481 | 2013-02-51 | 57 | DIBBS |
| 3110-01-010-2481 | 2012-03-89 | 65 | DIBBS |
| 3110-01-010-2481 | 2012-03-67 | 52 | US |
| 3110-01-010-2481 | 2012-02-47 | 20 | US |
| MS276474A | 2011-03-62 | 765 | United States |
| 3110-01-010-2481 | 2010-06-174 | 96 | DIBBS |
| 3110-01-010-2481 | 2010-04-95 | 19 | DIBBS |
| 3110-01-010-2481 | 2009-11-308 | 6 | DIBBS |
| 3110-01-010-2481 | 2009-07-202 | 14 | DIBBS |
| 3110-01-010-2481 | 2009-05-141 | 32 | DIBBS |
| 3110-01-010-2481 | 2008-04-119 | 44 | DIBBS |
| 3110-01-010-2481 | 2007-10-299 | 2 | US |
| 3110-01-010-2481 | 2007-10-278 | 20 | DIBBS |
Cross Reference | NSN 3110-01-010-2481
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS27647 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| DW4K2FS464 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| DW4K2FS464 | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| MS27647-4A | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS27647-4A | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-010-2481
Related Products | NSN 3110-01-010-2481
Technical Data | NSN 3110-01-010-2481

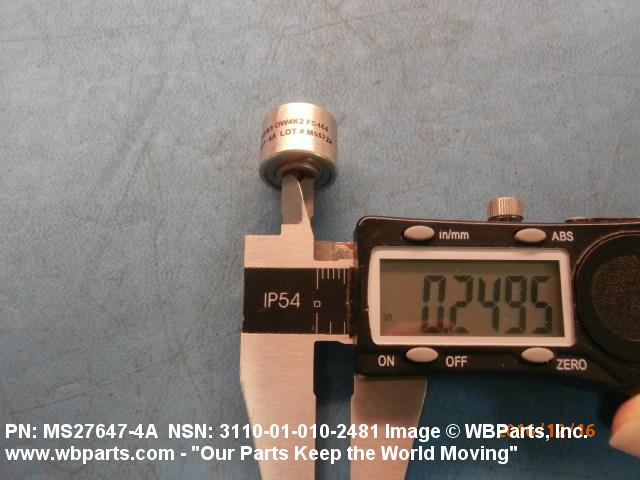

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING PLASTIC SEAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 3652 ASSN STD SINGLE MATERIAL RESPONSE BALL AMS 6440 ASSN STD SINGLE MATERIAL RESPONSE INNER RING AMS 6440 ASSN STD SINGLE MATERIAL RESPONSE OUTER RING |
| STYLE DESIGNATOR | 204 DOUBLE ROW |
| BORE DIAMETER | 0.2495 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |

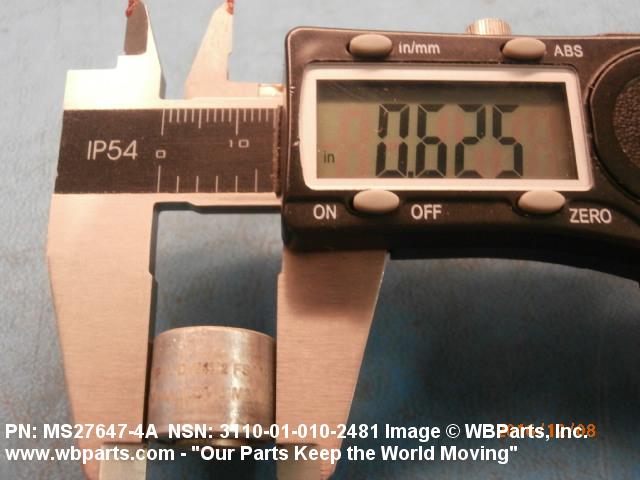

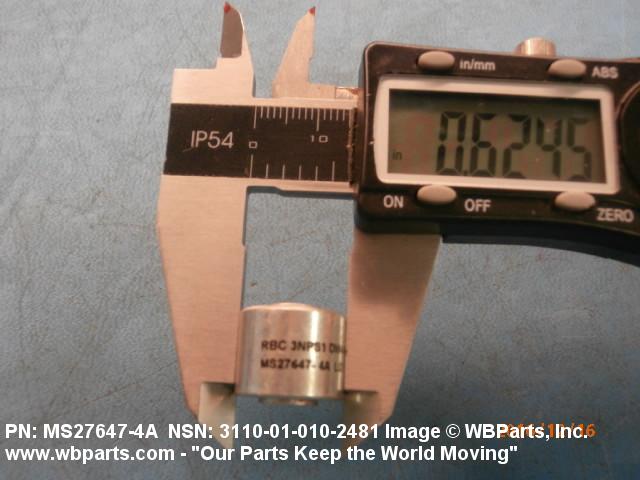

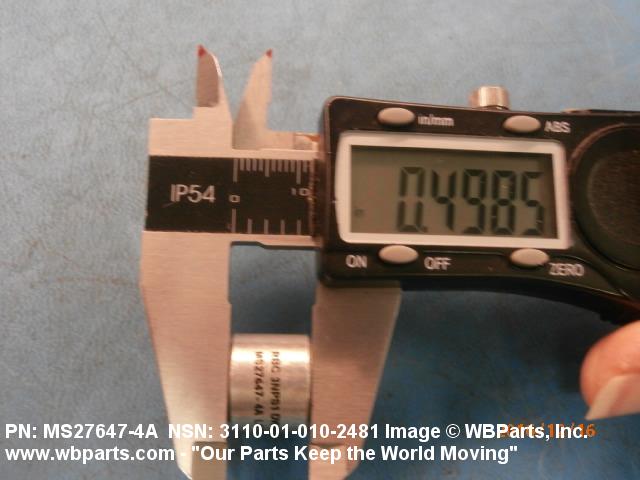

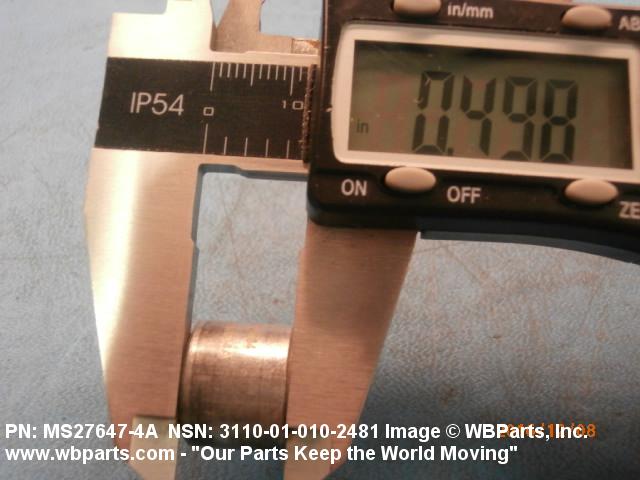

| OVERALL OUTSIDE DIAMETER | 0.6245 INCHES MINIMUM AND 0.6250 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.4950 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM |

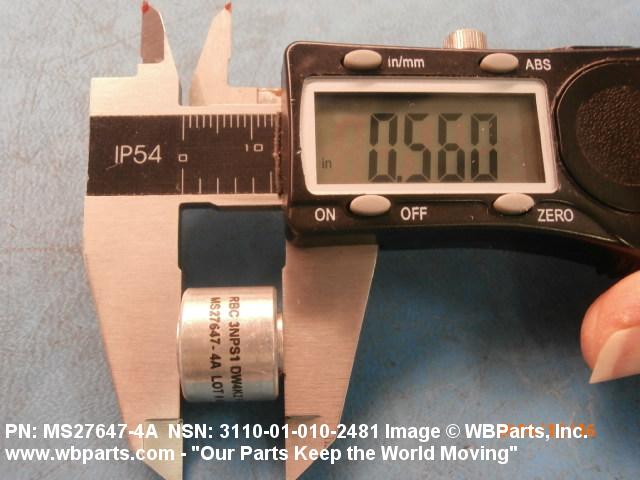

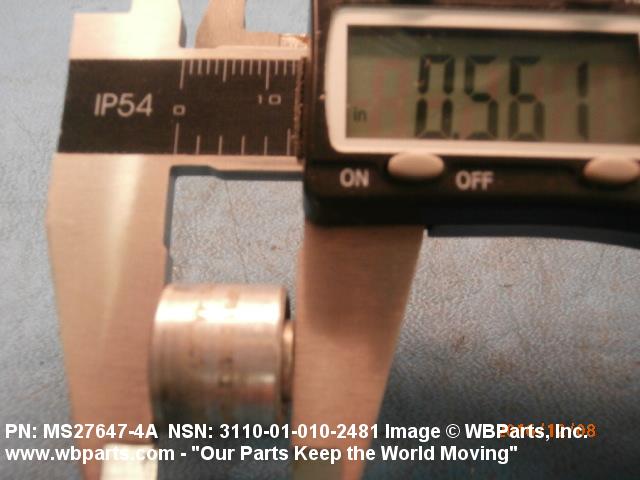

| INNER RING WIDTH | 0.5570 INCHES MINIMUM AND 0.5620 INCHES MAXIMUM |
