NSN 3110-01-031-0808 MS2764645, MS27646-45, MB545DD

Product Details | AIRFRAME BALL BEARING

3110-01-031-0808 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.

Part Alternates: MS2764645, MS27646-45, MB545DD, MB545DDAXXXX, MB545DDFS428, MB545DDFS464, 3110-01-031-0808, 01-031-0808, 3110010310808, 010310808

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	18 NOV 1976	01-031-0808	00041 ( BEARING, BALL, AIRFRAME )

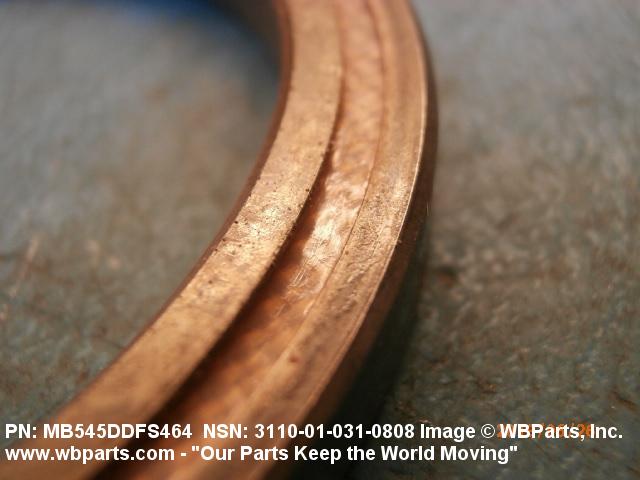

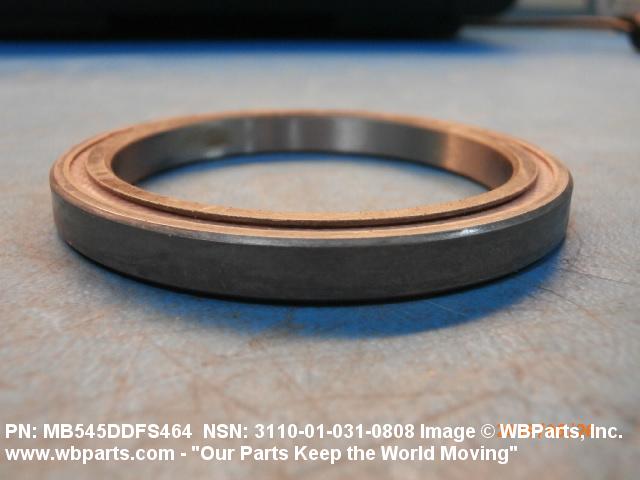

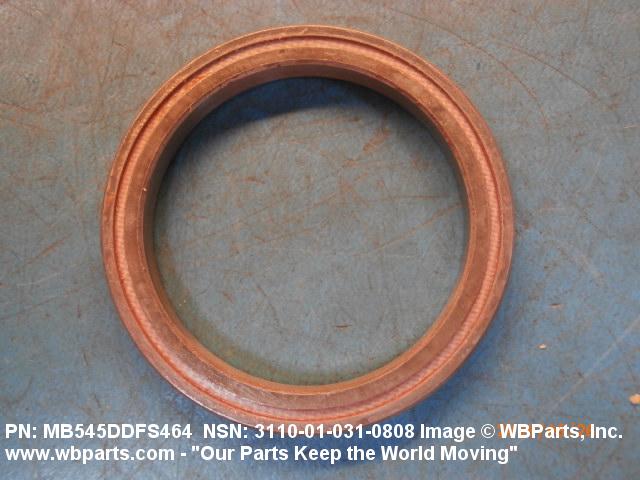

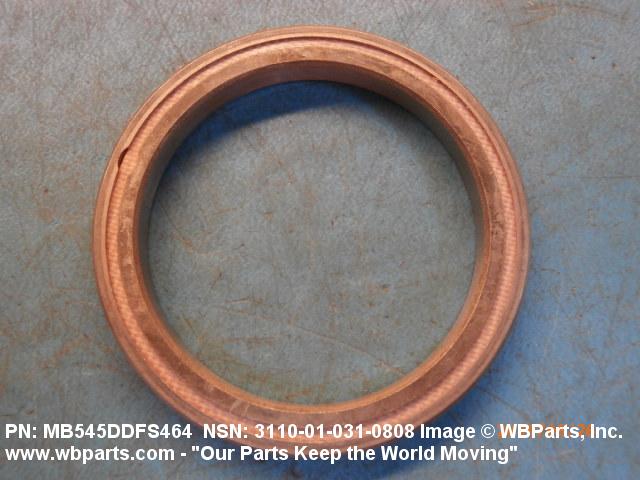

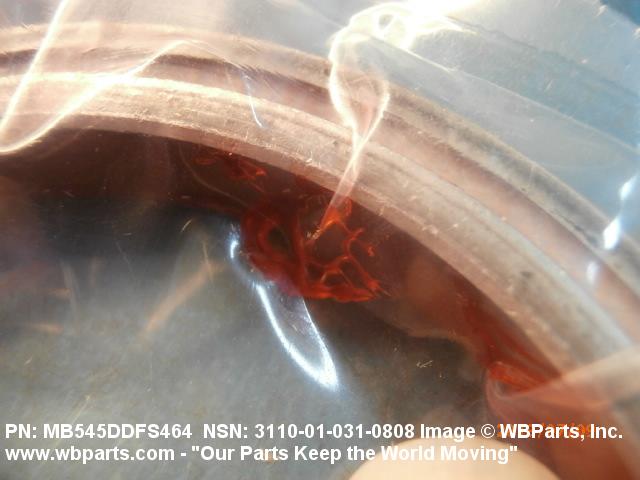

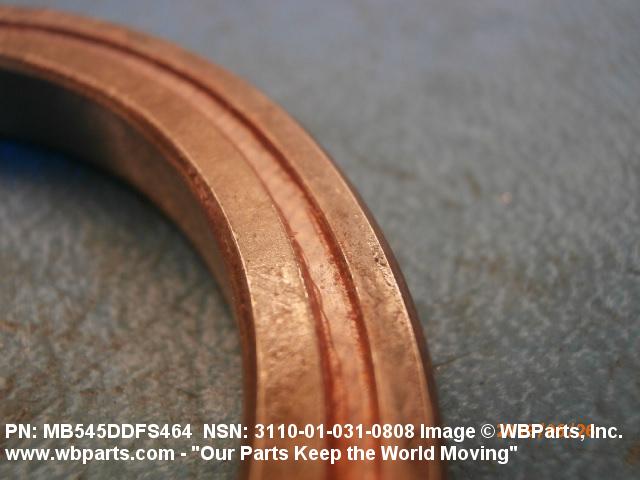

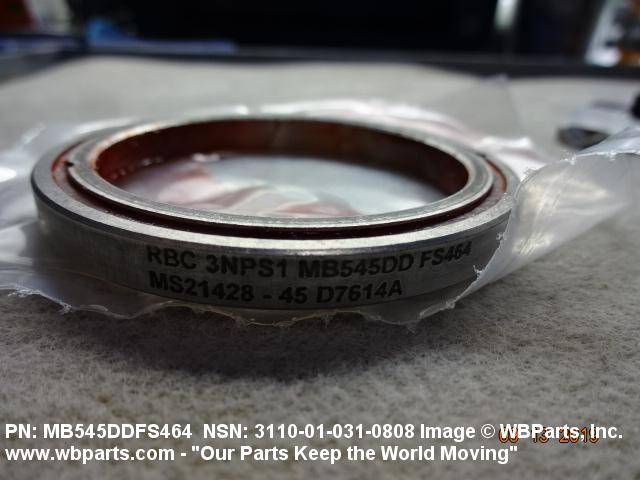

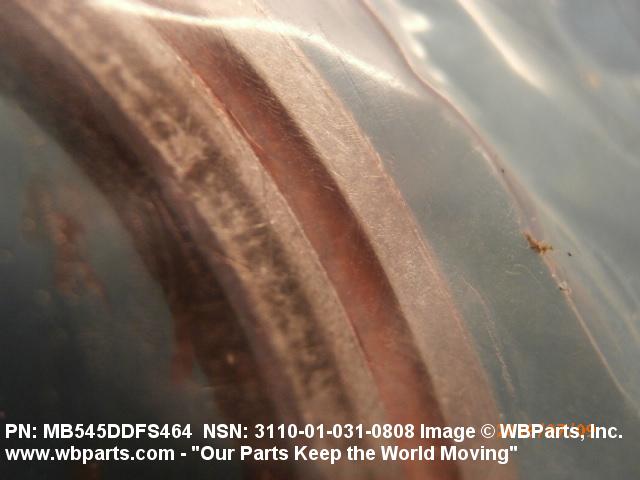

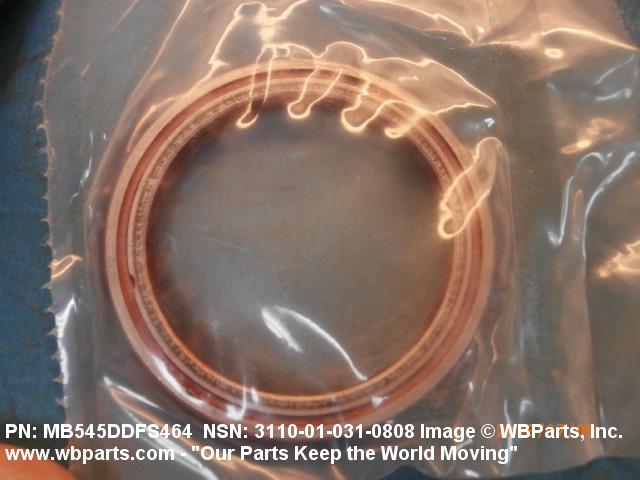

Drawings & Photos | NSN 3110-01-031-0808

Part Number	Request Date	QTY	Origin
3110-01-031-0808	2025-10-292	35	DIBBS
MS2764645	2025-02-42	7	Canada
3110-01-031-0808	2024-10-291	40	DIBBS
3110-01-031-0808	2024-10-283	40	DIBBS
3110-01-031-0808	2024-06-156	29	DIBBS
3110-01-031-0808	2024-05-144	29	DIBBS
3110-01-031-0808	2021-04-113	8	US
MB545DDFS464	2020-09-255	2	United States
MB545DDFS464	2020-06-170	2	United States
MB545DDFS464	2020-06-168	2	United States
MB545DDFS464	2020-04-120	2	United States
MB545DDFS464	2020-02-50	2	United States
MB545DDFS464	2020-02-44	2	United States
MB545DDFS464	2019-10-303	17	United States
MB545DDFS464	2019-09-248	2	United States
MB545DDFS464	2019-08-234	2	United States
MB545DDFS464	2019-06-178	4	United States
MB545DDFS464	2019-06-170	2	United States
3110-01-031-0808	2018-05-136	1	DIBBS-RFPs
MS2764645	2016-07-201	16	US
3110-01-031-0808	2014-07-183	6	TW
3110-01-031-0808	2013-10-295	30	US
3110-01-031-0808	2012-05-149	1	US
3110-01-031-0808	2012-02-51	2	MANUAL
MS27646-45	2012-02-51	2	US
3110-01-031-0808	2011-05-143	25	US
MS2764645	2009-06-167	2	US
MS2764645	2008-09-248	50	US
3110-01-031-0808	2008-04-112	2	DIBBS
3110-01-031-0808	2008-03-73	100	United States
3110-01-031-0808	2008-03-66	1	DE
MS2764645	2008-02-57	15	United States
MS2764645	2007-04-110	1	US
3110-01-031-0808	2007-02-53	4	Papua New Guinea

Cross Reference | NSN 3110-01-031-0808

Part Number	Cage Code	Manufacturer
MB545DD	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
MB545DDAXXXX	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
MB545DDFS428	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
MB545DDFS464	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
MS27646-45	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS27646-45	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-01-031-0808

Compare

Related Products | NSN 3110-01-031-0808

3110-01-031-0937, 3110-01-031-1058, 3110-01-031-1059, 3110-01-031-1280, 3110-01-031-1504

Technical Data | NSN 3110-01-031-0808

Characteristic	Specifications
MATERIAL	GLASS FIBER AND PLASTIC POLYTETRAFLUOROETHYLENE SEAL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 1,CL 2 FED SPEC SINGLE MATERIAL RESPONSE ALL EXTERNAL/EXPOSED METAL SURFACES
SURFACE TREATMENT	CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES
STYLE DESIGNATOR	202 SINGLE ROW, TORQUE TUBE TYPE, WITH OR WITHOUT CLOSURE

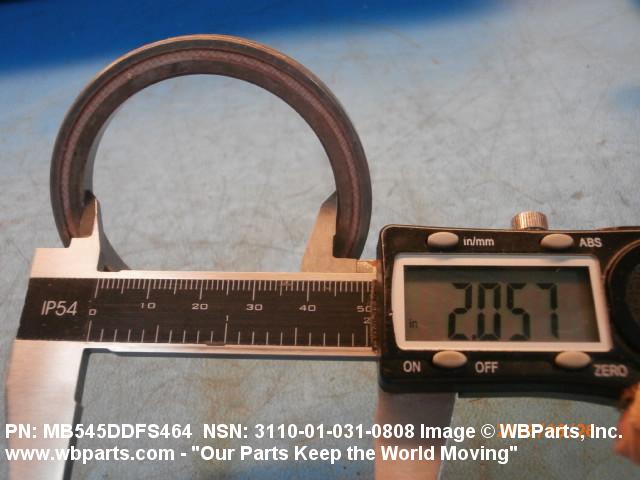

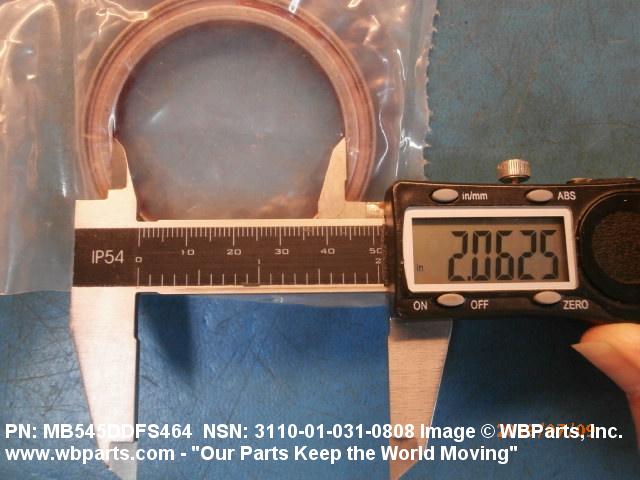

BORE DIAMETER	2.0615 INCHES MINIMUM AND 2.0635 INCHES MAXIMUM

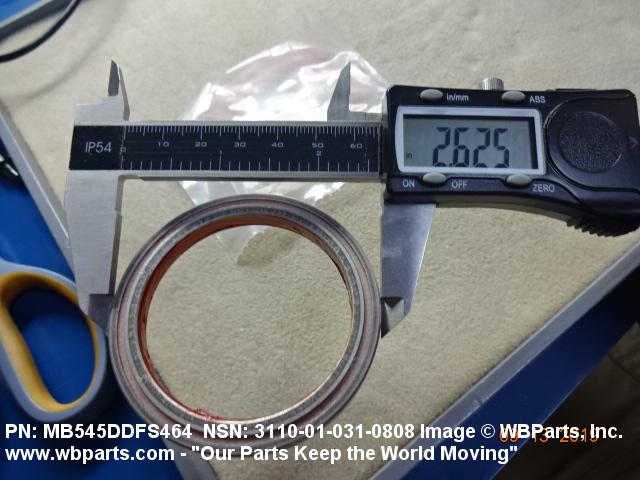

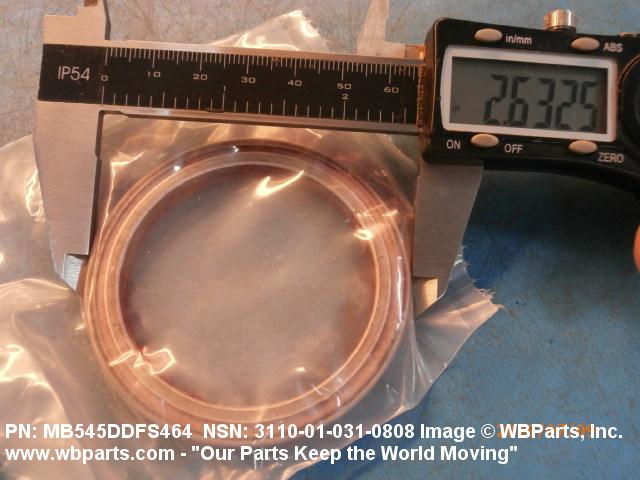

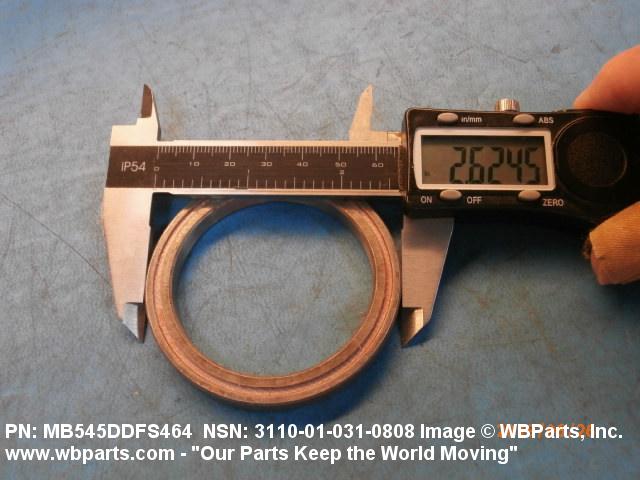

OVERALL OUTSIDE DIAMETER	2.6243 INCHES MINIMUM AND 2.6250 INCHES MAXIMUM

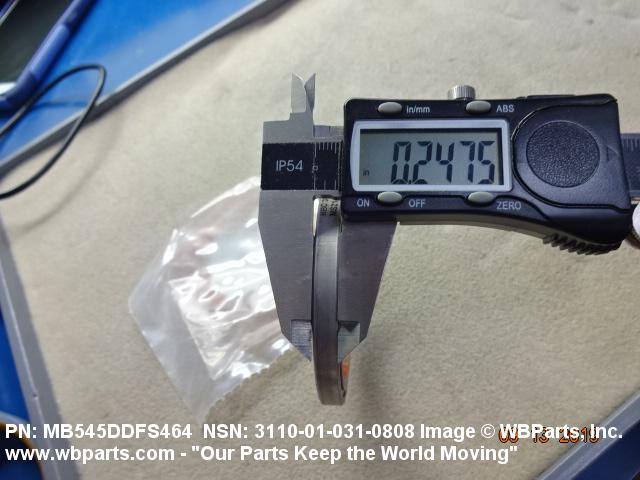

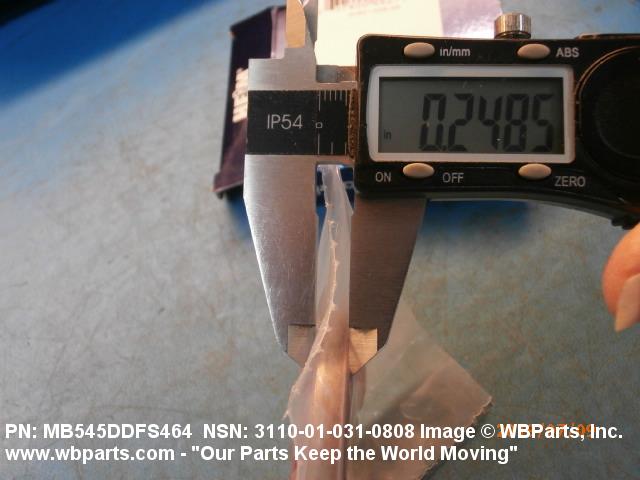

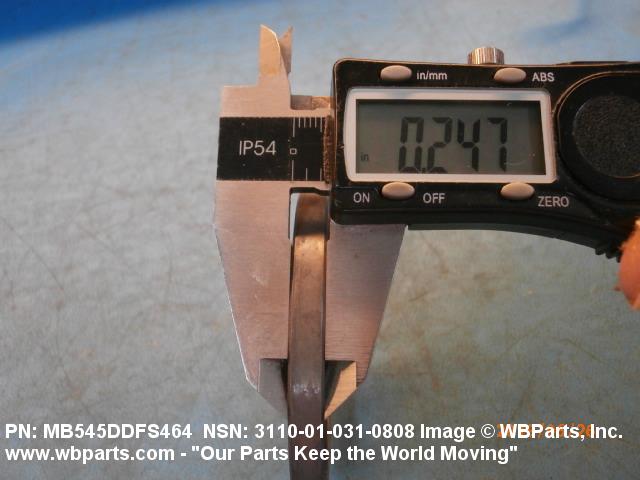

OUTER RING WIDTH	0.2450 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM

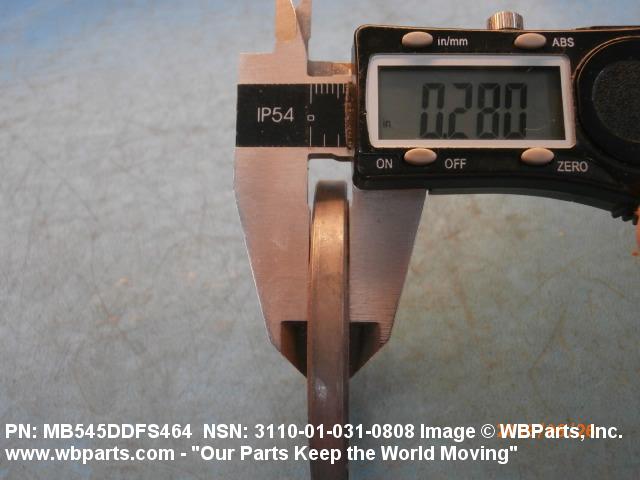

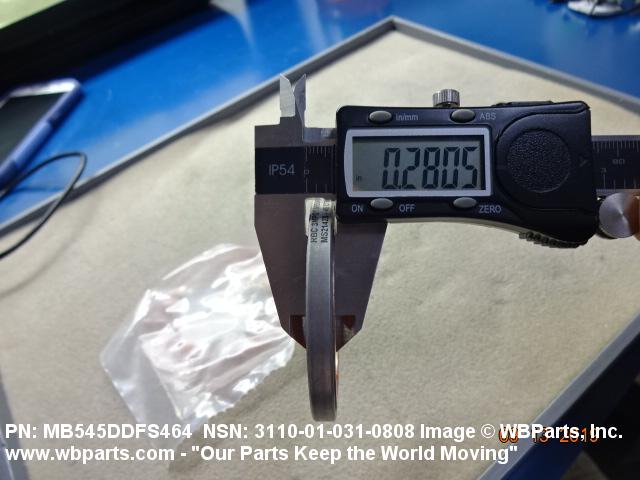

INNER RING WIDTH	0.2785 INCHES MINIMUM AND 0.2810 INCHES MAXIMUM
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE
SEAL QUANTITY	2
BEARING SEAL TYPE	CONTACT
LOAD DIRECTION	RADIAL
SPECIAL FEATURES	0.0001 IN. MIN 0.0005 IN. MAX RADIAL CLEARANCE

Restrictions/Controls & Freight Information | NSN 3110-01-031-0808

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-01-031-0808

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
