NSN 3110-01-044-7095 U537458, 01-044-7095, 010447095
Product Details | RADIAL AND THRUST ROLLER BEARING
3110-01-044-7095 A bearing consisting of a roller radial unit and a roller thrust unit. The inner ring of the radial unit is integrally one ring of the thrust unit. Excludes items in which the same row of rollers accommodates both radial and end thrust.
Part Alternates: U537458, 3110-01-044-7095, 01-044-7095, 3110010447095, 010447095
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 18 JUL 1977 | 01-044-7095 | 18037 ( BEARING, ROLLER, RADIAL AND THRUST ) |

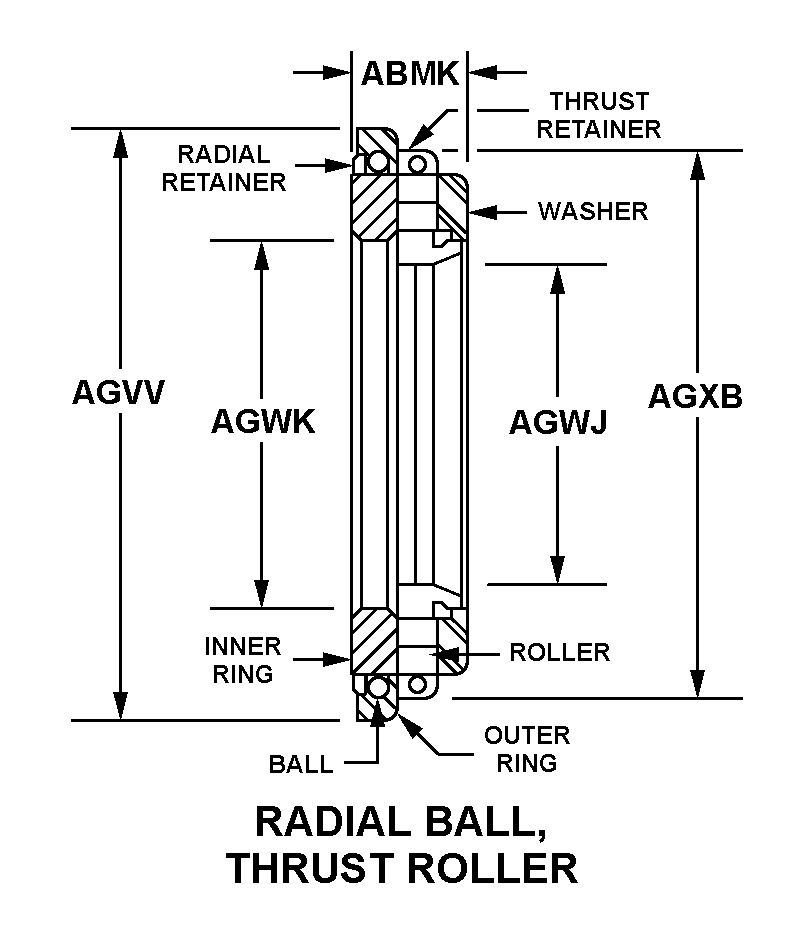

Drawings & Photos | NSN 3110-01-044-7095
Demand History | NSN 3110-01-044-7095
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-044-7095 | 2012-11-313 | 11 | DIBBS |
| 3110-01-044-7095 | 2012-08-229 | 3 | DIBBS |
| 3110-01-044-7095 | 2012-05-136 | 4 | DIBBS |
| 3110-01-044-7095 | 2012-04-94 | 7 | DIBBS |
| 3110-01-044-7095 | 2012-02-38 | 8 | DIBBS |
| 3110-01-044-7095 | 2011-11-307 | 3 | DIBBS |
| 3110-01-044-7095 | 2011-10-278 | 1 | DIBBS |
| 3110-01-044-7095 | 2011-09-268 | 1 | DIBBS |
Cross Reference | NSN 3110-01-044-7095
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| U537458 | 78943 | TRIUMPH THERMAL SYSTEMS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-044-7095
Related Products | NSN 3110-01-044-7095
Technical Data | NSN 3110-01-044-7095
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 3003 OVERALL |
| STYLE DESIGNATOR | 320 RADIAL BALL, THRUST ROLLER |
| OVERALL WIDTH | 0.3750 INCHES NOMINAL |
| OUTER RING OUTSIDE DIAMETER | 5.5300 INCHES NOMINAL |
| BORE SMALLEST DIAMETER | 5.0300 INCHES NOMINAL |
| LARGEST BORE DIAMETER | 5.2600 INCHES NOMINAL |
| THRUST UNIT OUTSIDE DIAMETER | 5.4600 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | ACFT F15 |
| MANUFACTURERS CODE | 78943 |
| DESIGN CONTROL REFERENCE | U537458 |
Restrictions/Controls & Freight Information | NSN 3110-01-044-7095
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-044-7095
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
