NSN 3110-01-065-8760 3C25006101, 3C25006-101, 01-065-8760
Product Details | BEARING RETAINING PLATE
3110-01-065-8760 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Part Alternates: 3C25006101, 3C25006-101, 3110-01-065-8760, 01-065-8760, 3110010658760, 010658760
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 24 SEP 1978 | 01-065-8760 | 22293 ( PLATE, RETAINING, BEARING ) |
Drawings & Photos | NSN 3110-01-065-8760
Cross Reference | NSN 3110-01-065-8760
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3C25006-101 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-01-065-8760
Technical Data | NSN 3110-01-065-8760
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM OVERALL |
| SURFACE TREATMENT | ALUMINUM ALLOY OVERALL |

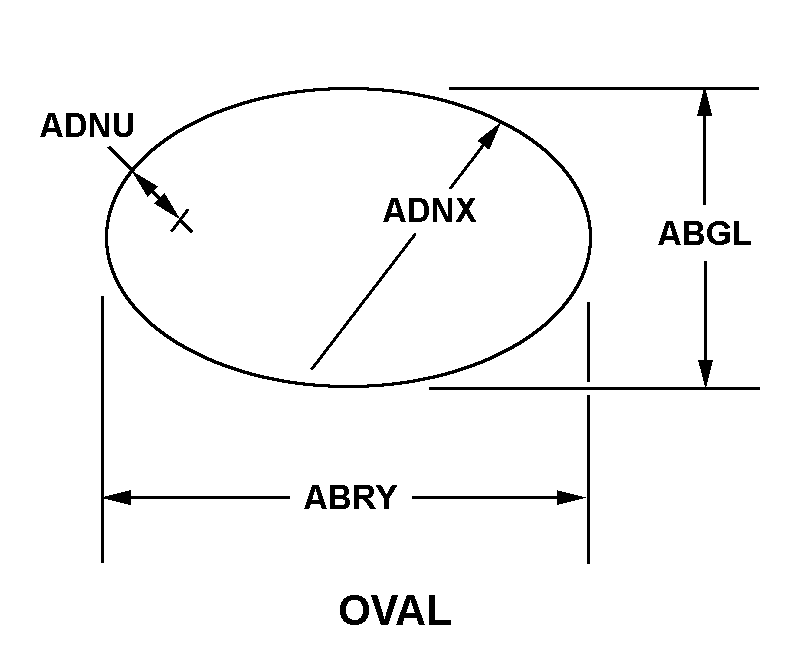

| STYLE DESIGNATOR | B28 OVAL |
| WIDTH | 2.075 INCHES NOMINAL |
| LENGTH | 3.185 INCHES NOMINAL |
| CORNER RADIUS | 1.560 INCHES NOMINAL |
| BODY RADIUS | 1.825 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | C1B FLAT WITHOUT APERTURE |
| OVERALL THICKNESS | 1.310 INCHES NOMINAL |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.198 INCHES MINIMUM AND 0.204 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | C-141 ACFT |
| MANUFACTURERS CODE | 98897 |
| DESIGN CONTROL REFERENCE | 3C25006-101 |
Restrictions/Controls & Freight Information | NSN 3110-01-065-8760
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
