NSN 3110-01-092-3470 C40000, C-40000, 01-092-3470
Product Details | TAPERED ROLLER BEARING
3110-01-092-3470 A cylindrical device in which the inner cone or outer cup turns upon a single or double row of tapered hardened rollers which roll easily in a race, thus minimizing friction and designed to carry a radial load and capable of sustaining axial thrust. Excludes BEARING, ROLLER, THRUST.
Part Alternates: C40000, C-40000, 3110-01-092-3470, 01-092-3470, 3110010923470, 010923470
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 23 MAR 1980 | 01-092-3470 | 00021 ( BEARING, ROLLER, TAPERED ) |
Drawings & Photos | NSN 3110-01-092-3470
Cross Reference | NSN 3110-01-092-3470
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C-40000 | 60038 | TIMKEN CORPORATION, THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-01-092-3470
Technical Data | NSN 3110-01-092-3470
| Characteristic | Specifications |
|---|---|

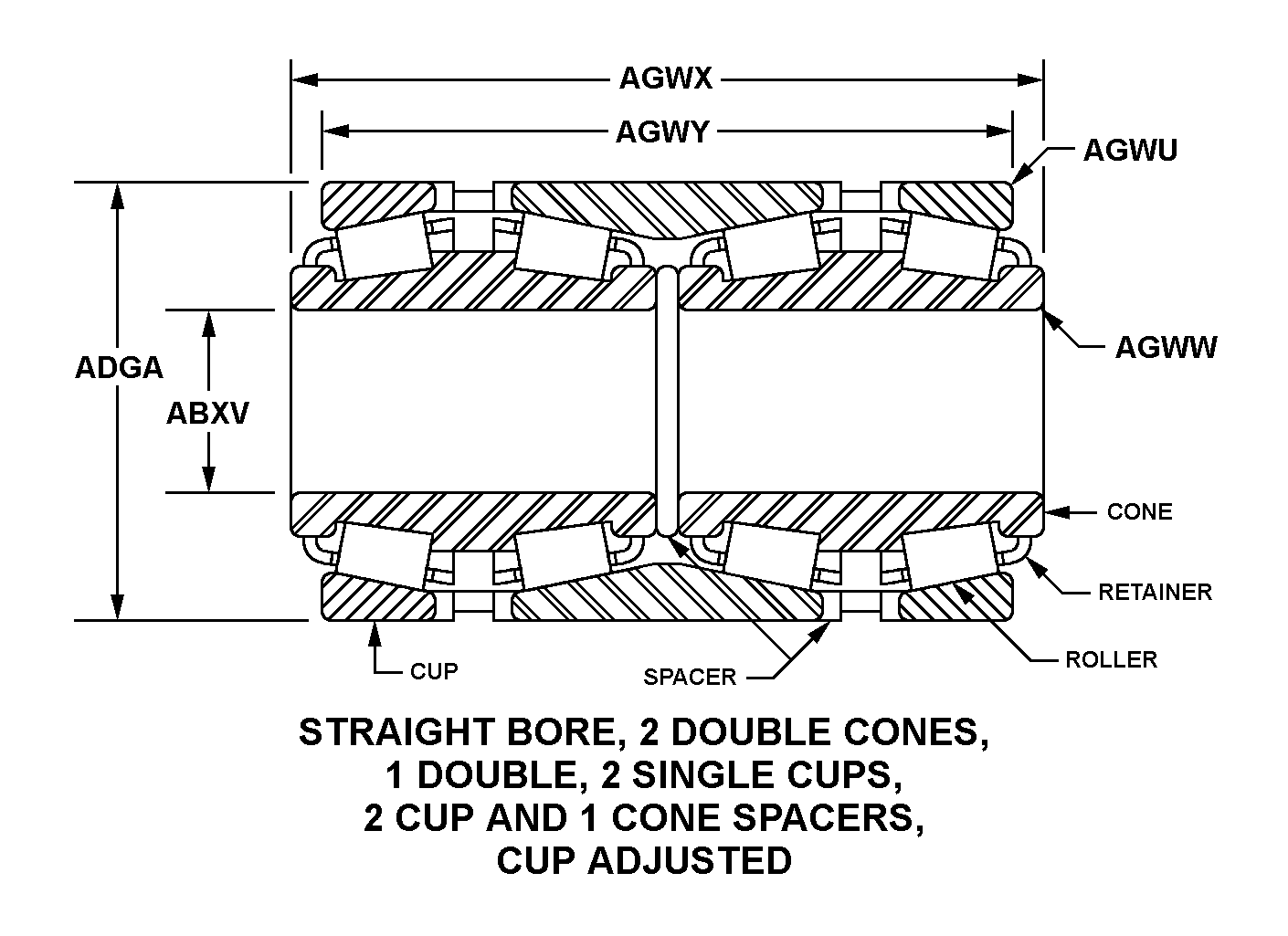

| STYLE DESIGNATOR | 384 STRAIGHT BORE, 2 DOUBLE CONES, 1 DOUBLE, 2 SINGLE CUPS, 2 CUP AND 1 CONE SPACERS, CUP ADJUSTED |
| OVERALL WIDTH | 7.3750 INCHES NOMINAL |
| BORE DIAMETER | 7.5000 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 10.5000 INCHES NOMINAL |
| BACKFACE CORNER RADIUS | 0.1300 INCHES NOMINAL |
| CONE WIDTH | 7.3750 INCHES NOMINAL |
| CUP WIDTH | 7.4375 INCHES NOMINAL |
| SPECIAL FEATURES | CUP WIDTH BENCH LATERAL OF 0.1200 IN. |
Restrictions/Controls & Freight Information | NSN 3110-01-092-3470
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
