3110-01-103-2413 - AIRFRAME ROLLER BEARING, A44788, A-44788, DAS626A1501

Product Details | AIRFRAME ROLLER BEARING

3110-01-103-2413 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened ROLLER, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, ROLLER, CYLINDRICAL.

Part Alternates: A44788, A-44788, DAS626A1501, DAS6-26A1-501, DAS626A501, DAS6-26A-501, YD146, 3110-01-103-2413, 01-103-2413, 3110011032413, 011032413

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	10 NOV 1980	01-103-2413	00046 ( BEARING, ROLLER, AIRFRAME )

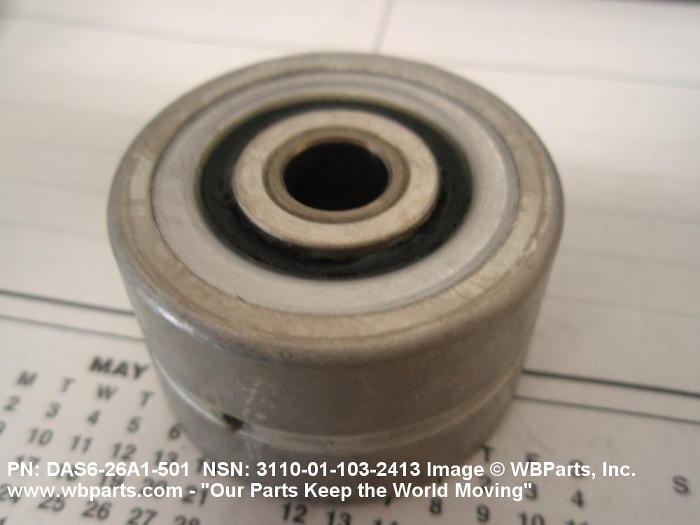

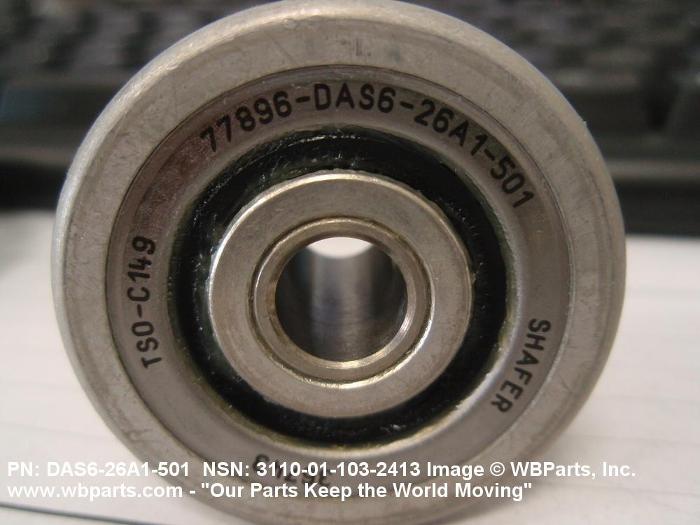

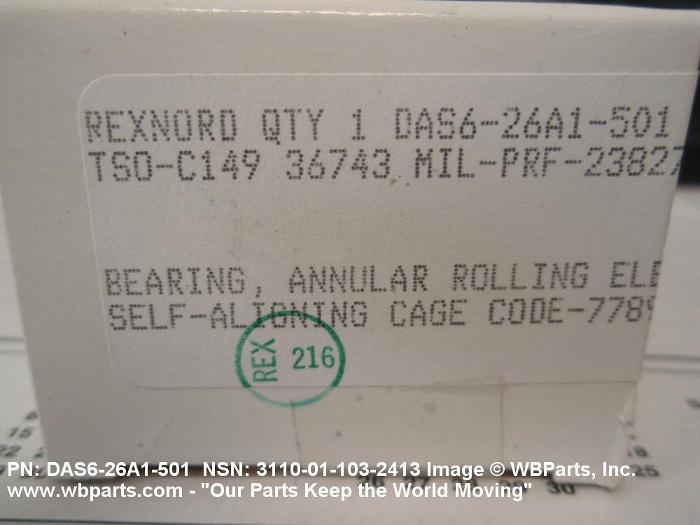

Drawings & Photos | NSN 3110-01-103-2413

Part Number	Request Date	QTY	Origin
3110-01-103-2413	2022-06-28	56	Malaysia
3110-01-103-2413	2022-02-01	2	United States
3110-01-103-2413	2021-10-29	56	Malaysia
3110-01-103-2413	2021-10-29	56	Malaysia
3110-01-103-2413	2021-05-30	8	MY
DAS626A1501	2021-05-28	8	Malaysia
DAS626A1501	2021-05-27	8	Malaysia
3110-01-103-2413	2018-11-09	1	DIBBS-RFPs
3110-01-103-2413	2013-09-16	1	DIBBS-RFPs
3110-01-103-2413	2013-07-09	164	DIBBS
3110-01-103-2413	2013-05-06	208	DIBBS
3110-01-103-2413	2012-11-13	293	DIBBS
3110-01-103-2413	2012-07-16	410	DIBBS
3110-01-103-2413	2012-04-09	208	DIBBS
3110-01-103-2413	2011-12-14	157	DIBBS
3110-01-103-2413	2011-08-18	74	DIBBS
DAS626A1501	2011-07-25	1	United States
3110-01-103-2413	2011-06-08	265	DIBBS
3110-01-103-2413	2011-02-11	5	United States
3110-01-103-2413	2011-02-01	138	DIBBS
3110-01-103-2413	2011-01-18	214	DIBBS
3110-01-103-2413	2010-12-16	669	DIBBS
3110-01-103-2413	2010-11-30	264	DIBBS
3110-01-103-2413	2010-11-15	264	DIBBS
3110-01-103-2413	2010-09-24	197	DIBBS
3110-01-103-2413	2010-09-14	463	DIBBS
3110-01-103-2413	2010-09-07	500	DIBBS
3110-01-103-2413	2010-07-30	199	DIBBS
3110-01-103-2413	2010-06-30	184	DIBBS
3110-01-103-2413	2010-05-17	464	DIBBS
3110-01-103-2413	2010-03-26	184	DIBBS
DAS626A1501	2009-04-22	300	us

Cross Reference | NSN 3110-01-103-2413

Part Number	Cage Code	Manufacturer
A-44788	77896	REXNORD INDUSTRIES, LLC DIV BEARING OPERATION
DAS6-26A-501	77896	REXNORD INDUSTRIES, LLC DIV BEARING OPERATION
DAS6-26A1-501	77896	REXNORD INDUSTRIES, LLC DIV BEARING OPERATION
YD146	15132	SOLA CANADA LINDBERG DIV

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 3110-01-103-2413

Compare

Related Products | NSN 3110-01-103-2413

3110-01-103-2414, 3110-01-103-2621, 3110-01-103-2622, 3110-01-103-3466, 3110-01-103-3469

Technical Data | NSN 3110-01-103-2413

Characteristic	Specifications
MATERIAL	STEEL COMP 440C INNER RING STEEL COMP 630 LOCKING COLLAR STEEL COMP 440C OUTER RING COPPER ALLOY 962 RETAINER STEEL COMP 440C ROLLER STEEL COMP 630 SLEEVE
MATERIAL DOCUMENT AND CLASSIFICATION	AISI 440C NATIONAL SPEC SINGLE MATERIAL RESPONSE INNER RING AISI 630 NATIONAL SPEC SINGLE MATERIAL RESPONSE LOCKING COLLAR AISI440C NATIONAL SPEC SINGLE MATERIAL RESPONSE OUTER RING QQ-C-390 FED SPEC SINGLE MATERIAL RESPONSE RETAINER AISI440C NATIONAL SPEC SINGLE MATERIAL RESPONSE ROLLER AISI 630 NATIONAL SPEC SINGLE MATERIAL RESPONSE SLEEVE
STYLE DESIGNATOR	276 CONCAVE ROLLERS, DOUBLE CLOSURE, SELF ALIGNING
BORE DIAMETER	0.3745 INCHES MINIMUM AND 1.3750 INCHES MAXIMUM
OVERALL OUTSIDE DIAMETER	1.6245 INCHES MINIMUM AND 1.6250 INCHES MAXIMUM
OUTER RING WIDTH	0.6650 INCHES MINIMUM AND 0.6750 INCHES MAXIMUM
INNER RING WIDTH	0.8750 INCHES MINIMUM AND 0.8800 INCHES MAXIMUM
ALIGNMENT TYPE	SELF-ALIGNING
SELF-ALIGNMENT LOCATION	INTERNAL
FEATURES PROVIDED	LUBRICATION HOLE

Restrictions/Controls & Freight Information | NSN 3110-01-103-2413

Restictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating	P	77.5
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	ZA	Australia ZB ZC
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-01-103-2413

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
