NSN 3110-01-132-2229 MKSP4A5A2922, 38950-00903-104, 01-132-2229
Product Details | AIRFRAME BALL BEARING
3110-01-132-2229 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.
Part Alternates: MKSP4A5A2922, 38950-00903-104, 3110-01-132-2229, 01-132-2229, 3110011322229, 3895000903104, 011322229
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 25-MAY-82 | 01-132-2229 | 00041 ( BEARING, BALL, AIRFRAME ) |

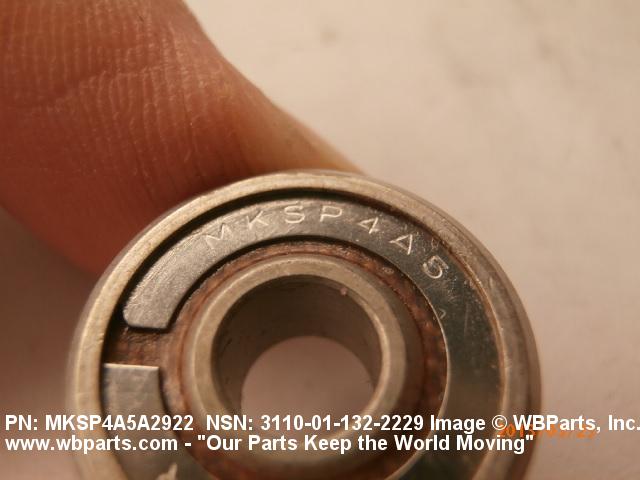

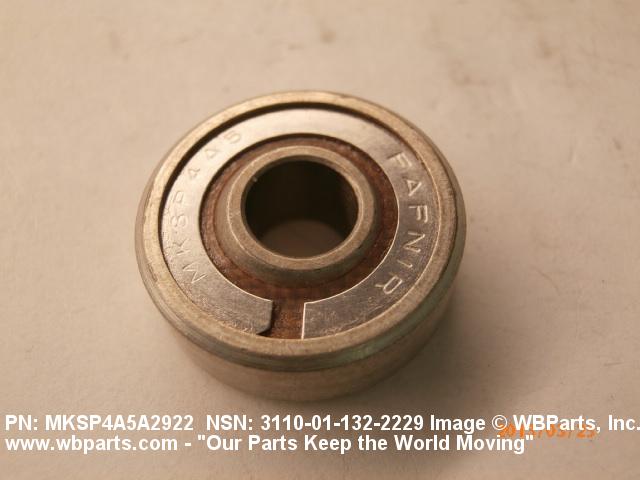

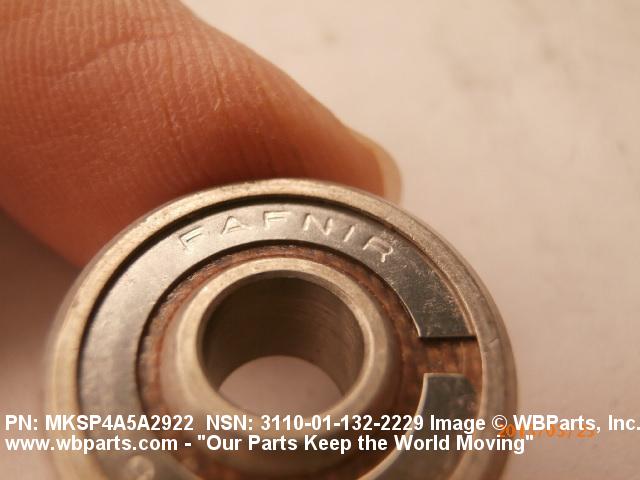

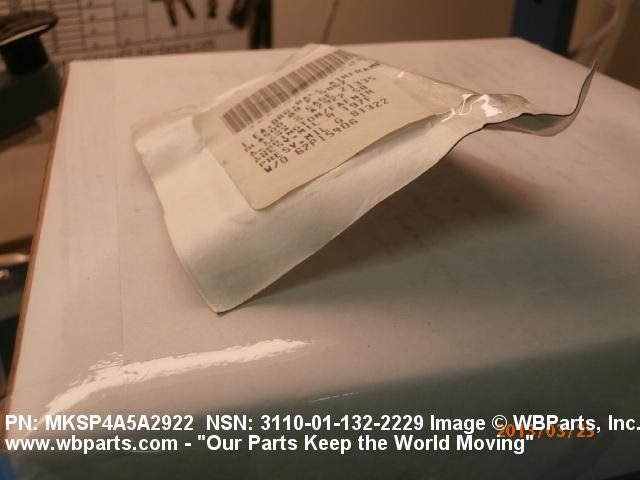

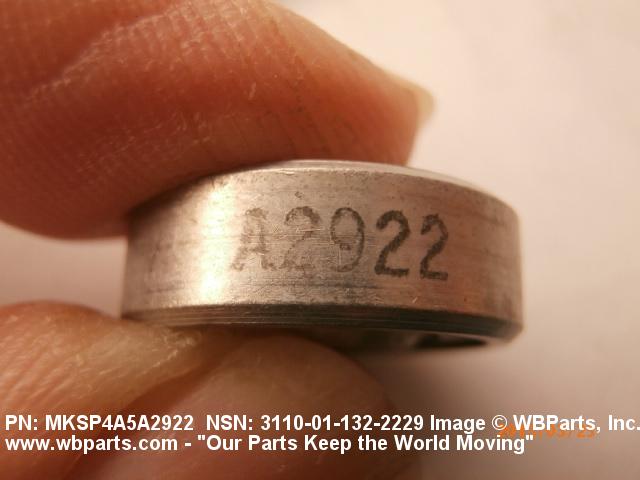

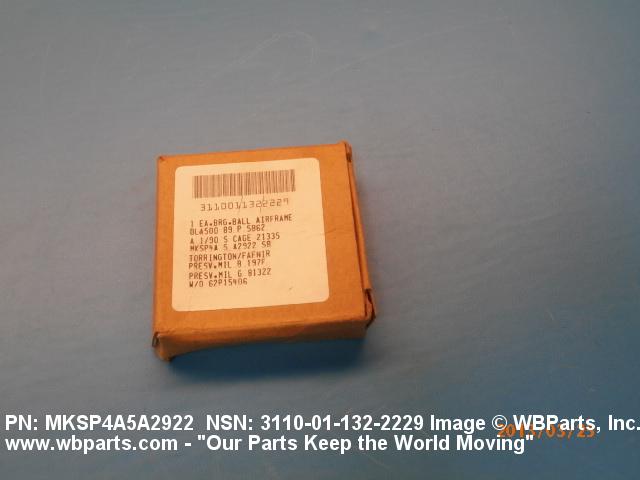

Drawings & Photos | NSN 3110-01-132-2229
Demand History | NSN 3110-01-132-2229
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3895-00-090-3104 | 2025-04-111 | 1 | us |
| 3110-01-132-2229 | 2022-03-80 | 322 | US |
| 3895-00-090-3104 | 2019-11-311 | 2 | US |
| 3110-01-132-2229 | 2018-04-100 | 1 | CH |
| 3895-00-090-3104 | 2016-09-266 | 8 | United States |
| MKSP4A5A2922 | 2016-04-109 | 6 | United States |
| 3110-01-132-2229 | 2016-03-90 | 63 | MANUAL |
| 38950-00903-104 | 2016-03-90 | 63 | KR |
| 38950-00903-104 | 2015-10-281 | 7 | US |
| MKSP4A5A2922 | 2014-06-175 | 20 | US |
| MKSP4A5A2922 | 2014-05-149 | 60 | PL |
| 3110-01-132-2229 | 2013-12-337 | 200 | US |
| MKSP4A5A2922 | 2013-03-64 | 1 | United States |
| 3895-00-090-3104 | 2012-10-299 | 1 | US |
| MKSP4A5A2922 | 2012-01-17 | 7 | US |
| MKSP4A5A2922 | 2011-04-94 | 575 | US |
| 3110-01-132-2229 | 2011-01-03 | 134 | US |
| MKSP4A5A2922 | 2010-07-207 | 136 | us |
| MKSP4A5A2922 | 2009-11-322 | 4 | us |
| 3895-00-090-3104 | 2009-10-293 | 200 | US |
| MKSP4A5A2922 | 2009-03-72 | 2 | US |
| MKSP4A5A2922 | 2009-03-72 | 2 | US |
| MKSP4A5A2922 | 2009-03-61 | 2 | US |
| 3895-00-090-3104 | 2008-02-58 | 50 | US |
| 3110-01-132-2229 | 2007-07-192 | 260 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-01-132-2229
Technical Data | NSN 3110-01-132-2229
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BALL STEEL INNER RING STEEL OUTER RING PLASTIC POLYTETRAFLUOROETHYLENE SEAL |
| SURFACE TREATMENT | CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES |
| STYLE DESIGNATOR | 198 SINGLE ROW SELF ALIGNING SINGLE ROW INNER RING EXTENDED BOTH SIDES |

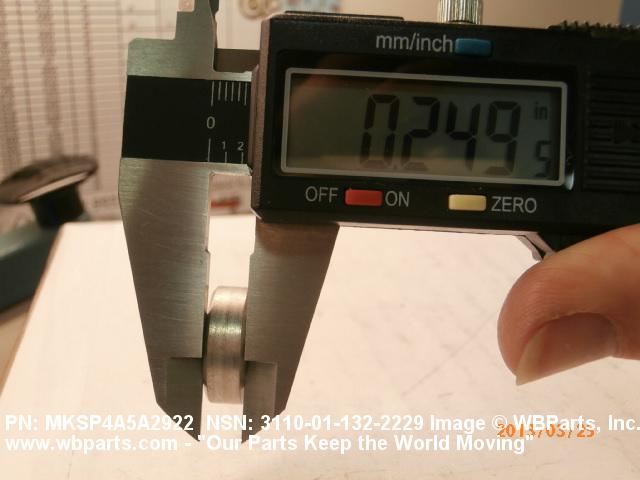

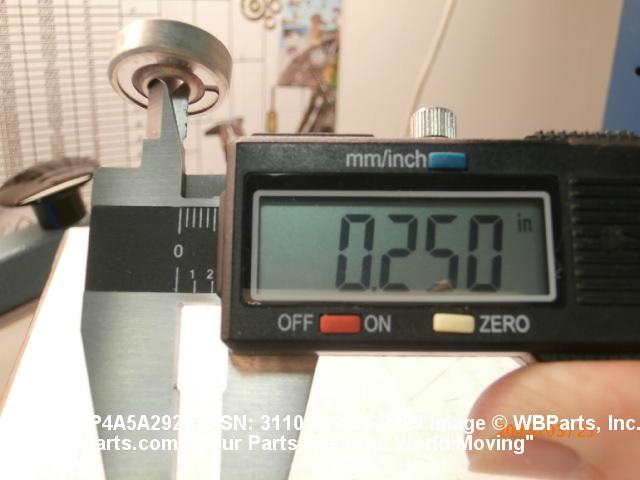

| BORE DIAMETER | 0.2497 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |

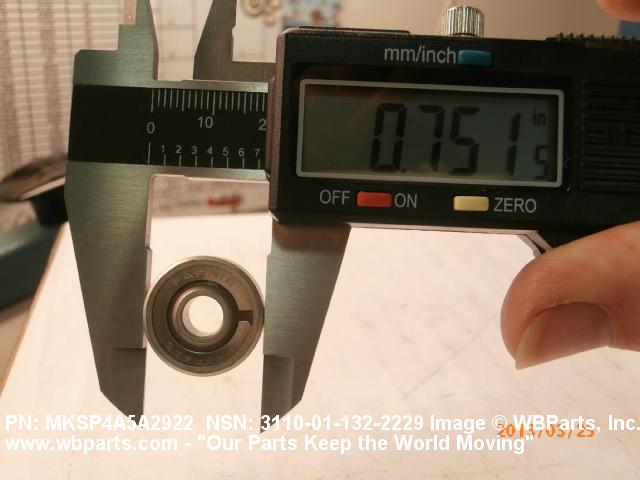

| OVERALL OUTSIDE DIAMETER | 0.7496 INCHES MINIMUM AND 0.7500 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.2450 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |

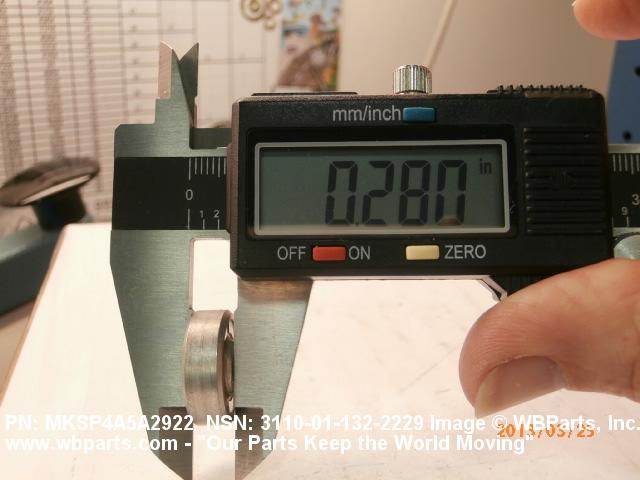

| INNER RING WIDTH | 0.2785 INCHES MINIMUM AND 0.2810 INCHES MAXIMUM |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
| LOAD DIRECTION | RADIAL |
| SPECIAL FEATURES | 40 TO 50 PCT FULL OF SPECIFIED LUBRICANT; LOW STARTING TORQUE |
Restrictions/Controls & Freight Information | NSN 3110-01-132-2229
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
