NSN 3110-01-134-7591 MS2764837G, MS27648-37G, AS27648

Product Details | AIRFRAME BALL BEARING

3110-01-134-7591 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.

Part Alternates: MS2764837G, MS27648-37G, AS27648, BACB10A240, KP37BS, KP37BSFS428, 3110-01-134-7591, 01-134-7591, 3110011347591, 011347591

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	08 JUL 1982	01-134-7591	00041 ( BEARING, BALL, AIRFRAME )

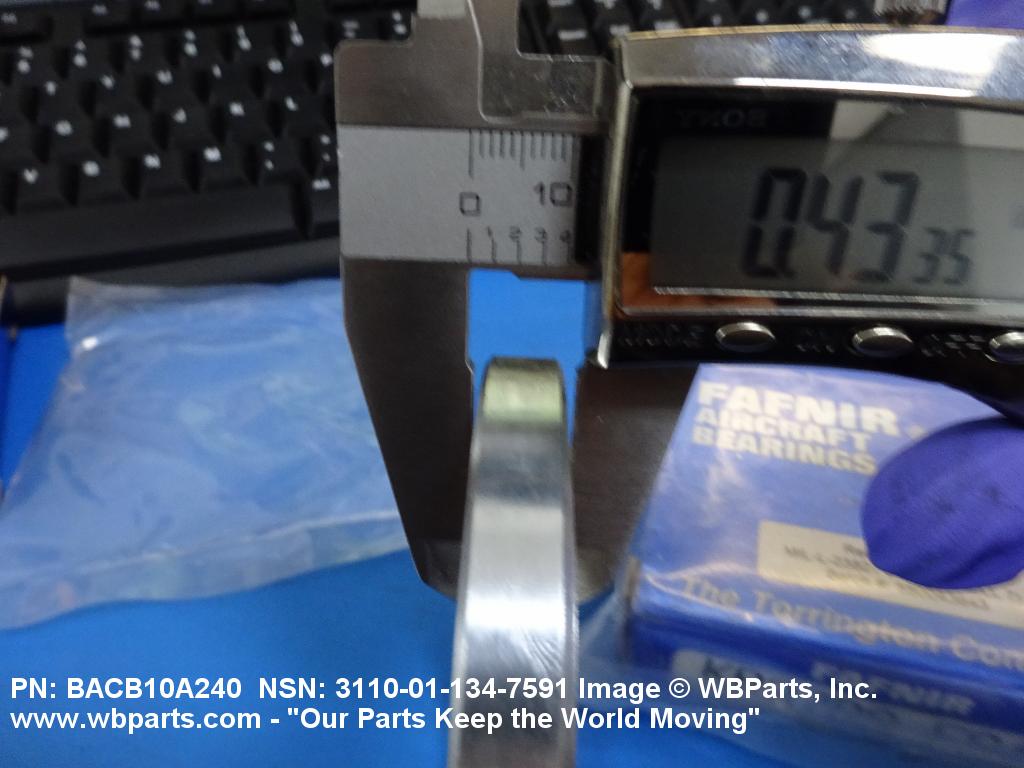

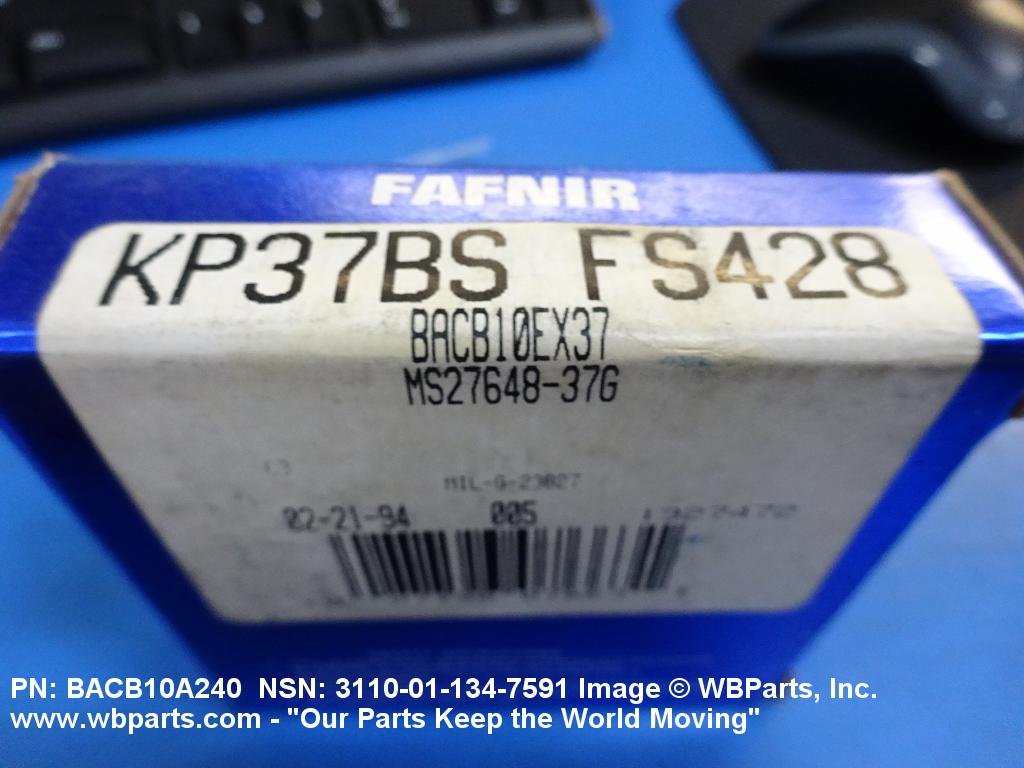

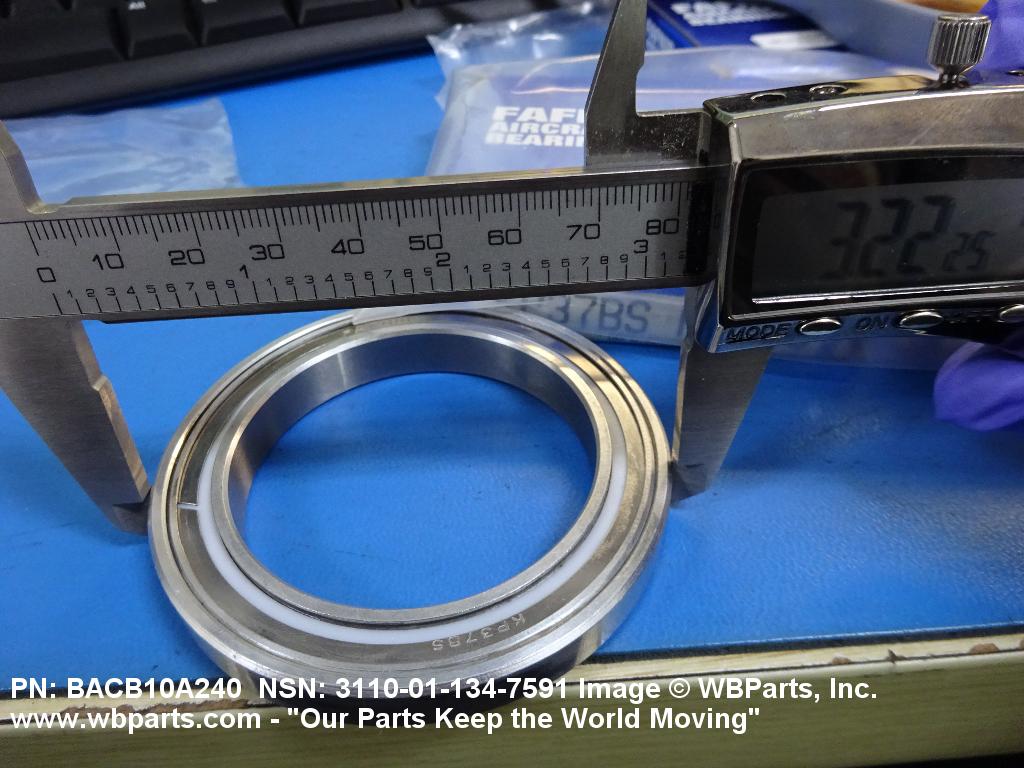

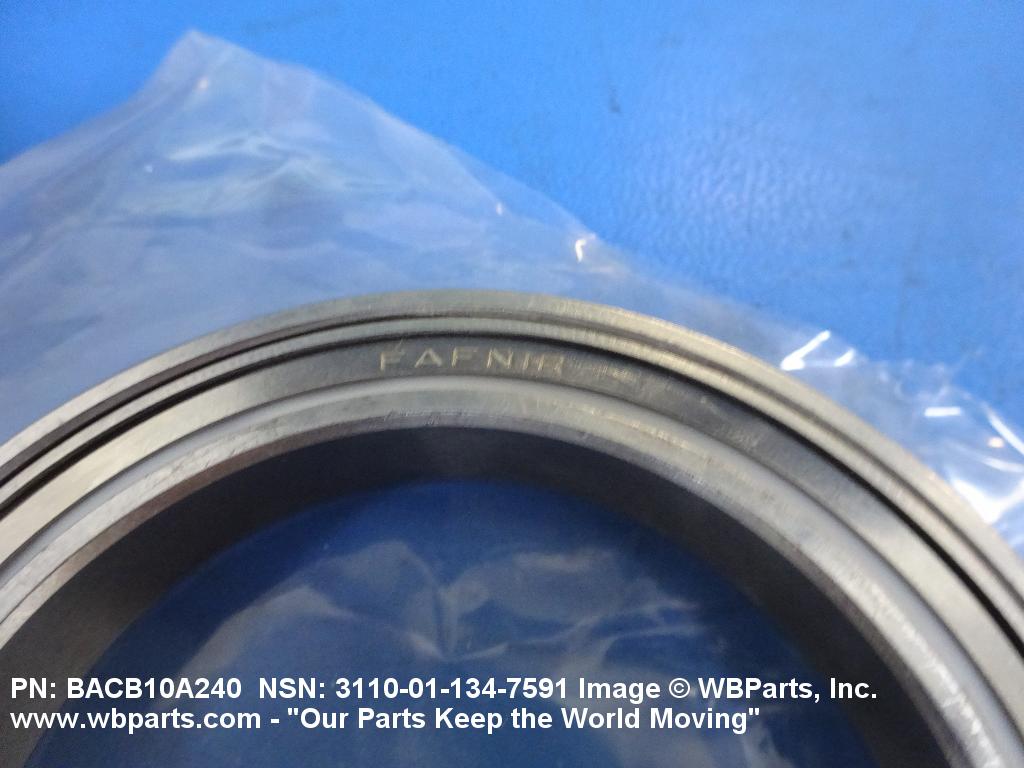

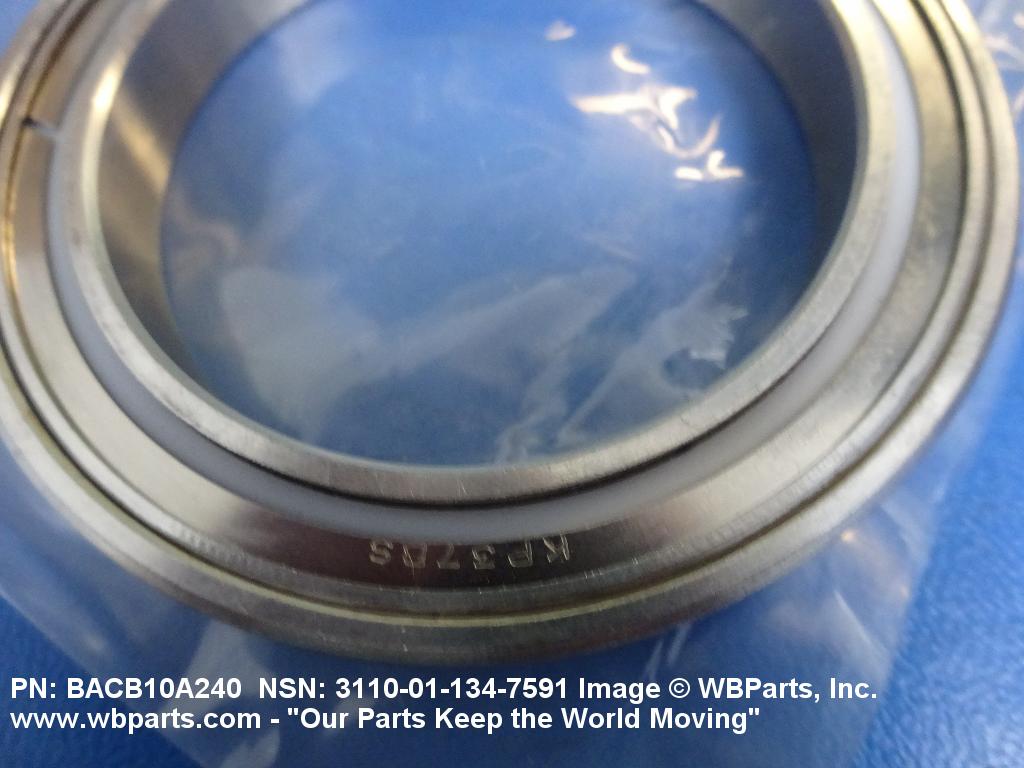

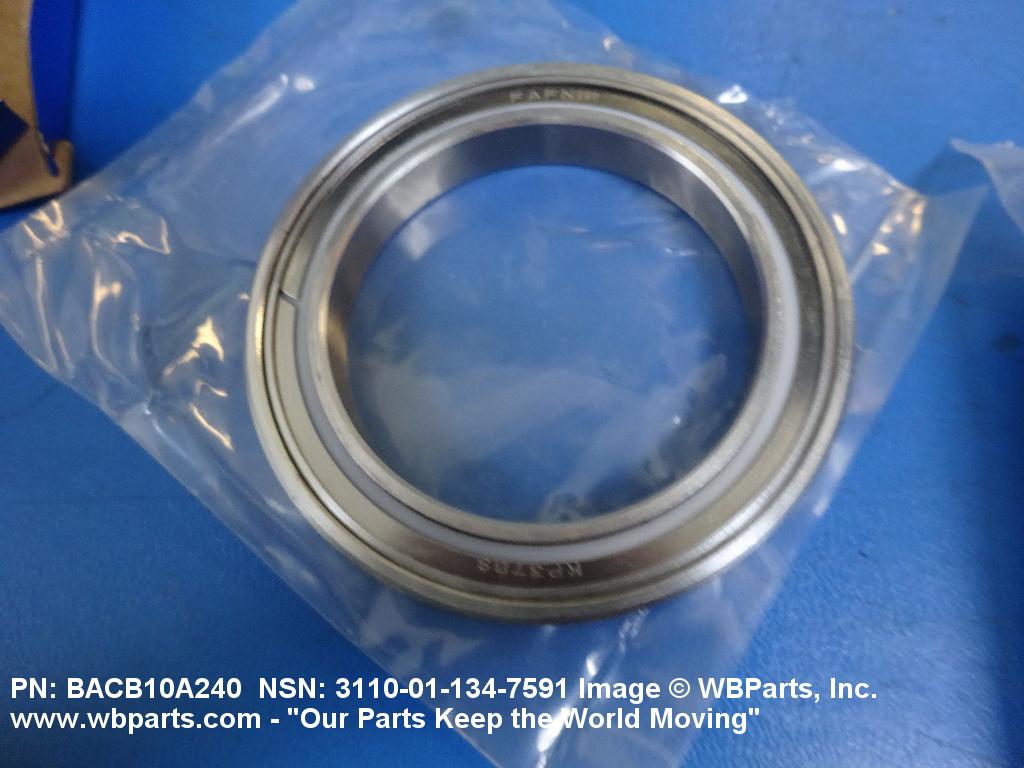

Drawings & Photos | NSN 3110-01-134-7591

Part Number	Request Date	QTY	Origin
3110-01-134-7591	2024-10-301	2	US
3110-01-134-7591	2023-07-202	2	United States
3110-01-134-7591	2022-03-90	4	United States
KP37BS	2021-05-123	2	US
3110-01-134-7591	2021-04-115	124	DIBBS
AS27648	2020-11-323	2	UK
3110-01-134-7591	2020-11-322	6	FX
3110-01-134-7591	2020-08-240	2	United States
KP37BS	2019-03-70	2	US
3110-01-134-7591	2017-08-233	82	DIBBS
3110-01-134-7591	2014-06-152	10	US
3110-01-134-7591	2014-04-106	1	US
3110-01-134-7591	2013-12-343	1	ZA
3110-01-134-7591	2013-10-295	1	US
3110-01-134-7591	2013-10-295	2	United States
3110-01-134-7591	2013-09-259	2	US
KP37BS	2013-01-14	2	US
3110-01-134-7591	2012-12-352	2	US
3110-01-134-7591	2012-10-299	2	United States
3110-01-134-7591	2012-09-262	2	Australia
3110-01-134-7591	2012-09-254	9	US
KP37BS	2012-07-194	7	US
BACB10A240	2012-07-194	7	US
AS27648	2010-10-279	10	CN
KP37BS	2010-08-226	2	US
KP37BS	2010-05-134	2	us
3110-01-134-7591	2010-05-124	71	DIBBS
3110-01-134-7591	2010-03-86	2	US
KP37BS	2009-10-292	2	US
KP37BS	2009-06-181	2	US
KP37BS	2009-06-167	2	Canada
BACB10A240	2009-03-78	50	US
3110-01-134-7591	2008-11-324	4	US
KP37BS	2008-10-289	2	US

Cross Reference | NSN 3110-01-134-7591

Part Number	Cage Code	Manufacturer
AS27648	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
BACB10A240	82918	THE BOEING COMPANY DBA BOEING
KP37BS	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
KP37BSFS428	06144	INDUSTRIAL TECTONICS BEARINGS CORPORATION
KP37BSFS428	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
MS27648-37G	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-01-134-7591

Compare

Related Products | NSN 3110-01-134-7591

3110-01-134-8287, 3110-01-134-8780, 3110-01-134-8781, 3110-01-134-8965, 3110-01-134-8966

Technical Data | NSN 3110-01-134-7591

Characteristic	Specifications
MATERIAL	STEEL COMP E52100 OVERALL RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR SEAL
MATERIAL DOCUMENT AND CLASSIFICATION	AISI ASSN STD SINGLE MATERIAL RESPONSE OVERALL
STYLE DESIGNATOR	200 SINGLE ROW, EXTERNAL SELF ALIGNING, WITH ALIGNING RING
BORE DIAMETER	2.3130 INCHES NOMINAL
OVERALL OUTSIDE DIAMETER	3.2500 INCHES NOMINAL
OUTER RING WIDTH	0.3750 INCHES NOMINAL
INNER RING WIDTH	0.4375 INCHES NOMINAL
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE
STANDARD TOLERANCE DESIGNATION	AFBMA STD TOLERANCE FOR AIRFRAME BALL BEARINGS
SEAL QUANTITY	2
BEARING SEAL TYPE	CONTACT
ALIGNMENT TYPE	SELF-ALIGNING
SELF-ALIGNMENT LOCATION	EXTERNAL
LOAD DIRECTION	RADIAL
CRITICALITY CODE JUSTIFICATION	MATT AND ADZG

Restrictions/Controls & Freight Information | NSN 3110-01-134-7591

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	YK	Kuwait YL YM
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-01-134-7591

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
