NSN 3110-01-161-2133 DIN72032010X, DIN720-32010X, 9061143-00
Product Details | TAPERED ROLLER BEARING
3110-01-161-2133 A cylindrical device in which the inner cone or outer cup turns upon a single or double row of tapered hardened rollers which roll easily in a race, thus minimizing friction and designed to carry a radial load and capable of sustaining axial thrust. Excludes BEARING, ROLLER, THRUST.
Part Alternates: DIN72032010X, DIN720-32010X, 9061143-00, 10501801, 32010 X, 32010X, 4T32010X, 4T-32010X, 3110-01-161-2133, 01-161-2133, 3110011612133, 011612133, 906114300
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 02 SEP 1983 | 01-161-2133 | 00021 ( BEARING, ROLLER, TAPERED ) |

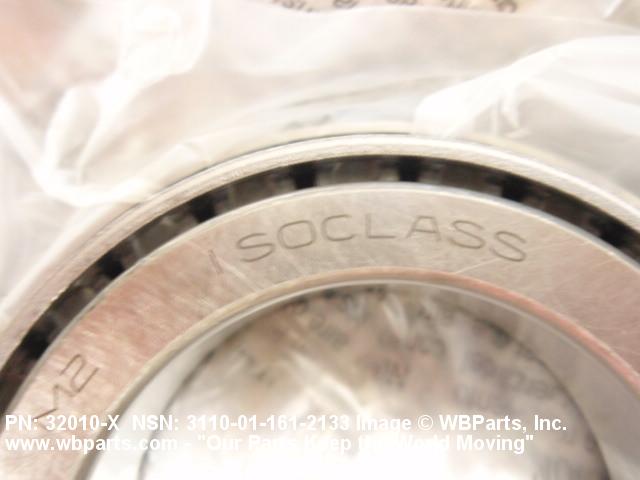

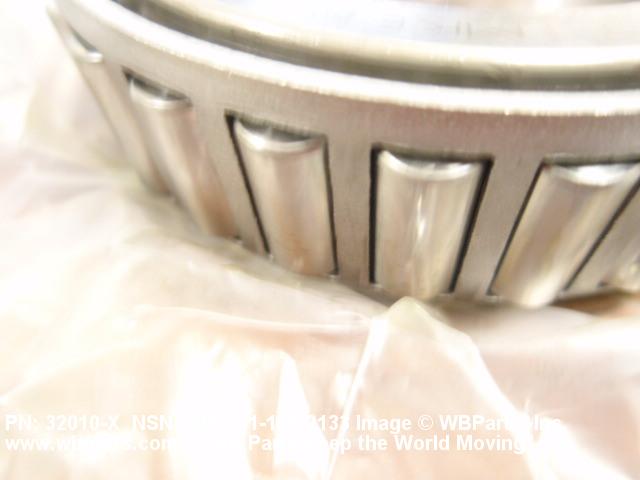

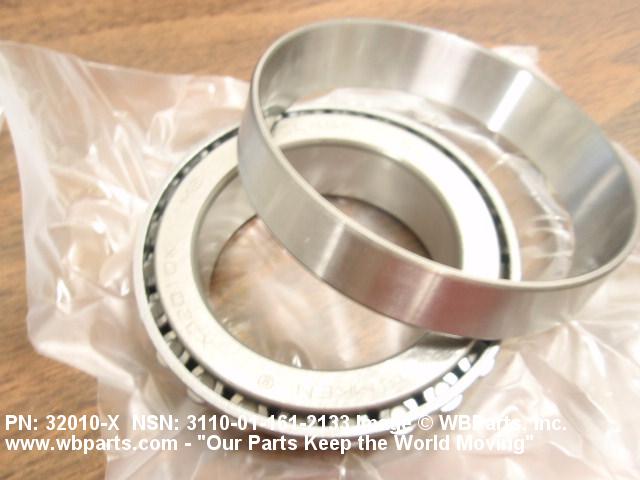

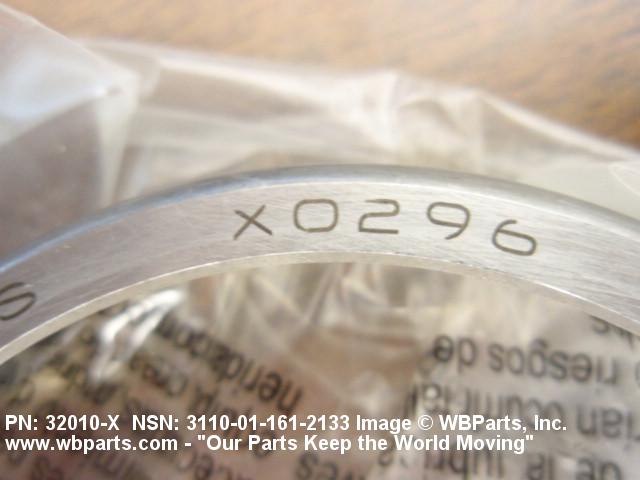

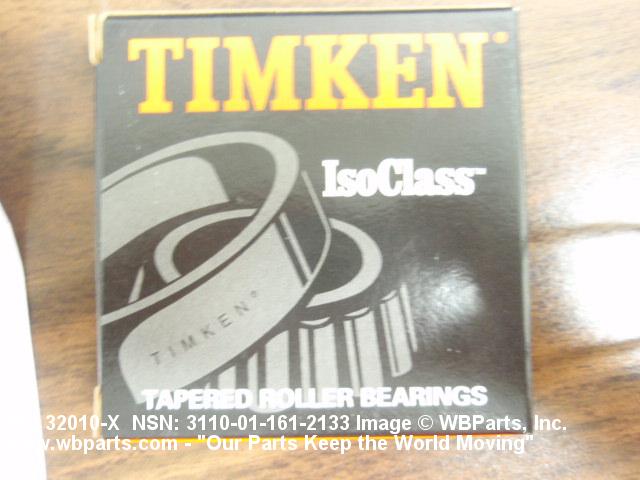

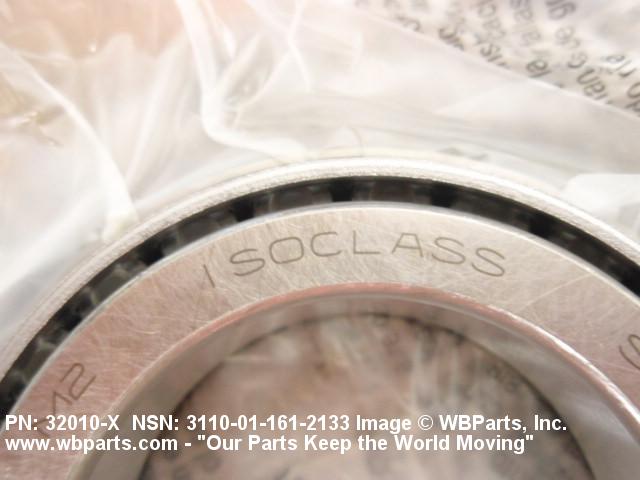

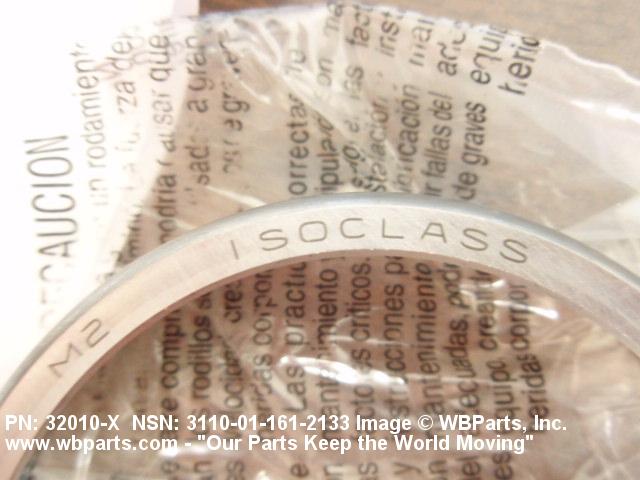

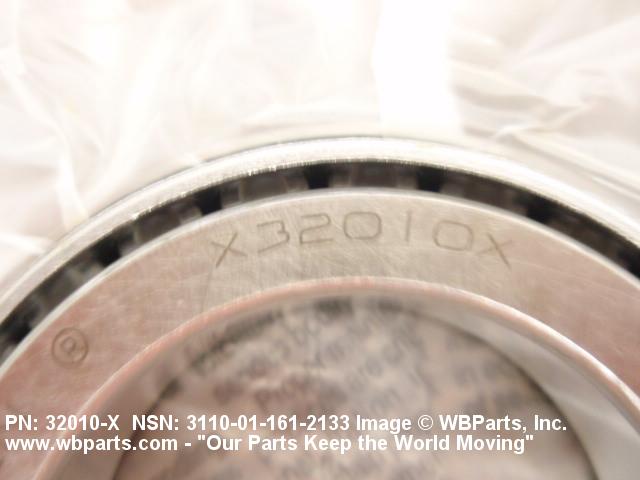

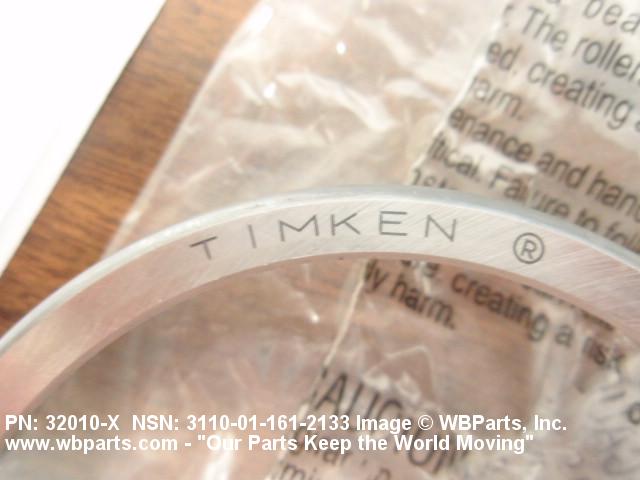

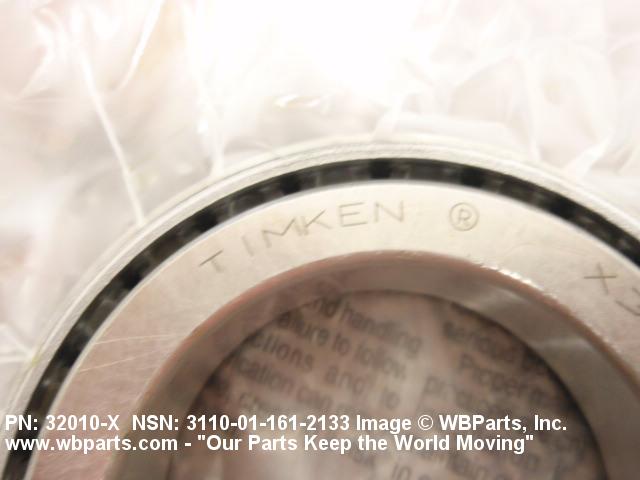

Drawings & Photos | NSN 3110-01-161-2133
Demand History | NSN 3110-01-161-2133
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 10501801 | 2020-11-329 | 1364 | DIBBS |
| 32010X | 2020-11-329 | 1364 | DIBBS |
| 10501801 | 2020-08-231 | 487 | DIBBS |
| 32010X | 2020-08-231 | 487 | DIBBS |
| 10501801 | 2020-07-211 | 487 | DIBBS |
| 32010X | 2020-07-211 | 487 | DIBBS |
| 10501801 | 2020-07-187 | 421 | DIBBS |
| 32010X | 2020-07-187 | 421 | DIBBS |
| 10501801 | 2019-11-317 | 811 | DIBBS |
| 32010X | 2019-11-317 | 811 | DIBBS |
| 3110-01-161-2133 | 2013-06-156 | 676 | DIBBS |
| 3110-01-161-2133 | 2013-04-101 | 558 | DIBBS |
| 3110-01-161-2133 | 2013-01-01 | 394 | DIBBS |
| 3110-01-161-2133 | 2011-09-273 | 427 | DIBBS |
| 32010X | 2010-12-356 | 2 | US |
| 3110-01-161-2133 | 2010-07-200 | 1 | United States |
| 3110-01-161-2133 | 2010-07-188 | 1 | United States |
| 3110-01-161-2133 | 2010-07-188 | 1 | United States |
| 3110-01-161-2133 | 2010-06-152 | 1 | US |
| 3110-01-161-2133 | 2010-03-89 | 356 | DIBBS |
| 3110-01-161-2133 | 2009-09-252 | 548 | DIBBS |
| 3110-01-161-2133 | 2008-11-310 | 374 | DIBBS |
| 3110-01-161-2133 | 2008-11-309 | 374 | DIBBS |
| 3110-01-161-2133 | 2008-09-274 | 374 | DIBBS |
| 3110-01-161-2133 | 2008-09-273 | 374 | DIBBS |
| 3110-01-161-2133 | 2007-02-53 | 600 | DIBBS |
Cross Reference | NSN 3110-01-161-2133
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10501801 | 56161 | GENERAL DYNAMICS LAND SYSTEMS - CANADA CORPORATION |
| 32010 X | 52676 | SKF USA INC. |
| 32010X | 43991 | FAG BEARINGS CORPORATION |
| 32010X | 5HB43 | TAPER ROLLER BEARINGS, INC. |
| 32010X | 60038 | TIMKEN CORPORATION, THE |
| 4T-32010X | S5250 | NTN TOYO BEARING COMPANY LTD |
| 9061143-00 | 83299 | NACCO MATERIALS HANDLING GROUP INC DBA YALE MATERIALS HANDLING |
| DIN720-32010X | D8286 | DIN DEUTSCHES INSTITUT FUER NORMUNGEV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-161-2133
Related Products | NSN 3110-01-161-2133
Technical Data | NSN 3110-01-161-2133
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 350 STRAIGHT BORE, NORMAL ANGLE |
| OVERALL WIDTH | 20.000 MILLIMETERS NOMINAL |
| BORE DIAMETER | 50.000 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 80.000 MILLIMETERS NOMINAL |
| BACKFACE CORNER RADIUS | 1.0 MILLIMETERS MAXIMUM |
| STANDOUT WIDTH | 20.000 MILLIMETERS NOMINAL |
| CONE CORNER RADIUS | 1.0 MILLIMETERS MAXIMUM |
| CONE WIDTH | 20.000 MILLIMETERS NOMINAL |
| CUP WIDTH | 15.500 MILLIMETERS NOMINAL |
| STANDARD TOLERANCE DESIGNATION | INTERNATIONAL STANDARDS ORGANIZATION STANDARD TOLERANCE |
| RETAINER FABRICATION METHOD | PRESSED |
| ALIGNMENT TYPE | RIGID |
Restrictions/Controls & Freight Information | NSN 3110-01-161-2133
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-161-2133
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | T | |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
