NSN 3110-01-172-0373 9961M70P03, 01-172-0373, 011720373

Product Details | BEARING RETAINING PLATE

3110-01-172-0373 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.

Part Alternates: 9961M70P03, 3110-01-172-0373, 01-172-0373, 3110011720373, 011720373

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	15 FEB 1984	01-172-0373	22293 ( PLATE, RETAINING, BEARING )

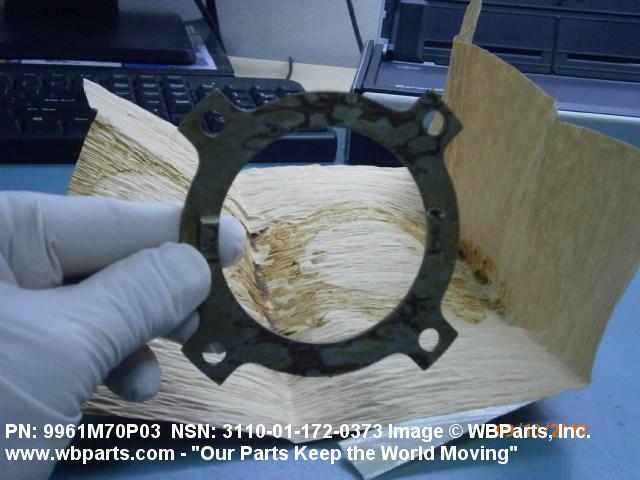

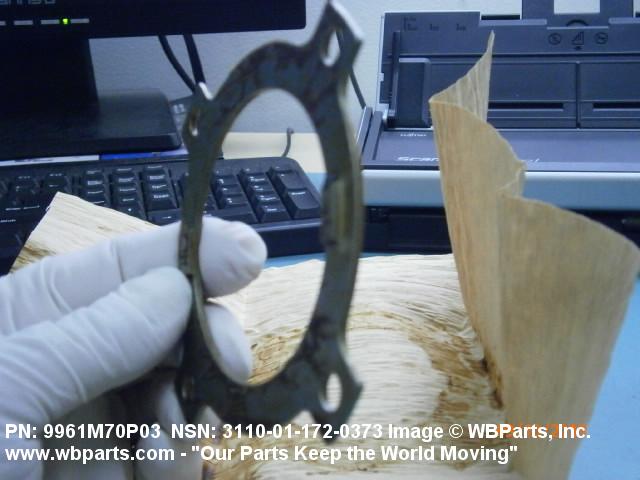

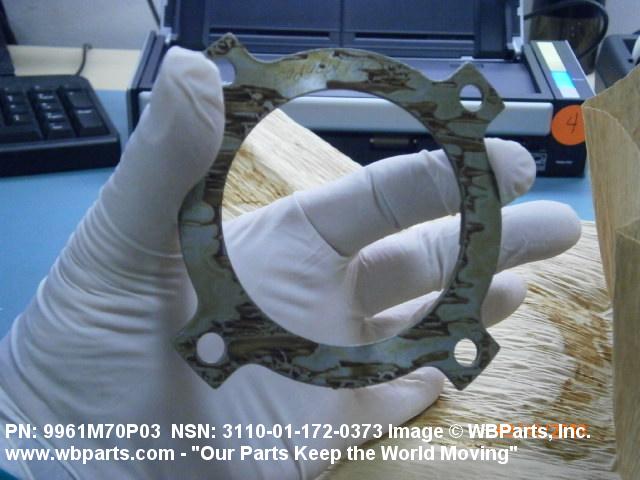

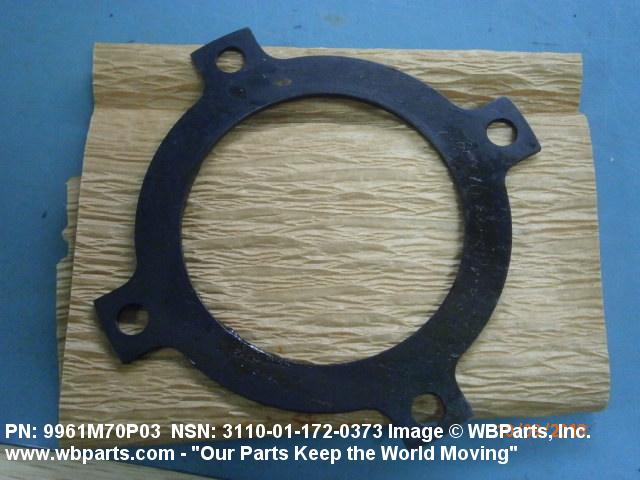

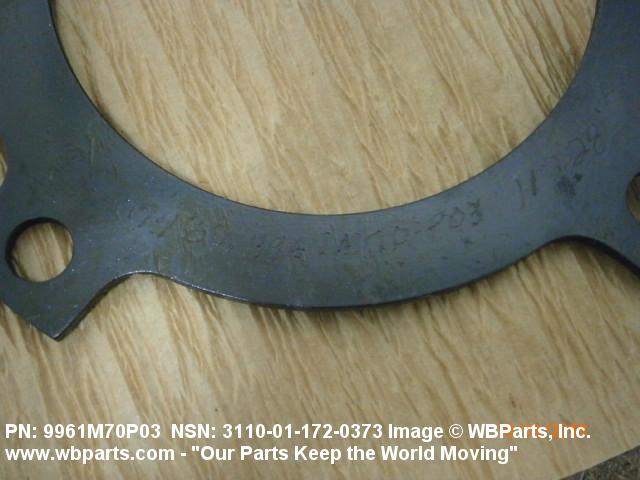

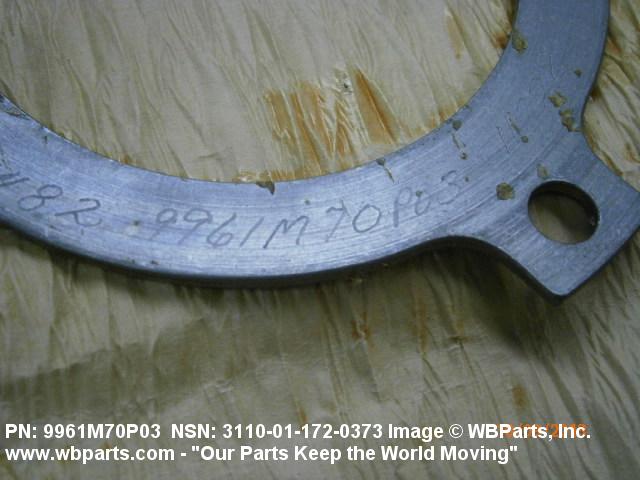

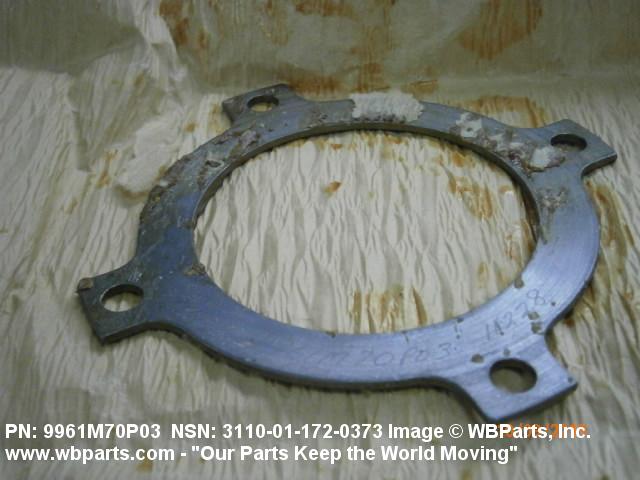

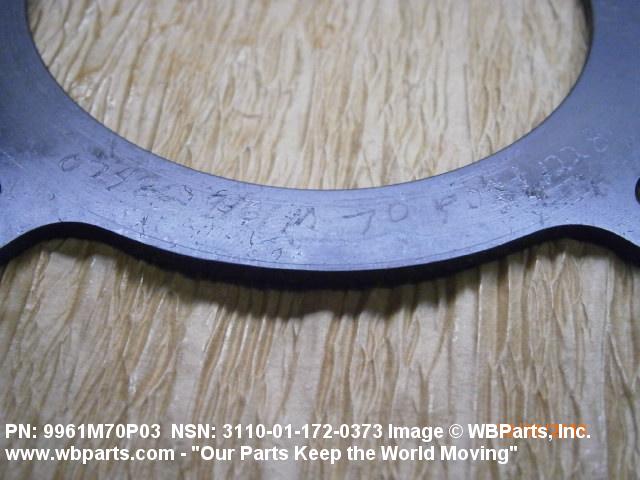

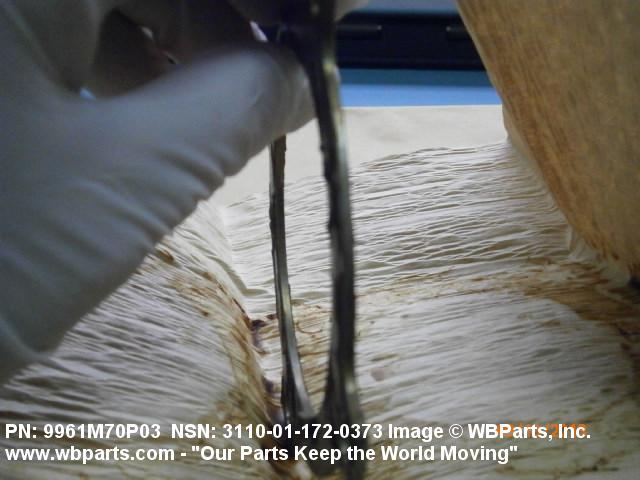

Drawings & Photos | NSN 3110-01-172-0373

Part Number	Request Date	QTY	Origin
3110-01-172-0373	2013-06-162	1	United States
3110-01-172-0373	2012-06-158	55	United States
3110-01-172-0373	2012-05-130	55	DIBBS
3110-01-172-0373	2012-03-61	100	DIBBS
3110-01-172-0373	2012-02-55	3	DIBBS
3110-01-172-0373	2011-12-342	4	DIBBS
3110-01-172-0373	2011-04-102	3	DIBBS
3110-01-172-0373	2009-11-310	3	DIBBS
3110-01-172-0373	2009-01-22	2	DIBBS

Cross Reference | NSN 3110-01-172-0373

Part Number	Cage Code	Manufacturer

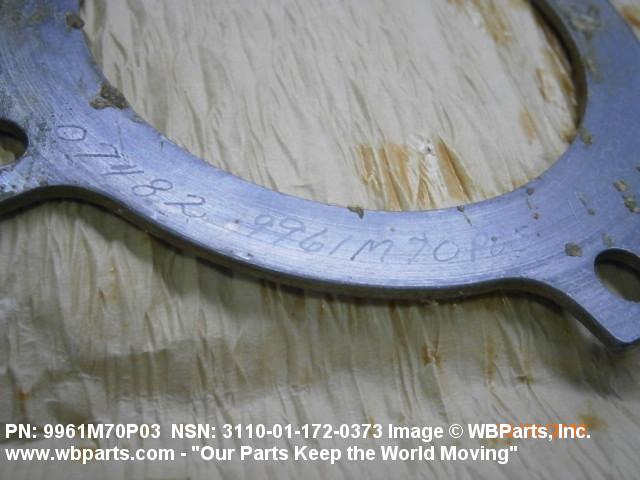

9961M70P03	07482	GENERAL ELECTRIC COMPANY DBA GE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-01-172-0373

Compare

Related Products | NSN 3110-01-172-0373

3110-01-172-0374, 3110-01-172-0554, 3110-01-172-0555, 3110-01-172-0556, 3110-01-172-0702

Technical Data | NSN 3110-01-172-0373

Characteristic	Specifications
MATERIAL	STEEL COMP 4340 OVERALL
SURFACE TREATMENT	OXIDE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-C-13924 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
OUTSIDE DIAMETER	3.590 INCHES MINIMUM AND 3.630 INCHES MAXIMUM
CROSS-SECTIONAL SHAPE STYLE	C4B RAISED SURFACE WITHOUT APERTURE

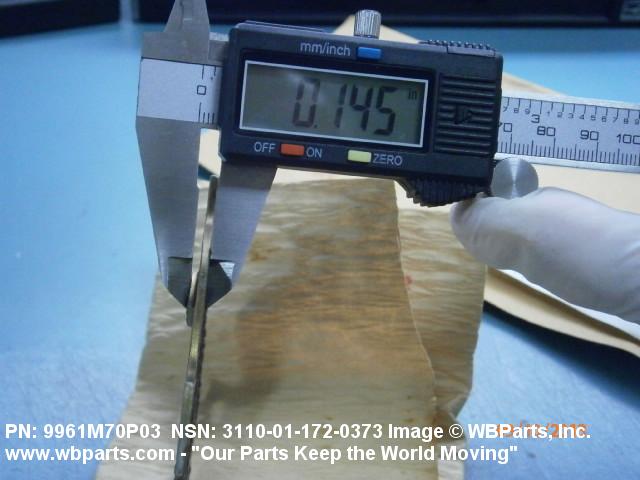

OVERALL THICKNESS	0.145 INCHES NOMINAL

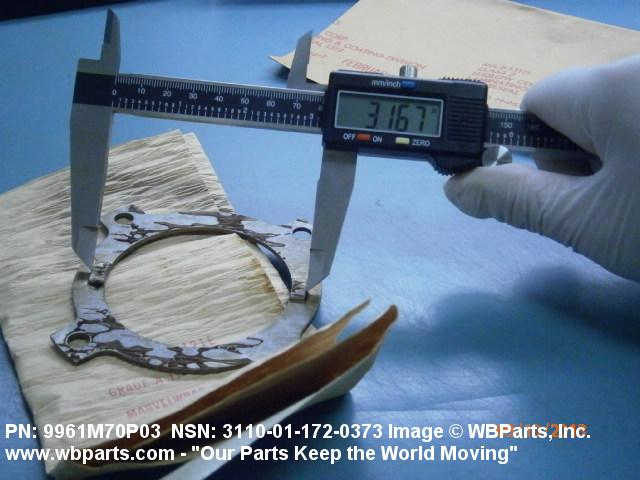

OUTSIDE RAISED SURFACE DIAMETER	3.165 INCHES MINIMUM AND 3.175 INCHES MAXIMUM
RAISED SURFACE HEIGHT	0.055 INCHES MINIMUM AND 0.060 INCHES MAXIMUM
MOUNTING HOLE TYPE	ROUND, UNTHREADED

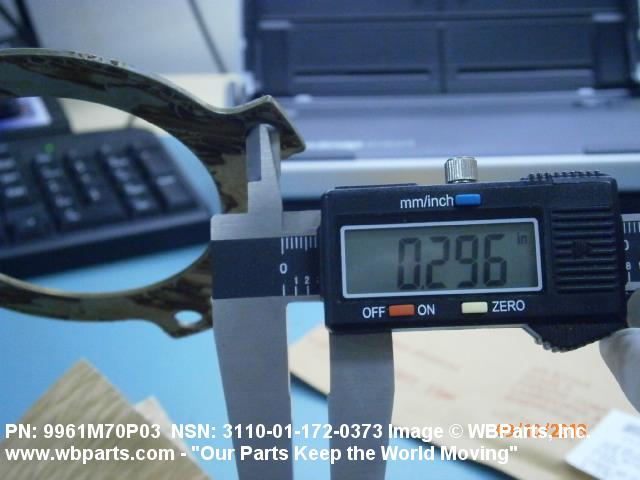

MOUNTING HOLE DIAMETER	0.296 INCHES MINIMUM AND 0.303 INCHES MAXIMUM
SPECIAL FEATURES	CENTRALLY LOCATED HOLE 2.73O IN. NOM DIAM;FOUR TABS,THREE EQUALLY SPACED W/FOURTH OFFSET AT 80 DEG ON A DIAM OF 4.560 IN. NOM W/A WIDTH OF 0.680 IN. NOM;RAISED SURF I.E. KEYS,LOCATED 180 DEG APART
III END ITEM IDENTIFICATION	ACFT ENG F-101
MANUFACTURERS CODE	07482
DESIGN CONTROL REFERENCE	9961M70P03

Restrictions/Controls & Freight Information | NSN 3110-01-172-0373

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating	P	77.5
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	SX	Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	Z	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-01-172-0373

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	JF	SX:F-101 ENGINE
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
