NSN 3110-01-172-8034 S3342MCZZ3P515, S3342MCZZ3P515LG20, 3TKRZZ3342P
Product Details | AIRFRAME BALL BEARING
3110-01-172-8034 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.
Part Alternates: S3342MCZZ3P515, S3342MCZZ3P515LG20, 3TKRZZ3342P, 3TKRZZ33-42P, 3110-01-172-8034, 01-172-8034, 3110011728034, 011728034
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 25 FEB 1984 | 01-172-8034 | 00041 ( BEARING, BALL, AIRFRAME ) |

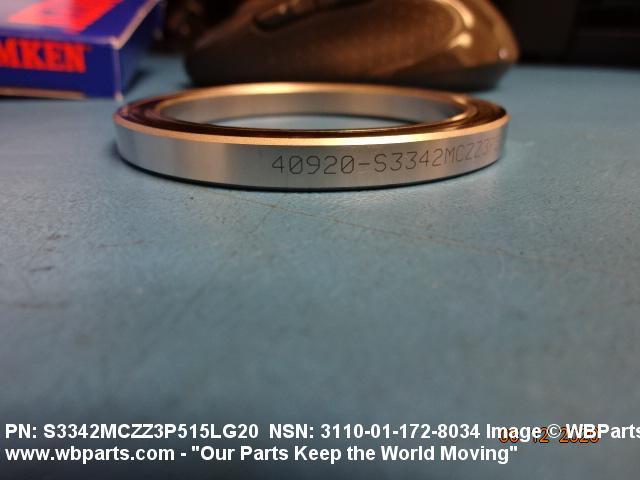

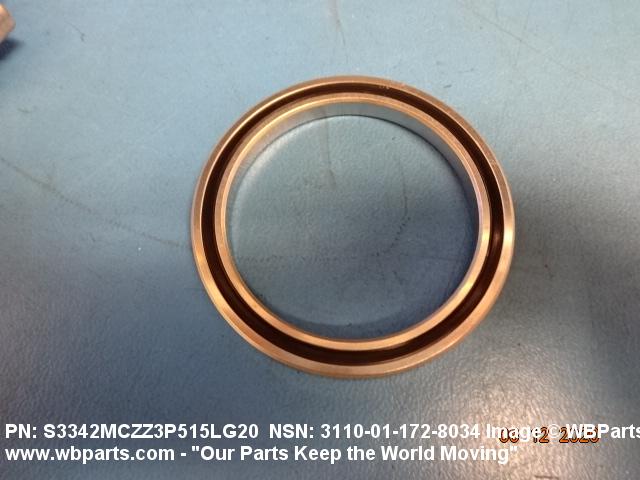

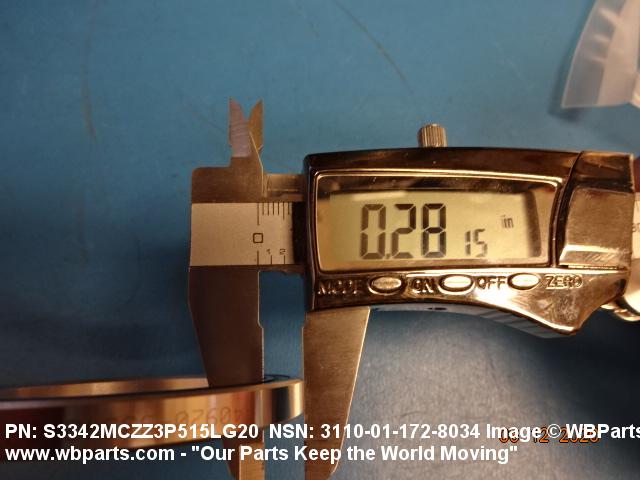

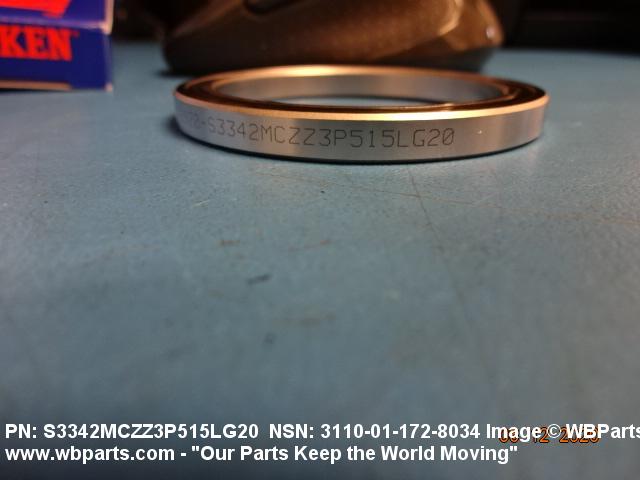

Drawings & Photos | NSN 3110-01-172-8034
Demand History | NSN 3110-01-172-8034
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-172-8034 | 2021-03-61 | 1 | DIBBS-RFPs |
| 3110-01-172-8034 | 2020-09-245 | 6 | Singapore |
| 3110-01-172-8034 | 2020-08-244 | 6 | Singapore |
| 3110-01-172-8034 | 2020-03-77 | 5 | Singapore |
| 3110-01-172-8034 | 2020-03-73 | 5 | Singapore |
| 3110-01-172-8034 | 2018-11-306 | 1 | Singapore |
| 3110-01-172-8034 | 2018-10-299 | 1 | Singapore |
| 3110-01-172-8034 | 2016-08-217 | 123 | DIBBS |
| 3110-01-172-8034 | 2016-07-195 | 200 | DIBBS |
| 3110-01-172-8034 | 2016-06-167 | 50 | DIBBS |
| 3110-01-172-8034 | 2016-06-159 | 50 | DIBBS |
| 3110-01-172-8034 | 2016-05-124 | 65 | DIBBS |
| 3110-01-172-8034 | 2016-04-112 | 1 | DIBBS-RFPs |
| 3110-01-172-8034 | 2016-04-106 | 1 | DIBBS-RFPs |
| 3110-01-172-8034 | 2016-01-06 | 84 | DIBBS |
| 3110-01-172-8034 | 2015-12-341 | 33 | DIBBS |
| 3110-01-172-8034 | 2014-09-254 | 101 | DIBBS |
| 3110-01-172-8034 | 2014-09-246 | 101 | DIBBS |
| 3110-01-172-8034 | 2014-08-215 | 60 | DIBBS |
| 3110-01-172-8034 | 2013-11-315 | 31 | DIBBS |
| 3110-01-172-8034 | 2013-10-283 | 27 | DIBBS |
| 3110-01-172-8034 | 2013-10-275 | 27 | DIBBS |
| 3110-01-172-8034 | 2013-05-145 | 0 | DIBBS |
| 3110-01-172-8034 | 2013-04-99 | 26 | DIBBS |
| 3110-01-172-8034 | 2013-03-79 | 26 | DIBBS |
| 3110-01-172-8034 | 2011-06-153 | 48 | DIBBS |
| 3110-01-172-8034 | 2009-12-343 | 55 | DIBBS |
| 3110-01-172-8034 | 2009-07-189 | 31 | DIBBS |
| 3110-01-172-8034 | 2009-04-106 | 86 | DIBBS |
| 3110-01-172-8034 | 2008-10-282 | 66 | DIBBS |
| 3110-01-172-8034 | 2007-09-247 | 142 | DIBBS |
| 3110-01-172-8034 | 2007-06-177 | 105 | DIBBS |
| 3110-01-172-8034 | 2007-06-157 | 24 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-172-8034
Related Products | NSN 3110-01-172-8034
Technical Data | NSN 3110-01-172-8034
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C BALL STEEL COMP 440C INNER RING STEEL COMP 440C OUTER RING RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR SEAL |
| STYLE DESIGNATOR | 202 SINGLE ROW, TORQUE TUBE TYPE, WITH OR WITHOUT CLOSURE |

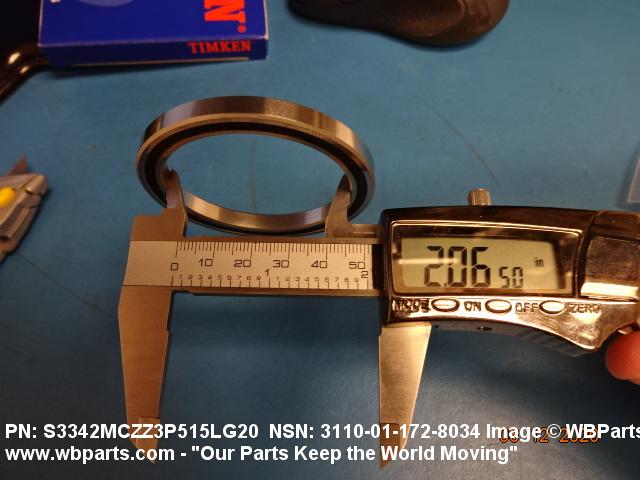

| BORE DIAMETER | 2.0625 INCHES NOMINAL |

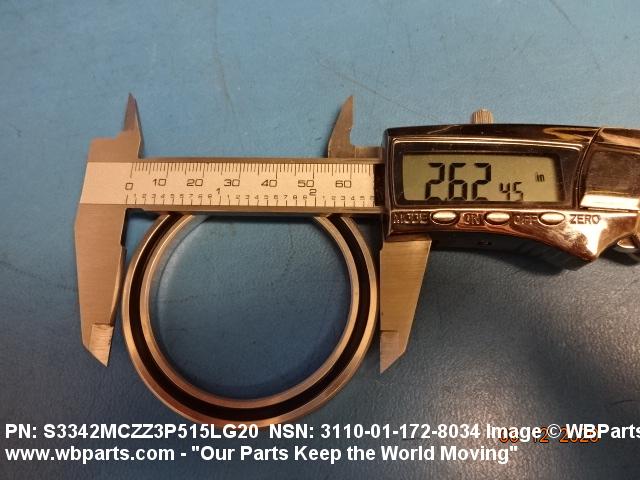

| OVERALL OUTSIDE DIAMETER | 2.6250 INCHES NOMINAL |

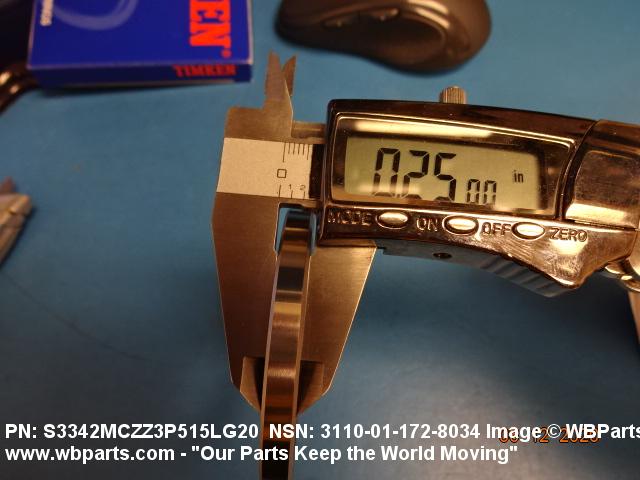

| OUTER RING WIDTH | 0.2500 INCHES NOMINAL |
| INNER RING WIDTH | 0.2500 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | BEACON 325,CAGEC 29700 MFR REF SINGLE MATERIAL RESPONSE |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| LOAD DIRECTION | RADIAL |
Restrictions/Controls & Freight Information | NSN 3110-01-172-8034
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-172-8034
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
