Product Details | AIRFRAME BALL BEARING
3110-01-174-8296 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.
Part Alternates: MS276404G, MS27640-4G, BACB10A689, KP4 E6531, KP4E6531, KP4FS428, LLKP4, LLKP-4, 3110-01-174-8296, 01-174-8296, 3110011748296, 011748296
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 23 MAR 1984 | 01-174-8296 | 00041 ( BEARING, BALL, AIRFRAME ) |

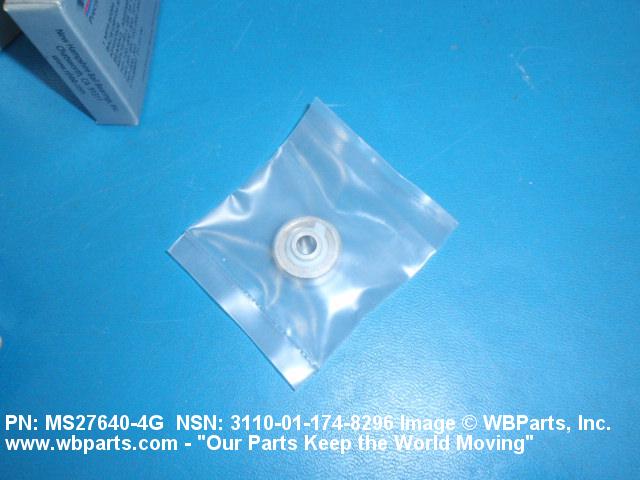

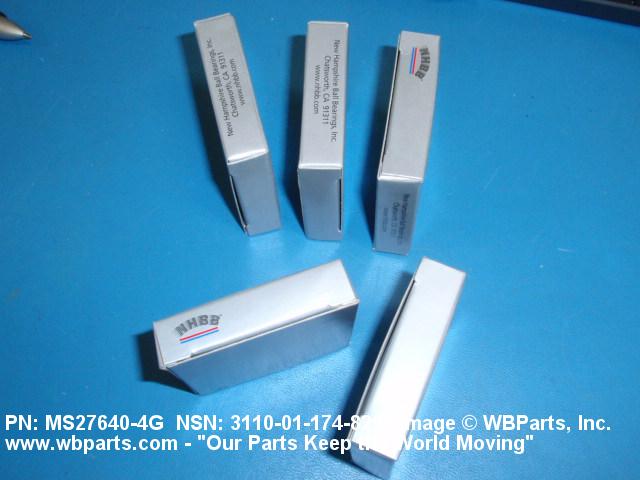

Drawings & Photos | NSN 3110-01-174-8296
Demand History | NSN 3110-01-174-8296
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-174-8296 | 2025-04-107 | 209 | DIBBS |
| 3110-01-174-8296 | 2024-05-140 | 181 | DIBBS |
| BACB10A689 | 2024-03-68 | 50 | AS |
| MS276404G | 2024-03-65 | 24 | United States |
| 3110-01-174-8296 | 2024-02-46 | 52 | DIBBS |
| 3110-01-174-8296 | 2023-08-232 | 40 | DIBBS |
| 3110-01-174-8296 | 2023-01-19 | 43 | DIBBS |
| 3110-01-174-8296 | 2022-10-297 | 58 | DIBBS |
| 3110-01-174-8296 | 2022-10-289 | 58 | DIBBS |
| 3110-01-174-8296 | 2022-06-173 | 136 | DIBBS |
| 3110-01-174-8296 | 2022-02-56 | 40 | DIBBS |
| 3110-01-174-8296 | 2022-02-48 | 40 | DIBBS |
| 3110-01-174-8296 | 2021-11-330 | 40 | DIBBS |
| 3110-01-174-8296 | 2021-11-322 | 40 | DIBBS |
| 3110-01-174-8296 | 2021-10-280 | 124 | DIBBS |
| 3110-01-174-8296 | 2021-08-227 | 48 | DIBBS |
| 3110-01-174-8296 | 2021-04-110 | 72 | DIBBS |
| 3110-01-174-8296 | 2020-12-350 | 40 | DIBBS |
| 3110-01-174-8296 | 2019-08-218 | 214 | DIBBS |
| 3110-01-174-8296 | 2019-04-100 | 139 | DIBBS |
| 3110-01-174-8296 | 2019-04-92 | 139 | DIBBS |
| 3110-01-174-8296 | 2019-03-74 | 618 | DIBBS |
| 3110-01-174-8296 | 2019-03-64 | 618 | DIBBS |
| 3110-01-174-8296 | 2018-04-98 | 443 | DIBBS |
| 3110-01-174-8296 | 2018-03-67 | 48 | DIBBS |
| 3110-01-174-8296 | 2018-03-61 | 48 | DIBBS |
| 3110-01-174-8296 | 2018-02-52 | 48 | DIBBS |
| 3110-01-174-8296 | 2016-12-350 | 266 | DIBBS |
| 3110-01-174-8296 | 2011-11-307 | 154 | DIBBS |
| 3110-01-174-8296 | 2011-09-246 | 54 | DIBBS |
| BACB10A689 | 2009-09-251 | 1 | United States |
| MS27640-4G | 2009-09-251 | 5 | United States |
| 3110-01-174-8296 | 2008-10-297 | 12 | US |
| 3110-01-174-8296 | 2007-12-338 | 12 | US |
Cross Reference | NSN 3110-01-174-8296
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BACB10A689 | 81205 | THE BOEING COMPANY DBA BOEING |
| KP4 E6531 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| KP4FS428 | 06144 | INDUSTRIAL TECTONICS BEARINGS CORPORATION |
| KP4FS428 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| LLKP-4 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| MS27640-4G | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-174-8296
Related Products | NSN 3110-01-174-8296
Technical Data | NSN 3110-01-174-8296
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING PLASTIC POLYTETRAFLUOROETHYLENE AND GLASS FIBER SEAL |
| SURFACE TREATMENT | CADMIUM EXPOSED SURFACES AS MOUNTED |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE EXPOSED SURFACES AS MOUNTED |
| STYLE DESIGNATOR | 196 SINGLE ROW INNER RING EXTENDED BOTH SIDES |
| BORE DIAMETER | 0.2495 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 0.9009 INCHES MINIMUM AND 0.9014 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.3300 INCHES MINIMUM AND 0.3350 INCHES MAXIMUM |
| INNER RING WIDTH | 0.4790 INCHES MINIMUM AND 0.4840 INCHES MAXIMUM |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.5 |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | RIGID |
| LOAD DIRECTION | RADIAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS27640-4G |
