Product Details | BEARING RETAINING PLATE
3110-01-193-2926 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Part Alternates: 38623631, 3862363-1, 3110-01-193-2926, 01-193-2926, 3110011932926, 011932926
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 31 OCT 1984 | 01-193-2926 | 22293 ( PLATE, RETAINING, BEARING ) |
Drawings & Photos | NSN 3110-01-193-2926
Cross Reference | NSN 3110-01-193-2926
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3862363-1 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-193-2926
Related Products | NSN 3110-01-193-2926
Technical Data | NSN 3110-01-193-2926
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 356.0 OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8626 TYPE II MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | B1 ROUND |
| OUTSIDE DIAMETER | 2.400 INCHES NOMINAL |

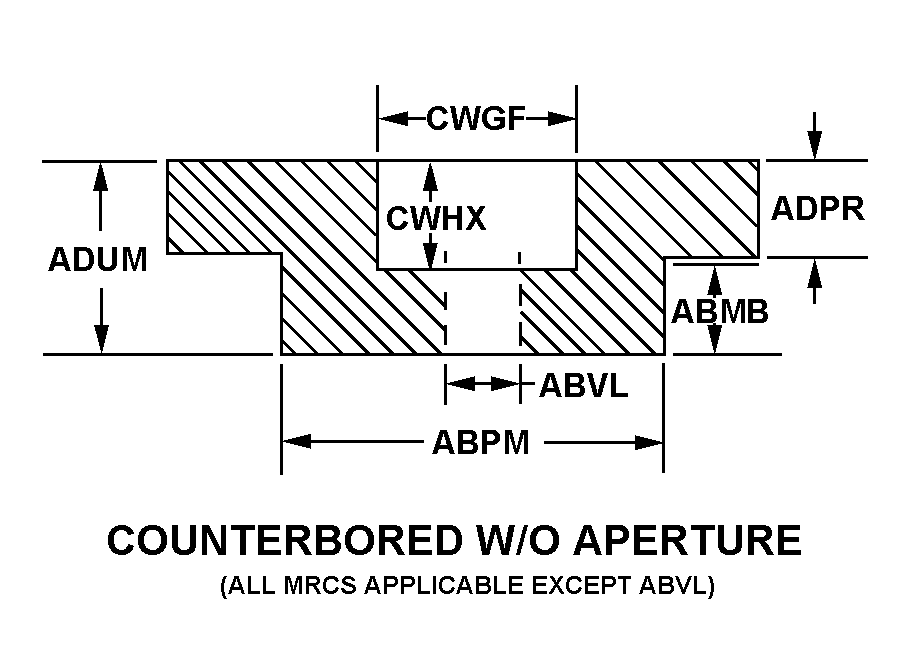

| CROSS-SECTIONAL SHAPE STYLE | C22B COUNTERBORED WITHOUT APERTURE |
| MINOR THICKNESS | 0.118 INCHES MINIMUM AND 0.122 INCHES MAXIMUM |
| BODY DIAMETER | 2.810 INCHES MINIMUM AND 2.813 INCHES MAXIMUM |
| COUNTERBORE DIAMETER | 2.400 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.245 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |
| BODY THICKNESS | 0.100 INCHES NOMINAL |
| OVERALL THICKNESS | 0.363 INCHES MINIMUM AND 0.377 INCHES MAXIMUM |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.497 INCHES NOMINAL |
| MOUNTING HOLE ARRANGEMENT STYLE | D15 SINGLE BOLT HOLE CIRCLE |
| BOLT CIRCLE HOLE QUANTITY | 3 |
| MOUNTING BOLT CIRCLE DIAMETER | 3.000 INCHES NOMINAL |
| SPECIAL FEATURES | THERE ARE FIVE OTHER HOLES;ONE IS 0.168 IN. MIN 0.175 IN. MAX ROUND AND LOCATED ON UPPER RIGHT OF DIAM 0.763 IN. ABOVE CENTER LINE AND 1.435 IN. TO RIGHT OF CENTER LINE;OTHER FOUR HOLES ARE 0.218 IN. MIN 0.226 IN. MAX;STARTING AT TOP FIRST HOLE IS 0.497 IN. TO RIGHT OF CENTER LINE AND 1.626 IN. ABOVE CENTER LINE,SECOND IS 0.497 IN. BELOW CENTER LINE AND 1.626 IN. TO RIGHT OF CENTER LINE,THIRD HOLE IS 0.497 TO LEFT OF CENTER LINE AND 1.626 IN. BELOW CENTER LINE,FOURTH HOLE IS 0.497 IN. ABOVE CENTER LINE AND 1.626 IN. TO LEFT OF CENTER LINE |
| III END ITEM IDENTIFICATION | B-1B ACFT |
| MANUFACTURERS CODE | 99193 |
| DESIGN CONTROL REFERENCE | 3862363-1 |
