NSN 3110-01-201-0666 1827391, 182739-1, 01-201-0666
Product Details | BEARING RETAINING PLATE
3110-01-201-0666 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Part Alternates: 1827391, 182739-1, 3110-01-201-0666, 01-201-0666, 3110012010666, 012010666
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 12 FEB 1985 | 01-201-0666 | 22293 ( PLATE, RETAINING, BEARING ) |
Drawings & Photos | NSN 3110-01-201-0666
Cross Reference | NSN 3110-01-201-0666
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 182739-1 | 71791 | CURTISS-WRIGHT CONTROLS, INC. DIV FLIGHT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-201-0666
Related Products | NSN 3110-01-201-0666
Technical Data | NSN 3110-01-201-0666
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 356.0 OVERALL |

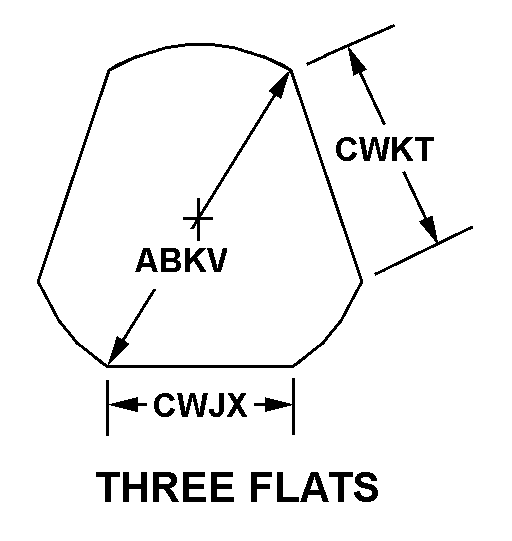

| STYLE DESIGNATOR | B15 THREE FLATS |
| LUG QUANTITY | 3 |
| OUTSIDE DIAMETER | 2.489 INCHES MINIMUM AND 2.490 INCHES MAXIMUM |
| LENGTH OF FLAT ALONG BASE | 3.260 INCHES NOMINAL |
| LENGTH OF FLAT ALONG SIDE | 3.260 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | C10A COUNTERBORED WITH APERTURE |
| MINOR THICKNESS | 0.550 INCHES MINIMUM AND 0.570 INCHES MAXIMUM |
| APERTURE DIAMETER | 1.530 INCHES MINIMUM AND 1.560 INCHES MAXIMUM |
| OVERALL THICKNESS | 1.520 INCHES NOMINAL |
| FIRST COUNTERBORE DIAMETER | 1.890 INCHES MINIMUM AND 1.920 INCHES MAXIMUM |
| SECOND COUNTERBORE DIAMETER | 2.1654 INCHES MINIMUM AND 2.1661 INCHES MAXIMUM |
| SECOND COUNTERBORE DEPTH | 0.600 INCHES NOMINAL |
| FIRST COUNTERBORE DEPTH | 0.340 INCHES NOMINAL |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.340 INCHES NOMINAL |
| MOUNTING HOLE ARRANGEMENT STYLE | D10 THREE HOLES |
| DISTANCE FROM VERTICAL CENTERLINE TO CENTER OF RIGHT HOLE | 1.630 INCHES NOMINAL |
| DISTANCE FROM HORIZONTAL CENTERLINE TO CENTER OF RIGHT HOLE | 1.880 INCHES NOMINAL |
| DISTANCE BETWEEN HOLE CENTERS ALONG BASE | 3.260 INCHES NOMINAL |
| DISTANCE BETWEEN HOLE CENTERS ALONG HEIGHT | 2.820 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | C5B ACFT |
| MANUFACTURERS CODE | 71791 |
| DESIGN CONTROL REFERENCE | 182739-1 |
