NSN 3110-01-207-0100 38623702, 3862370-2, 01-207-0100
Product Details | BEARING RETAINING PLATE
3110-01-207-0100 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Part Alternates: 38623702, 3862370-2, 3110-01-207-0100, 01-207-0100, 3110012070100, 012070100
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 26 APR 1985 | 01-207-0100 | 22293 ( PLATE, RETAINING, BEARING ) |
Drawings & Photos | NSN 3110-01-207-0100
Cross Reference | NSN 3110-01-207-0100
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3862370-2 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-207-0100
Related Products | NSN 3110-01-207-0100
Technical Data | NSN 3110-01-207-0100
| Characteristic | Specifications |
|---|---|
| MATERIAL | MAGNESIUM ALLOY OVERALL |

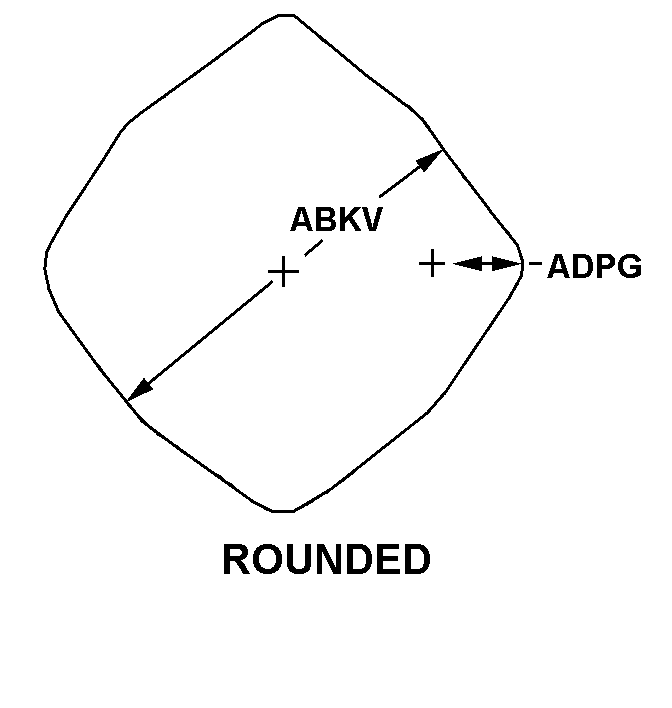

| STYLE DESIGNATOR | B38 ROUNDED |
| OUTSIDE DIAMETER | 4.330 INCHES NOMINAL |
| EAR RADIUS | 0.410 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | C14A COUNTERBORED WITH APERTURE |
| MINOR THICKNESS | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| APERTURE DIAMETER | 2.562 INCHES MINIMUM AND 2.563 INCHES MAXIMUM |
| COUNTERBORE DIAMETER | 3.681 INCHES MINIMUM AND 3.683 INCHES MAXIMUM |
| COUNTERBORE DEPTH | 0.429 INCHES MINIMUM AND 0.431 INCHES MAXIMUM |
| OVERALL THICKNESS | 0.669 INCHES MINIMUM AND 0.791 INCHES MAXIMUM |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.218 INCHES MINIMUM AND 0.226 INCHES MAXIMUM |
| MOUNTING HOLE ARRANGEMENT STYLE | D12 FOUR HOLES |
| DISTANCE BETWEEN HOLES ALONG LENGTH | 3.084 INCHES NOMINAL |
| DISTANCE BETWEEN HOLES ALONG WIDTH | 3.084 INCHES NOMINAL |
| DISTANCE FROM VERTICAL CENTERLINE TO CENTER OF RIGHT HOLE | 1.542 INCHES NOMINAL |
| DISTANCE FROM HORIZONTAL CENTERLINE TO CENTER OF RIGHT HOLE | 1.542 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | B-1B ACFT |
| MANUFACTURERS CODE | 99193 |
| DESIGN CONTROL REFERENCE | 3862370-2 |
Restrictions/Controls & Freight Information | NSN 3110-01-207-0100
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106140 | PLATE/SHEET NOI I/S GALVANIZED ETC |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-207-0100
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | YP | SU:GAS TURBINES AND JET ENGINES NON-AIRCRAFT |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
