Product Details | BEARING RETAINING PLATE
3110-01-258-0911 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Part Alternates: 12349773, 3110-01-258-0911, 01-258-0911, 3110012580911, 012580911
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 27 JUN 1987 | 01-258-0911 | 22293 ( PLATE, RETAINING, BEARING ) |
Drawings & Photos | NSN 3110-01-258-0911
Demand History | NSN 3110-01-258-0911
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-258-0911 | 2020-10-304 | 1 | DIBBS-RFPs |
| 3110-01-258-0911 | 2019-07-191 | 40 | DIBBS |
| 3110-01-258-0911 | 2018-11-310 | 23 | DIBBS |
| 3110-01-258-0911 | 2018-06-156 | 81 | DIBBS |
Cross Reference | NSN 3110-01-258-0911
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12349773 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-258-0911
Related Products | NSN 3110-01-258-0911
Technical Data | NSN 3110-01-258-0911
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1010 OR STEEL COMP 1015 OR STEEL COMP 1016 OR STEEL COMP 1017 OR STEEL COMP 1018 OR STEEL COMP 1020 OR STEEL COMP 1021 OR STEEL COMP 1022 OR STEEL COMP 1025 OVERALL |
| STYLE DESIGNATOR | B1 ROUND |
| OUTSIDE DIAMETER | 3.630 INCHES NOMINAL |

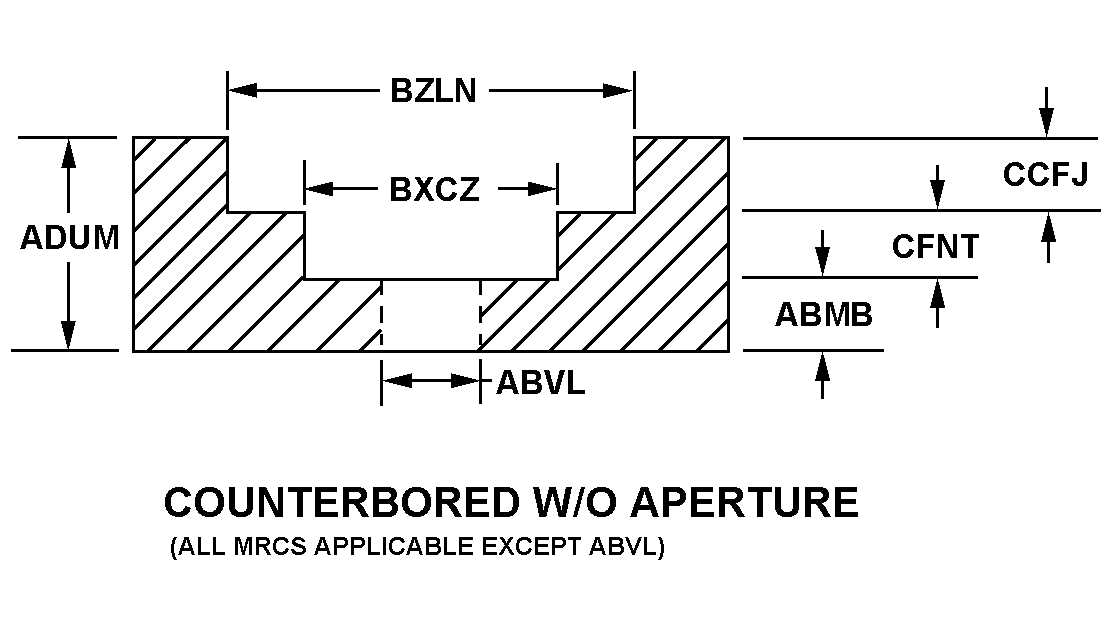

| CROSS-SECTIONAL SHAPE STYLE | C10B COUNTERBORED WITHOUT APERTURE |
| MINOR THICKNESS | 0.250 INCHES MINIMUM AND 0.370 INCHES MAXIMUM |
| APERTURE DIAMETER | 1.7505 INCHES MINIMUM AND 1.7525 INCHES MAXIMUM |
| OVERALL THICKNESS | 2.395 INCHES MINIMUM AND 2.400 INCHES MAXIMUM |
| FIRST COUNTERBORE DIAMETER | 2.240 INCHES NOMINAL |
| SECOND COUNTERBORE DIAMETER | 2.4429 INCHES MINIMUM AND 2.4439 INCHES MAXIMUM |
| SECOND COUNTERBORE DEPTH | 1.422 INCHES NOMINAL |
| FIRST COUNTERBORE DEPTH | 0.665 INCHES NOMINAL |
| MOUNTING HOLE TYPE | ROUND, THREADED |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| MOUNTING HOLE ARRANGEMENT STYLE | D15 SINGLE BOLT HOLE CIRCLE |
| BOLT CIRCLE HOLE QUANTITY | 4 |
| MOUNTING BOLT CIRCLE DIAMETER | 3.000 INCHES NOMINAL |
| SPECIAL FEATURES | FOUR MORE MOUNTING HOLES 0.375 IN. DIA,16 UNC-2B THREADS; 2 HOLES 0.440 IN. MIN,0.560 IN. MAX DIA,0.690 IN. MIN DEEP,180 DEGREES APART |
Restrictions/Controls & Freight Information | NSN 3110-01-258-0911
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
