NSN 3110-01-266-2183 742825, 01-266-2183, 012662183
Product Details | OUTER BEARING RING
3110-01-266-2183 The outer component of a ball or roller bearing which provides a contact surface for the rolling elements of an antifriction bearing.
Part Alternates: 742825, 3110-01-266-2183, 01-266-2183, 3110012662183, 012662183
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 22 OCT 1987 | 01-266-2183 | 00029 ( RING, BEARING, OUTER ) |
Drawings & Photos | NSN 3110-01-266-2183
Demand History | NSN 3110-01-266-2183
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-266-2183 | 2018-05-128 | 83 | DIBBS |
| 3110-01-266-2183 | 2017-06-159 | 28 | DIBBS |
| 3110-01-266-2183 | 2017-04-103 | 20 | DIBBS |
| 3110-01-266-2183 | 2015-02-35 | 19 | DIBBS |
| 3110-01-266-2183 | 2014-09-246 | 15 | DIBBS |
| 3110-01-266-2183 | 2013-06-161 | 11 | DIBBS |
| 3110-01-266-2183 | 2013-05-125 | 5 | DIBBS |
| 3110-01-266-2183 | 2013-01-03 | 4 | DIBBS |
| 3110-01-266-2183 | 2012-04-96 | 11 | DIBBS |
| 3110-01-266-2183 | 2012-02-38 | 4 | DIBBS |
| 3110-01-266-2183 | 2012-01-27 | 7 | DIBBS |
| 3110-01-266-2183 | 2011-04-108 | 3 | DIBBS |
| 3110-01-266-2183 | 2011-01-07 | 1 | DIBBS |
| 3110-01-266-2183 | 2010-10-286 | 3 | DIBBS |
| 3110-01-266-2183 | 2010-08-217 | 3 | DIBBS |
Cross Reference | NSN 3110-01-266-2183
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 742825 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-266-2183
Related Products | NSN 3110-01-266-2183
Technical Data | NSN 3110-01-266-2183
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E9310 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS6265 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |

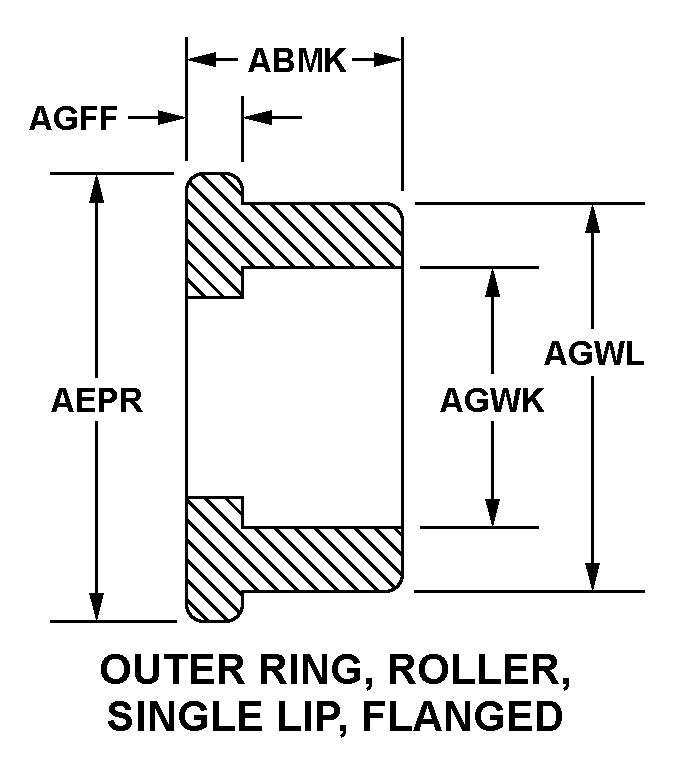

| STYLE DESIGNATOR | 514 OUTER RING, ROLLER, SINGLE LIP, FLANGED |
| OVERALL WIDTH | 0.3750 INCHES MINIMUM AND 0.3850 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 3.3140 INCHES MINIMUM AND 3.3240 INCHES MAXIMUM |
| FLANGE WIDTH | 0.0890 INCHES MINIMUM AND 0.0990 INCHES MAXIMUM |
| LARGEST BORE DIAMETER | 1.7362 INCHES MINIMUM AND 1.7367 INCHES MAXIMUM |
| SMALLEST OUTSIDE DIAMETER | 1.9376 INCHES MINIMUM AND 1.9380 INCHES MAXIMUM |
| SURFACE FINISH | GROUND |
| SPECIAL FEATURES | FLANGE PROTRUDES IN 4 PLACES; EACH WITH 0.188 THROUGH HOLE |
| MANUFACTURERS CODE | 99167 |
| DESIGN CONTROL REFERENCE | 742825 |
Restrictions/Controls & Freight Information | NSN 3110-01-266-2183
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-266-2183
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | HS | SX:AIRCRAFT HYDRAULIC SYSTEMS AND COMPONENTS |
| Price Validation | P | The current standard price is the initial negotiated provisioned price.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
