NSN 3110-01-268-5995 2182196, 2187144, 2187145

Product Details | CYLINDRICAL ROLLER BEARING

3110-01-268-5995 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.

Part Alternates: 2182196, 2187144, 2187145, 707494, 742936, 3110-01-268-5995, 01-268-5995, 3110012685995, 012685995

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	04 DEC 1987	01-268-5995	00015 ( BEARING, ROLLER, CYLINDRICAL )

Drawings & Photos | NSN 3110-01-268-5995

Cross Reference | NSN 3110-01-268-5995

Part Number	Cage Code	Manufacturer
2182196	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
2182196	77445	UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS
2187144	77445	UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS
2187144	78118	MPB CORPORATION DBA TIMKEN AEROSPACE
2187145	77445	UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS
707494	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
707494	77445	UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS
742936	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
742936	77445	UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-01-268-5995

Compare

Related Products | NSN 3110-01-268-5995

3110-01-268-6790, 3110-01-268-6897, 3110-01-268-6983, 3110-01-268-6984, 3110-01-268-6985

Technical Data | NSN 3110-01-268-5995

Characteristic	Specifications
MATERIAL	STEEL OVERALL

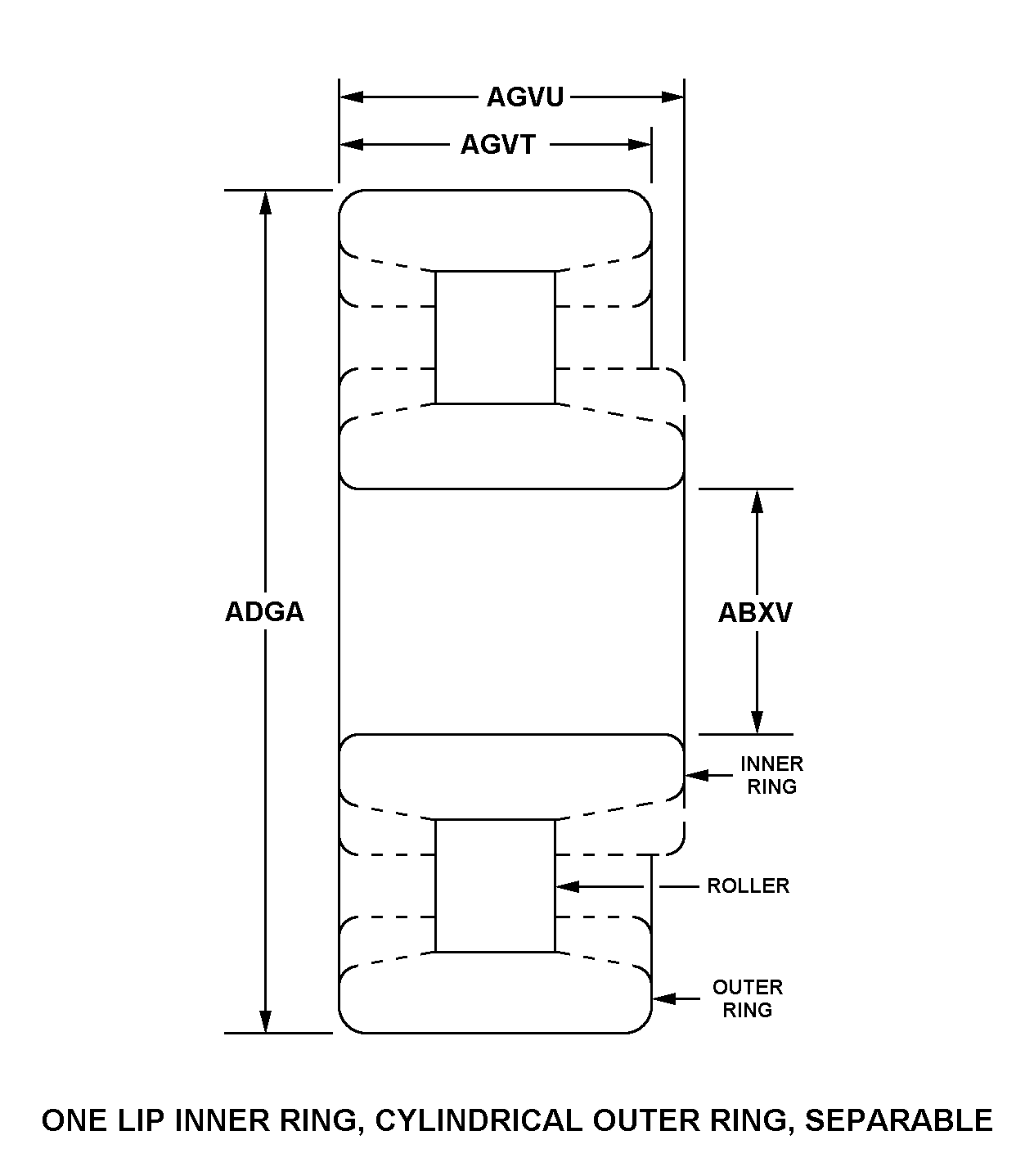

STYLE DESIGNATOR	266D ONE LIP INNER RING, CYLINDRICAL OUTER RING, SEPARABLE
BORE DIAMETER	4.8936 INCHES MINIMUM AND 4.8939 INCHES MAXIMUM
OVERALL OUTSIDE DIAMETER	6.7451 INCHES MINIMUM AND 6.7461 INCHES MAXIMUM
OUTER RING WIDTH	0.9399 INCHES MINIMUM AND 0.9449 INCHES MAXIMUM
INNER RING WIDTH	1.0580 INCHES MINIMUM AND 1.0630 INCHES MAXIMUM
STANDARD TOLERANCE DESIGNATION	ABEC NO.5
BORE SHAPE	STRAIGHT
SURFACE FINISH	UNGROUND
LOCATING FEATURE	ONE DIRECTION
SPECIAL FEATURES	USED ON TURBO FOR JET ENGINE
III END ITEM IDENTIFICATION	F-111 ACFT

Restrictions/Controls & Freight Information | NSN 3110-01-268-5995

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	D	Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.)
Controlled Inventory Item Code:	7	NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Precious Metals Indicator Code:	S	Item contains silver
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	SX	Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	PQ	SX:PRATT & WHITNEY ENGINES AND COMPONENTS, TF-30
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	P	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	7	NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material ID	PQ	TURBO PROPENGINESTF30 P412/P412A
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	7	NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
