NSN 3110-01-320-8244 2124556, 01-320-8244, 013208244
Product Details | BEARING RETAINING PLATE
3110-01-320-8244 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Part Alternates: 2124556, 3110-01-320-8244, 01-320-8244, 3110013208244, 013208244
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 04 JUN 1990 | 01-320-8244 | 22293 ( PLATE, RETAINING, BEARING ) |
Drawings & Photos | NSN 3110-01-320-8244
Cross Reference | NSN 3110-01-320-8244
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2124556 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-320-8244
Related Products | NSN 3110-01-320-8244
Technical Data | NSN 3110-01-320-8244
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE II,CLASS 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | B1 ROUND |
| OUTSIDE DIAMETER | 5.000 INCHES NOMINAL |

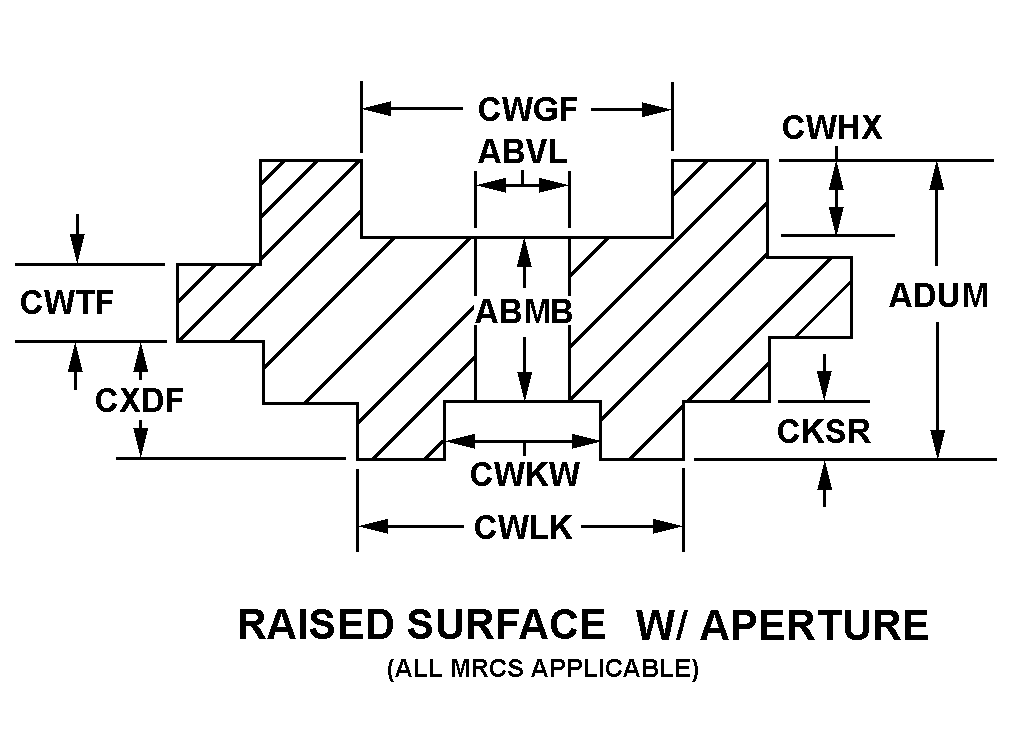

| CROSS-SECTIONAL SHAPE STYLE | C28A RAISED SURFACES WITH APERTURE |
| APERTURE DIAMETER | 1.751 INCHES MINIMUM AND 1.752 INCHES MAXIMUM |
| COUNTERBORE DIAMETER | 2.625 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.562 INCHES NOMINAL |
| OVERALL THICKNESS | 2.375 INCHES NOMINAL |
| INSIDE RAISED SURFACE DIAMETER | 2.312 INCHES MINIMUM AND 2.313 INCHES MAXIMUM |
| OUTSIDE RAISED SURFACE DIAMETER | 3.187 INCHES NOMINAL |
| RAISED SURFACE HEIGHT | 1.281 INCHES NOMINAL |
| FLANGE THICKNESS | 0.376 INCHES NOMINAL |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.342 INCHES MINIMUM AND 0.352 INCHES MAXIMUM |
| MOUNTING HOLE ARRANGEMENT STYLE | D14 TWO BOLT HOLE CIRCLES |
| FIRST BOLT CIRCLE HOLE QUANTITY | 6 |
| SECOND BOLT CIRCLE HOLE QUANTITY | 6 |
| FIRST BOLT CIRCLE DIAMETER | 2.687 INCHES NOMINAL |
| SECOND BOLT CIRCLE DIAMETER | 4.375 INCHES NOMINAL |
| SPECIAL FEATURES | A SECOND SET OF BOLT HOLES WITH 0.250-20UNC-3BX.50 MIN FULL THD DEPTH HOLE DEPTH 1.06 MAX AND CSK 90 DEGREES PLUS OR MINUS 10 DEGREES BY 0.28 INCHES PLUS OR MINUS 0101 INCH;THE THIRD SET OF BOLT HOLES WITH 0.3125-18UNC-3B THRU 2 HOLES ARE 180 DEGREES APART |
Restrictions/Controls & Freight Information | NSN 3110-01-320-8244
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-320-8244
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
