NSN 3110-01-342-0424 833123-003, 01-342-0424, 833123003
Product Details | BEARING RETAINING PLATE
3110-01-342-0424 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Part Alternates: 833123-003, 3110-01-342-0424, 01-342-0424, 3110013420424, 833123003, 013420424
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 14 JUL 1991 | 01-342-0424 | 22293 ( PLATE, RETAINING, BEARING ) |
Drawings & Photos | NSN 3110-01-342-0424
Cross Reference | NSN 3110-01-342-0424
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 833123-003 | 22915 | NORTHROP GRUMMAN CORP ELECTRONIC SYSTEMS DEFENSIVE SYSTEM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-342-0424
Related Products | NSN 3110-01-342-0424
Technical Data | NSN 3110-01-342-0424
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP XM-12 OR STEEL COMP 303SE OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A564 ASSN STD 1ST MATERIAL RESPONSE OR ASTM A582 ASSN STD 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35,TYPE 4 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | B1 ROUND |
| OUTSIDE DIAMETER | 1.850 INCHES MINIMUM AND 1.890 INCHES MAXIMUM |

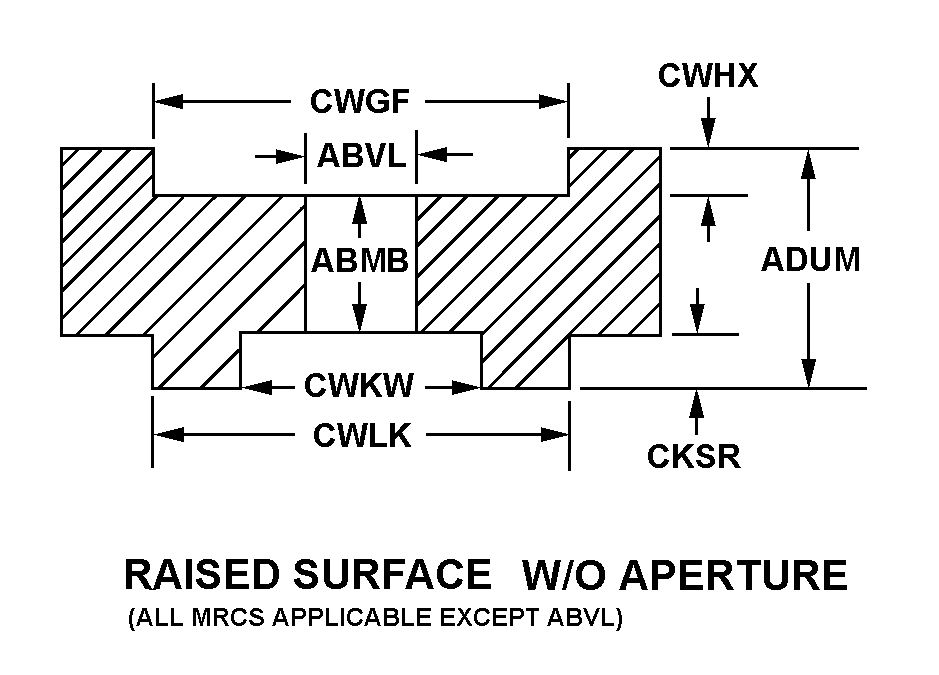

| CROSS-SECTIONAL SHAPE STYLE | C12B RAISED SURFACE WITHOUT APERTURE |
| MINOR THICKNESS | 0.135 INCHES MINIMUM AND 0.145 INCHES MAXIMUM |
| COUNTERBORE DIAMETER | 1.0234 INCHES MINIMUM AND 1.0236 INCHES MAXIMUM |
| COUNTERBORE DEPTH | 0.262 INCHES NOMINAL |
| OVERALL THICKNESS | 0.445 INCHES MINIMUM AND 0.455 INCHES MAXIMUM |
| INSIDE RAISED SURFACE DIAMETER | 1.078 INCHES NOMINAL |
| OUTSIDE RAISED SURFACE DIAMETER | 1.2496 INCHES MINIMUM AND 1.2498 INCHES MAXIMUM |
| RAISED SURFACE HEIGHT | 0.185 INCHES MINIMUM AND 0.195 INCHES MAXIMUM |
| MOUNTING HOLE TYPE | ROUND, THREADED, COUNTERSUNK |
| COUNTERSINK ANGLE | 80.0 DEGREES MINIMUM AND 100.0 DEGREES MAXIMUM |
| COUNTERSINK DIAMETER | 0.115 INCHES MINIMUM AND 0.130 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| MOUNTING HOLE ARRANGEMENT STYLE | D15 SINGLE BOLT HOLE CIRCLE |
| BOLT CIRCLE HOLE QUANTITY | 16 |
| MOUNTING BOLT CIRCLE DIAMETER | 1.562 INCHES NOMINAL |
| SURFACE FINISH | 32.0 MICROINCHES RAISED SURFACE |
Restrictions/Controls & Freight Information | NSN 3110-01-342-0424
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-342-0424
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
