NSN 3110-01-344-0703 6544C0611, 6544C061-1, 01-344-0703
Product Details | BEARING RETAINING PLATE
3110-01-344-0703 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Part Alternates: 6544C0611, 6544C061-1, 3110-01-344-0703, 01-344-0703, 3110013440703, 013440703
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 22 AUG 1991 | 01-344-0703 | 22293 ( PLATE, RETAINING, BEARING ) |
Drawings & Photos | NSN 3110-01-344-0703
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-01-344-0703
Technical Data | NSN 3110-01-344-0703
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1020 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI ASSN STD SINGLE MATERIAL RESPONSE OVERALL |

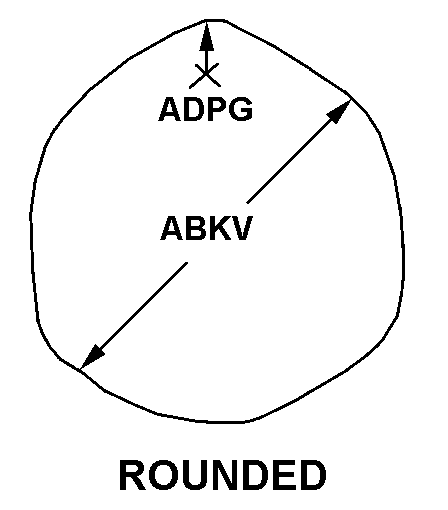

| STYLE DESIGNATOR | B22 ROUNDED |
| OUTSIDE DIAMETER | 5.500 INCHES NOMINAL |
| MINOR THICKNESS | 0.6900 INCHES NOMINAL |
| APERTURE DIAMETER | 2.874 INCHES MINIMUM AND 2.876 INCHES MAXIMUM |
| COUNTERBORE DIAMETER | 3.2600 INCHES MINIMUM AND 3.3100 INCHES MAXIMUM |
| COUNTERBORE DEPTH | 0.2800 INCHES MINIMUM AND 0.3400 INCHES MAXIMUM |
| BODY THICKNESS | 0.420 INCHES NOMINAL |
| OVERALL THICKNESS | 1.000 INCHES NOMINAL |
| OUTSIDE RAISED SURFACE DIAMETER | 3.2000 INCHES NOMINAL |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.5300 INCHES NOMINAL |
| MOUNTING HOLE ARRANGEMENT STYLE | D15 SINGLE BOLT HOLE CIRCLE |
| BOLT CIRCLE HOLE QUANTITY | 3 |
| MOUNTING BOLT CIRCLE DIAMETER | 4.5000 INCHES NOMINAL |
