NSN 3110-01-364-7786 L8, 01-364-7786, 013647786
Product Details | LINEAR MOTION BALL BEARING
3110-01-364-7786 A cylindrical device, containing three or more oblong ball circuits complete with a retainer to guide the balls in their proper path, specifically designed for use on sliding linear motion shafts to minimize friction and wear.
Part Alternates: L8, 3110-01-364-7786, 01-364-7786, 3110013647786, 013647786
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 25 SEP 1992 | 01-364-7786 | 61484 ( BEARING, BALL, LINEAR MOTION ) |
Drawings & Photos | NSN 3110-01-364-7786
Cross Reference | NSN 3110-01-364-7786
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| L8 | 70854 | BARDEN CORPORATION, THE DIV BARDEN PRECISION BEARINGS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-01-364-7786
Technical Data | NSN 3110-01-364-7786
| Characteristic | Specifications |
|---|---|

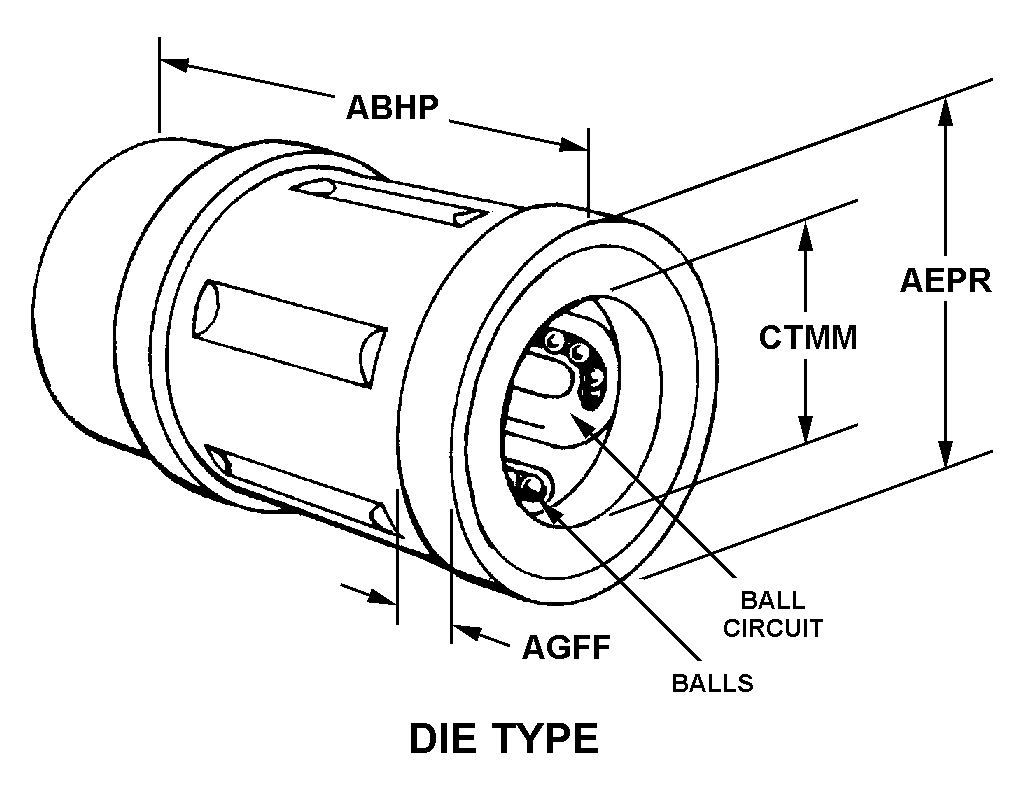

| STYLE DESIGNATOR | 242 DIE TYPE |
| OVERALL LENGTH | 1.2350 INCHES MINIMUM AND 1.2500 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 0.8746 INCHES MINIMUM AND 0.8750 INCHES MAXIMUM |
| WORKING BORE DIAMETER | 0.4995 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| ALIGNMENT TYPE | RIGID |
Restrictions/Controls & Freight Information | NSN 3110-01-364-7786
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
