NSN 3110-01-371-4095 JLM10494890N04, JLM104948-90N04, 802961
Product Details | TAPERED ROLLER BEARING
3110-01-371-4095 A cylindrical device in which the inner cone or outer cup turns upon a single or double row of tapered hardened rollers which roll easily in a race, thus minimizing friction and designed to carry a radial load and capable of sustaining axial thrust. Excludes BEARING, ROLLER, THRUST.
Part Alternates: JLM10494890N04, JLM104948-90N04, 802961, 80296-1, 3110-01-371-4095, 01-371-4095, 3110013714095, 013714095
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 12 FEB 1993 | 01-371-4095 | 00021 ( BEARING, ROLLER, TAPERED ) |

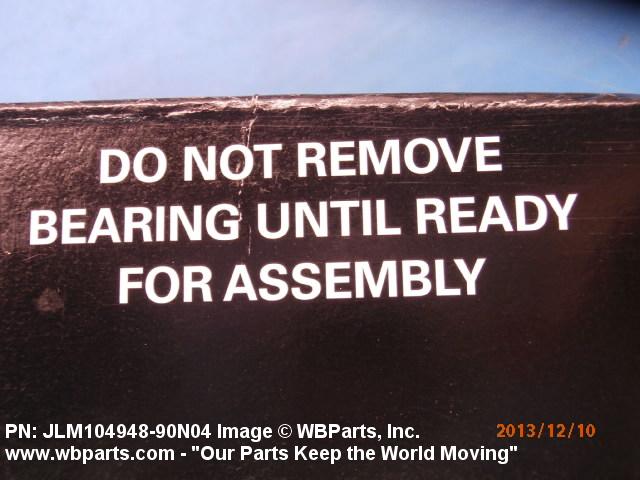

Drawings & Photos | NSN 3110-01-371-4095
Demand History | NSN 3110-01-371-4095
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 802961 | 2019-11-323 | 1 | KE |
| JLM10494890N04 | 2013-08-213 | 3 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-01-371-4095
Technical Data | NSN 3110-01-371-4095
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1020 OR STEEL COMP 1040 CAGE STEEL COMP 4320 OR STEEL COMP 4620 OR STEEL COMP 8620 CONE STEEL COMP 4320 OR STEEL COMP 4620 OR STEEL COMP 8620 CUP STEEL COMP 4320 OR STEEL COMP 4620 OR STEEL COMP 8620 ROLLER STEEL COMP 1020 OR STEEL COMP 1040 SPACER |
| STYLE DESIGNATOR | 388 STRAIGHT BORE, SINGLE CUPS, SINGLE CONES CUP AND CONE SPACERS |
| OVERALL WIDTH | 1.9231 INCHES MINIMUM AND 1.9291 INCHES MAXIMUM |
| BORE DIAMETER | 1.9680 INCHES MINIMUM AND 1.9685 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 3.2277 INCHES MINIMUM AND 3.2283 INCHES MAXIMUM |
| BACKFACE CORNER RADIUS | 0.1500 INCHES NOMINAL |
| STANDOUT WIDTH | 0.1869 INCHES NOMINAL |
| CONE CORNER RADIUS | 0.1200 INCHES NOMINAL |
| CONE WIDTH | 0.8465 INCHES NOMINAL |
| CUP WIDTH | 0.6693 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 3110-01-371-4095
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114800 | BEARING,ROLLER,THRUST |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-371-4095
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
