NSN 3110-01-397-5991 4231010301, 423-10-103-01, 01-397-5991
Product Details | BEARING RETAINING PLATE
3110-01-397-5991 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Part Alternates: 4231010301, 423-10-103-01, 3110-01-397-5991, 01-397-5991, 3110013975991, 013975991
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 14 OCT 1994 | 01-397-5991 | 22293 ( PLATE, RETAINING, BEARING ) |
Drawings & Photos | NSN 3110-01-397-5991
Cross Reference | NSN 3110-01-397-5991
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 423-10-103-01 | 58419 | SICMA AERO SEAT SERVICES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-397-5991
Related Products | NSN 3110-01-397-5991
Technical Data | NSN 3110-01-397-5991
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| STYLE DESIGNATOR | B30 SQUARE |
| LENGTH | 2.762 INCHES NOMINAL |

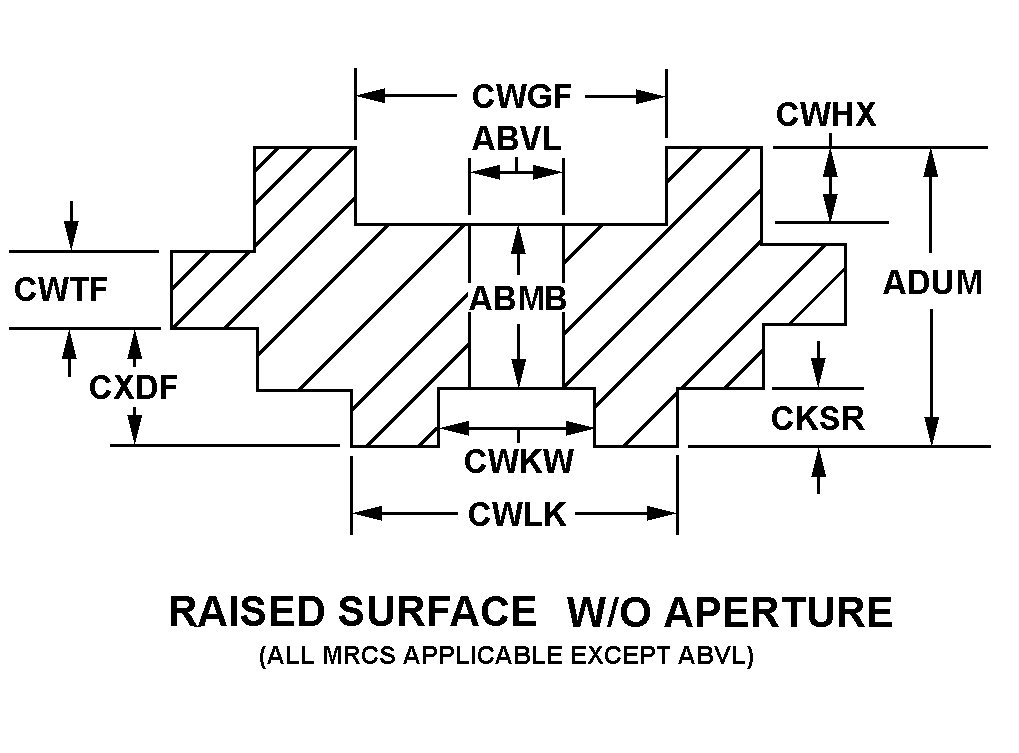

| CROSS-SECTIONAL SHAPE STYLE | C28B RAISED SURFACES WITHOUT APERTURE |
| MINOR THICKNESS | 0.666 INCHES NOMINAL |
| COUNTERBORE DIAMETER | 1.368 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.388 INCHES NOMINAL |
| OVERALL THICKNESS | 0.664 INCHES NOMINAL |
| INSIDE RAISED SURFACE DIAMETER | 1.368 INCHES NOMINAL |
| OUTSIDE RAISED SURFACE DIAMETER | 1.560 INCHES NOMINAL |
| RAISED SURFACE HEIGHT | 0.140 INCHES NOMINAL |
| RAISED SURFACE TO FLANGE HEIGHT | 0.140 INCHES NOMINAL |
| FLANGE THICKNESS | 0.130 INCHES NOMINAL |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.078 INCHES NOMINAL |
| MOUNTING HOLE ARRANGEMENT STYLE | D12 FOUR HOLES |
| DISTANCE BETWEEN HOLES ALONG LENGTH | 2.176 INCHES NOMINAL |
| DISTANCE BETWEEN HOLES ALONG WIDTH | 2.168 INCHES NOMINAL |
| DISTANCE FROM VERTICAL CENTERLINE TO CENTER OF RIGHT HOLE | 1.008 INCHES NOMINAL |
| DISTANCE FROM HORIZONTAL CENTERLINE TO CENTER OF RIGHT HOLE | 0.960 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | HH65 COAST GUARD HELICOPTER |
| MANUFACTURERS CODE | 58419 |
| DESIGN CONTROL REFERENCE | 423-10-103-01 |
Restrictions/Controls & Freight Information | NSN 3110-01-397-5991
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 3110-01-397-5991
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | A | Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required. |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
