NSN 3110-01-399-3938 R213C82, 597385.MIL, 597385MIL

Product Details | CYLINDRICAL ROLLER BEARING

3110-01-399-3938 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.

Part Alternates: R213C82, 597385.MIL, 597385MIL, 23058593, 3110-01-399-3938, 01-399-3938, 3110013993938, 013993938

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	23 NOV 1994	01-399-3938	00015 ( BEARING, ROLLER, CYLINDRICAL )

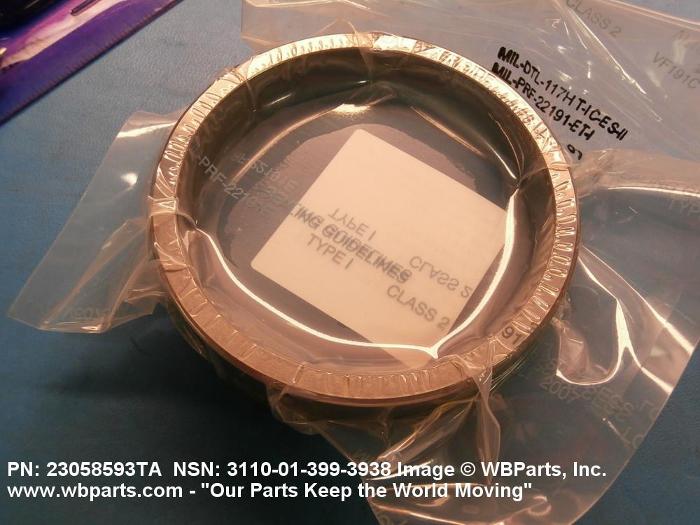

Drawings & Photos | NSN 3110-01-399-3938

Part Number	Request Date	QTY	Origin
3110-01-399-3938	2021-02-36	4	CA
23058593	2020-02-50	77	DIBBS
597385.MIL	2020-02-50	77	DIBBS
23058593	2019-07-205	188
3110-01-399-3938	2019-07-204	188	NECO
597385.MIL	2018-12-363	169
3110-01-399-3938	2018-12-362	169	NECO
597385.MIL	2018-09-244	56
3110-01-399-3938	2018-08-243	56	NECO
597385.MIL	2015-04-115	147
3110-01-399-3938	2015-04-113	147	NECO
597385.MIL	2015-04-105	147
3110-01-399-3938	2015-04-104	147	NECO
597385.MIL	2014-05-142	186
3110-01-399-3938	2014-05-141	186	NECO
3110-01-399-3938	2013-01-11	1	United States
597385.MIL	2012-06-160	205
3110-01-399-3938	2012-06-158	205	NECO
597385.MIL	2012-05-123	205
3110-01-399-3938	2012-05-122	205	NECO
3110-01-399-3938	2011-10-301	50	United States
3110-01-399-3938	2010-03-62	45	DIBBS
3110-01-399-3938	2008-12-337	2	DE
3110-01-399-3938	2008-07-212	2	US
3110-01-399-3938	2008-07-212	2	US
3110-01-399-3938	2008-07-211	2	US
3110-01-399-3938	2007-10-295	100	DIBBS
3110-01-399-3938	2007-10-278	100	DIBBS

Cross Reference | NSN 3110-01-399-3938

Part Number	Cage Code	Manufacturer
23058593	36069	FAG AEROSPACE INC
23058593	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
23058593	63005	ROLLS-ROYCE CORPORATION
597385.MIL	30003	NAVAL AIR SYSTEMS COMMAND
R213C82	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-01-399-3938

Compare

Related Products | NSN 3110-01-399-3938

3110-01-399-3978, 3110-01-399-3997, 3110-01-399-4112, 3110-01-399-4625, 3110-01-399-4626

Technical Data | NSN 3110-01-399-3938

Characteristic	Specifications
MATERIAL	STEEL COMP 4340 CAGE STEEL COMP M50 EXPOSED SURFACES OF STUD AND WASHER AS MOUNTED STEEL COMP M50 INNER RING STEEL COMP M50 OUTER RING
STYLE DESIGNATOR	266A CYLINDRICAL INNER RING, CYLINDRICAL OUTER RING, SEPARABLE
BORE DIAMETER	2.5588 INCHES MINIMUM AND 2.5591 INCHES MAXIMUM
OVERALL OUTSIDE DIAMETER	4.1837 INCHES MINIMUM AND 4.1840 INCHES MAXIMUM
OUTER RING WIDTH	1.0575 INCHES MINIMUM AND 1.0625 INCHES MAXIMUM
MANUFACTURERS CODE	63005
MFR SOURCE CONTROLLING REFERENCE	23058593

Restrictions/Controls & Freight Information | NSN 3110-01-399-3938

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	B	Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-01-399-3938

Air Force
Navy

Category	Code	Description
Materiel Management Aggregation Code	OJ	SX:"ALLISON JET ENGINES & COMPONENTS, T-56"
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	FHZ	Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	P	Stock Fund (except Munitions)
Acquisition Advice Codes	C	SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures.
Controlled Item Code	I	AIRCRAFT ENGINE EQUIPMENT AND PARTS
Shelf Life Code	0	Nondeteriorative

Category	Code	Description
Cognizance Codes	7R	Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia
Special Material ID	DQ	TURBO PROPENGINES(T56)
Source of Supply	NRP	NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098
Agency	DN	Department of the Navy
Service Organization	L	Lead Service - 22 (Repairable)
Reparability	H	Depot Level Reparable
Acquisition Advice Codes	C	SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures.
Controlled Item Code	I	AIRCRAFT ENGINE EQUIPMENT AND PARTS
Shelf Life Code	0	Nondeteriorative
