NSN 3110-01-418-2515 80325/80385, 8032580385, 01-418-2515
Product Details | TAPERED ROLLER BEARING
3110-01-418-2515 A cylindrical device in which the inner cone or outer cup turns upon a single or double row of tapered hardened rollers which roll easily in a race, thus minimizing friction and designed to carry a radial load and capable of sustaining axial thrust. Excludes BEARING, ROLLER, THRUST.
Part Alternates: 80325/80385, 8032580385, 3110-01-418-2515, 01-418-2515, 3110014182515, 014182515
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 23 AUG 1995 | 01-418-2515 | 00021 ( BEARING, ROLLER, TAPERED ) |
Drawings & Photos | NSN 3110-01-418-2515
Cross Reference | NSN 3110-01-418-2515
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 80325/80385 | 60038 | TIMKEN CORPORATION, THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-01-418-2515
Technical Data | NSN 3110-01-418-2515
| Characteristic | Specifications |
|---|---|

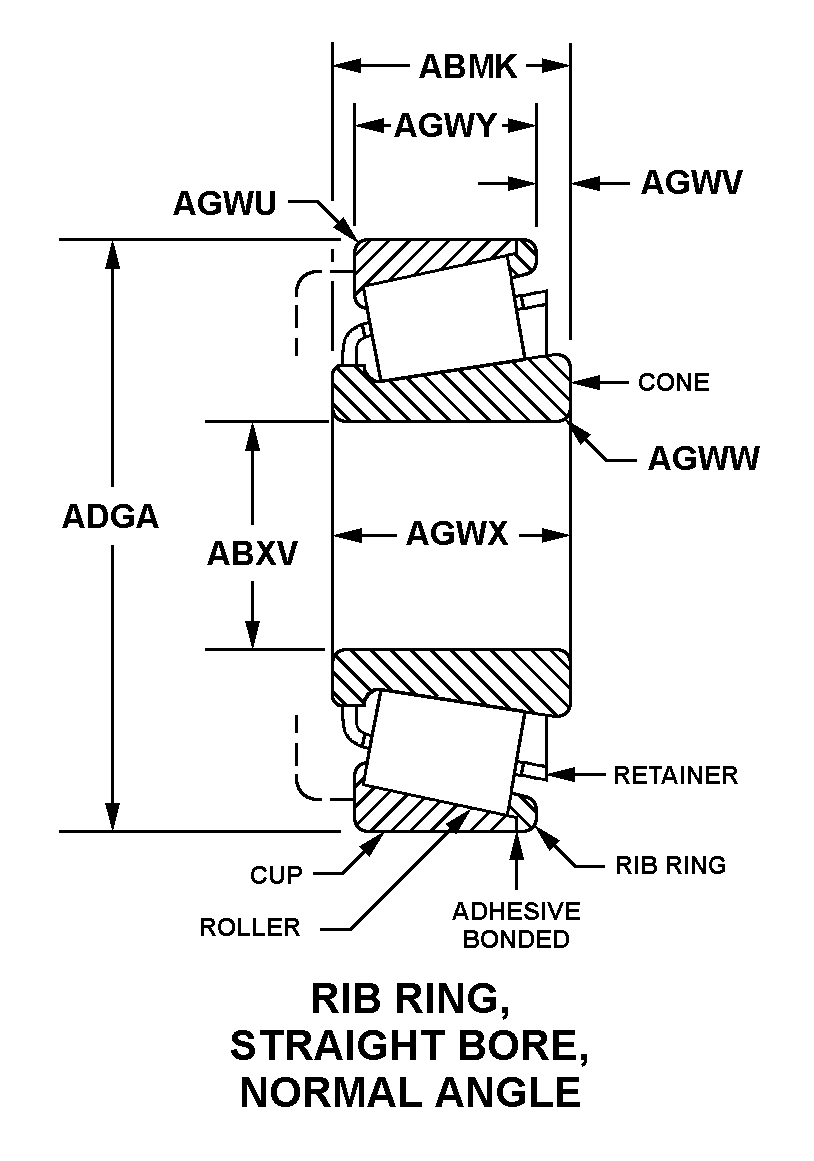

| STYLE DESIGNATOR | 402 RIB RING, STRAIGHT BORE, NORMAL ANGLE |
| OUTSIDE DIAMETER | 20.0800 INCHES NOMINAL |
| OVERALL WIDTH | 1.8125 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 21.0000 INCHES NOMINAL |
| CUP WIDTH | 1.3750 INCHES NOMINAL |
| LUBRICATION MATERIAL | OIL |
| SPECIAL FEATURES | ISO CONE AND CUP COMBINATIONS ARE DESIGNATED WITH COMMON PART NUMBERS AND SHOULD BE PURCHASED AS AN ASSEMBLY |
| III END ITEM IDENTIFICATION | INTERMEDIATE ASSEMBLY; P/N B8107050 ONBOARD WLB 175 FT COAST GUARD VESSELS |
| MANUFACTURERS CODE | 60038 |
| DESIGN CONTROL REFERENCE | 80325/80385 |
Restrictions/Controls & Freight Information | NSN 3110-01-418-2515
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 3110-01-418-2515
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | S | Stock Fund item managed for the Coast Guard by the respective Inventory Control Point. A funded requisition is required |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
