NSN 3110-01-437-5450 L949P9D, L9-49P9D, 1741AS3021
Product Details | RADIAL AND THRUST ROLLER BEARING
3110-01-437-5450 A bearing consisting of a roller radial unit and a roller thrust unit. The inner ring of the radial unit is integrally one ring of the thrust unit. Excludes items in which the same row of rollers accommodates both radial and end thrust.
Part Alternates: L949P9D, L9-49P9D, 1741AS3021, 1741AS302-1, 3110-01-437-5450, 01-437-5450, 3110014375450, 014375450
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 17 OCT 1996 | 01-437-5450 | 18037 ( BEARING, ROLLER, RADIAL AND THRUST ) |
Drawings & Photos | NSN 3110-01-437-5450
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-01-437-5450
Technical Data | NSN 3110-01-437-5450
| Characteristic | Specifications |
|---|---|

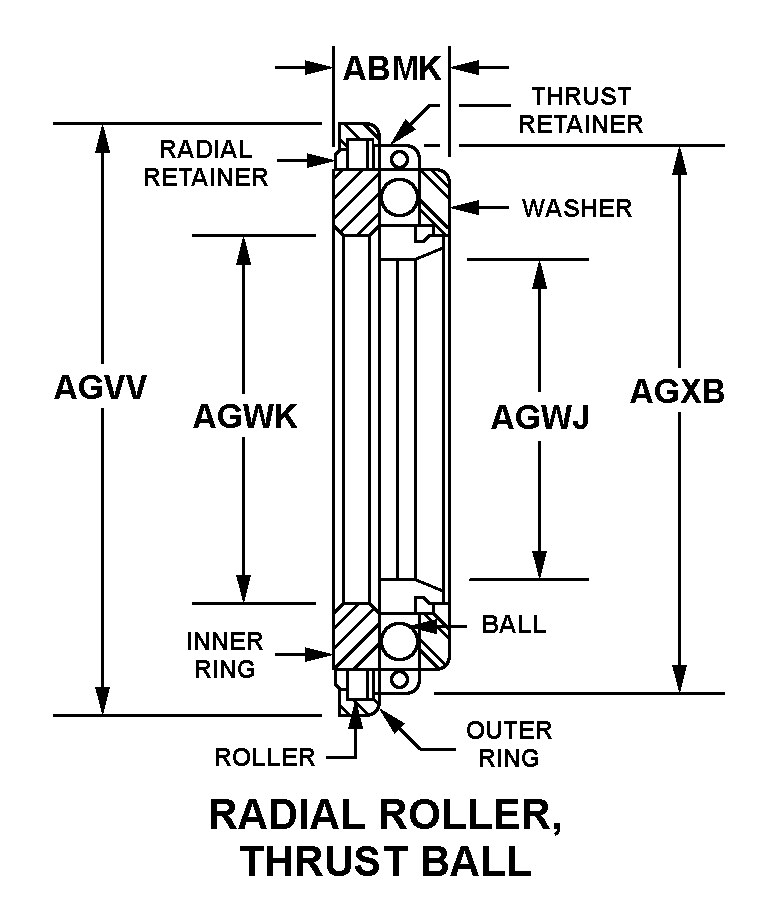

| STYLE DESIGNATOR | 316 RADIAL ROLLER, THRUST BALL |
| OVERALL WIDTH | 3.54 MILLIMETERS NOMINAL |
| OUTER RING OUTSIDE DIAMETER | 55.12 MILLIMETERS NOMINAL |
| BORE SMALLEST DIAMETER | 43.50 MILLIMETERS NOMINAL |
| LARGEST BORE DIAMETER | 46.97 MILLIMETERS NOMINAL |
| THRUST UNIT OUTSIDE DIAMETER | 51.85 MILLIMETERS NOMINAL |
| MANUFACTURERS CODE | 30003 |
| MFR SOURCE CONTROLLING REFERENCE | 1741AS302-1 |
Restrictions/Controls & Freight Information | NSN 3110-01-437-5450
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-437-5450
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
