NSN 3110-01-465-5996 AMB543DD015G, AMB543DD-015G, AMB543DD015M
Product Details | AIRFRAME BALL BEARING
3110-01-465-5996 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.
Part Alternates: AMB543DD015G, AMB543DD-015G, AMB543DD015M, AMB543DD-015M, 38950-00901-106, 3110-01-465-5996, 01-465-5996, 3110014655996, 3895000901106, 014655996
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 15 JUN 1999 | 01-465-5996 | 00041 ( BEARING, BALL, AIRFRAME ) |

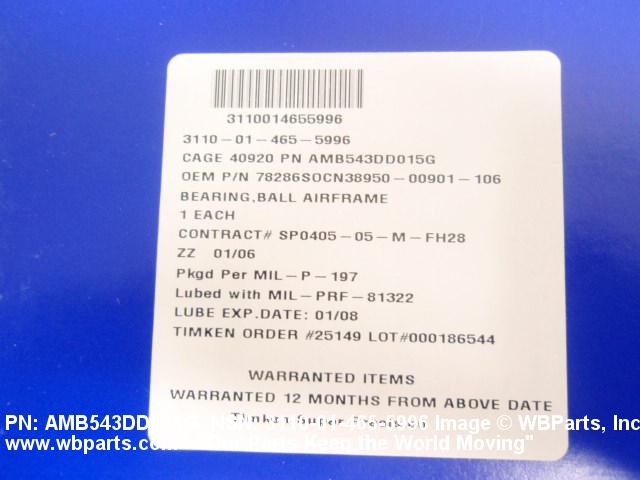

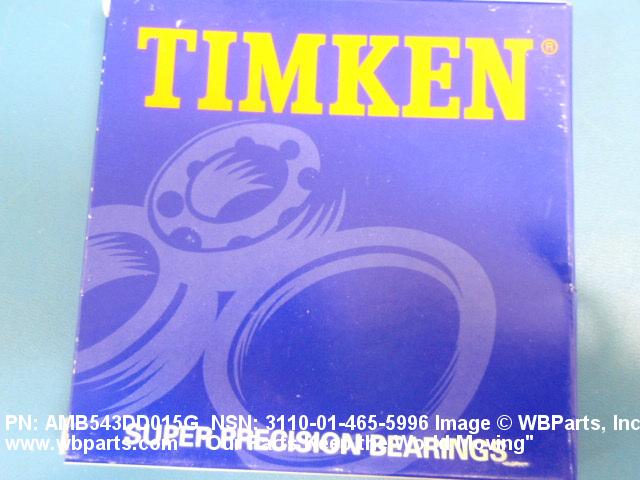

Drawings & Photos | NSN 3110-01-465-5996
Demand History | NSN 3110-01-465-5996
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-465-5996 | 2020-10-282 | 2 | United States |
| 3110-01-465-5996 | 2017-06-163 | 8 | DIBBS |
| 3110-01-465-5996 | 2017-05-135 | 7 | DIBBS |
| 3110-01-465-5996 | 2017-04-95 | 28 | DIBBS |
| 3110-01-465-5996 | 2017-03-80 | 266 | DIBBS |
| 3110-01-465-5996 | 2015-08-221 | 9 | DIBBS |
| 3110-01-465-5996 | 2013-12-339 | 2 | DIBBS |
| 3110-01-465-5996 | 2013-12-337 | 1 | DIBBS |
| 3110-01-465-5996 | 2013-12-336 | 1 | DIBBS |
| 3110-01-465-5996 | 2013-06-176 | 295 | DIBBS |
| 3110-01-465-5996 | 2011-03-82 | 750 | US |
| 3110-01-465-5996 | 2010-03-62 | 650 | United States |
Cross Reference | NSN 3110-01-465-5996
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 38950-00901-106 | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| 38950-00901-106 | 40920 | MPB CORPORATION DBA TIMKEN SUPER PRECISION |
| 38950-00901-106 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
| AMB543DD-015G | 40920 | MPB CORPORATION DBA TIMKEN SUPER PRECISION |
| AMB543DD-015M | 40920 | MPB CORPORATION DBA TIMKEN SUPER PRECISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-465-5996
Related Products | NSN 3110-01-465-5996
Technical Data | NSN 3110-01-465-5996
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C BALL STEEL COMP 440C INNER RING STEEL COMP 440C OUTER RING PLASTIC POLYTETRAFLUOROETHYLENE SEAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5880 ASSN STD SINGLE MATERIAL RESPONSE OR ASTM A756 ASSN STD SINGLE MATERIAL RESPONSE BALL AMS 5880 ASSN STD SINGLE MATERIAL RESPONSE OR ASTM A756 ASSN STD SINGLE MATERIAL RESPONSE INNER RING AMS 5880 ASSN STD SINGLE MATERIAL RESPONSE OR ASTM A756 ASSN STD SINGLE MATERIAL RESPONSE OUTER RING AMS 3652 ASSN STD SINGLE MATERIAL RESPONSE SEAL |
| STYLE DESIGNATOR | 202 SINGLE ROW, TORQUE TUBE TYPE, WITH OR WITHOUT CLOSURE |
| BORE DIAMETER | 1.5620 INCHES MINIMUM AND 1.5625 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 1.9995 INCHES MINIMUM AND 2.0000 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.2450 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |
| INNER RING WIDTH | 0.2785 INCHES MINIMUM AND 0.2810 INCHES MAXIMUM |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| LOAD DIRECTION | ANGULAR |
| INTERNAL CLEARANCE | 0.0001 INCHES MINIMUM RADIAL AND 0.0005 INCHES MAXIMUM RADIAL |
| SPECIAL FEATURES | 80 PCT MIN FILL OF SPECIFIED LUBRICANT |
| III END ITEM IDENTIFICATION | HELICOPTER, LAMPS MARK III SH-60B |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | PRECISION BEARING, EXTRA LIGHT-TORQUE TUBE TYPE |
Restrictions/Controls & Freight Information | NSN 3110-01-465-5996
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-465-5996
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
