NSN 3110-01-468-0601 96415K71, 01-468-0601, 014680601
Product Details | BEARING BALL
3110-01-468-0601 A homogenous spherical body, a series of which provides the rolling elements in a BEARING, BALL (as modified). The item is designed primarily to alleviate friction. It may have other usages such as the checking component in a ball-type check valve. Excludes BALL, CHECK; BALL, VALVE, PORTED.
Part Alternates: 96415K71, 3110-01-468-0601, 01-468-0601, 3110014680601, 014680601
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 27 SEP 1999 | 01-468-0601 | 00036 ( BALL, BEARING ) |

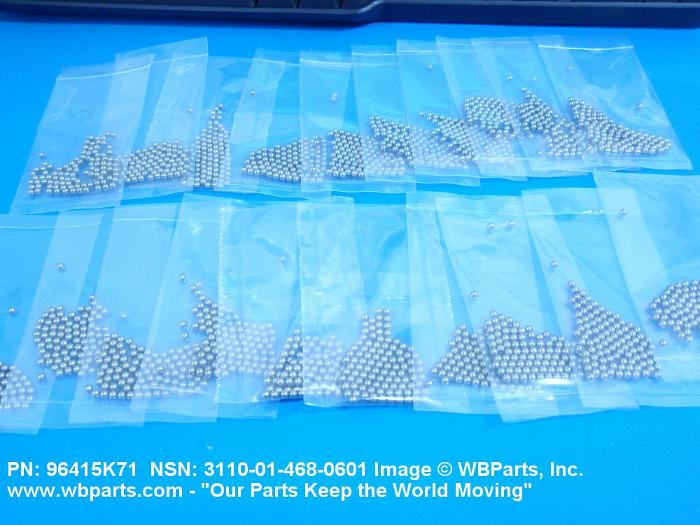

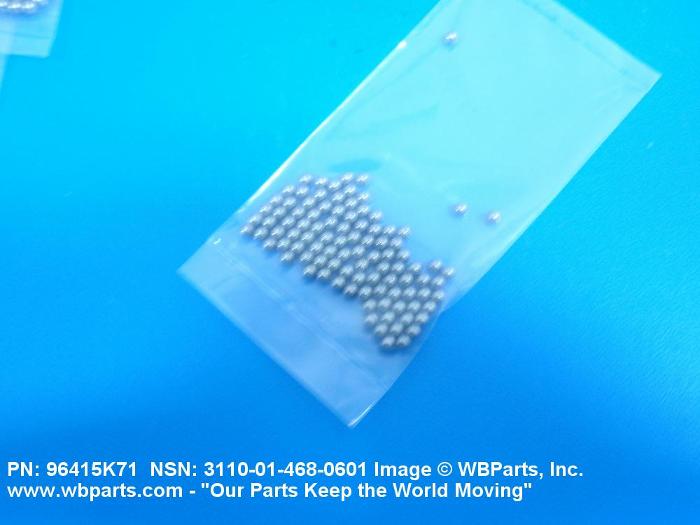

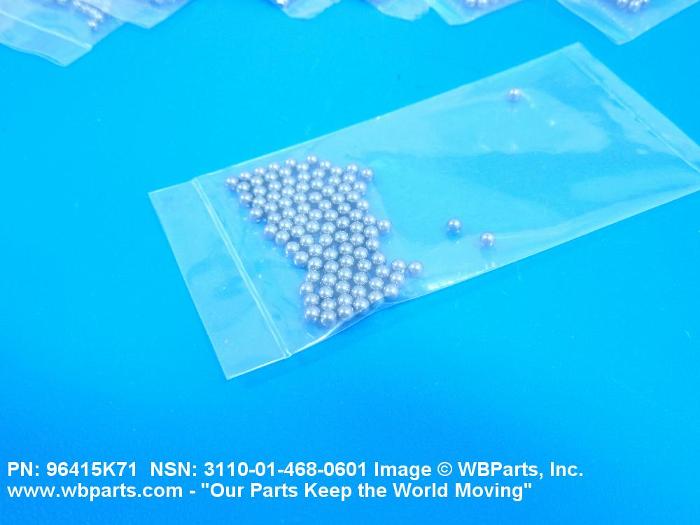

Drawings & Photos | NSN 3110-01-468-0601
Demand History | NSN 3110-01-468-0601
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 96415K71 | 2008-12-345 | 20 | United States |
Cross Reference | NSN 3110-01-468-0601
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 96415K71 | 39428 | MCMASTER-CARR SUPPLY COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-01-468-0601
Technical Data | NSN 3110-01-468-0601
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OR STEEL COMP 316 BALL |
| STYLE DESIGNATOR | 520 BALL |
| ROLLING ELEMENT DIAMETER | 0.1250 INCHES NOMINAL |
| SPECIAL FEATURES | GRADE 100; DIA. TOLERANCE IS PLUS OR MINUS 0.0005 IN; SPHERICITY (ROUNDNESS) WITHIN 0.0001 IN; HARDNESS IS ROCKWELL C 17; PACKAGE QUANTITY 100 BALLS |
Restrictions/Controls & Freight Information | NSN 3110-01-468-0601
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
