NSN 3120-00-046-4041 65363-07009-101, 00-046-4041, 6536307009101
Product Details | THRUST WASHER BEARING
3120-00-046-4041 An item of any peripheral shape usually having one flat or spherical surface and a centrally located hole. It is designed for applications involving moving (kinetic) loads. Except for items fabricated from bearing quality synthetic (plastic) or composed of multilayer material, one bearing surface must either have a specific surface finish designation of 32 microinch (0.8 micrometre) or less, arithmetical average (aa) (arithmetic mean deviation) or one of the following conditions: be lapped or ground; have visible or detectable means of lubrication; grooves, indentations; or self-lubrication. The thickness must not exceed 25 percent of the outside diameter of the shortest distance between peripheral flats (when thickness and/or outside diameter is designated as a tolerance dimension, the maximum dimension will be used to determine compliance). Excludes straight, tubular (without flange) items having a bearing surface(s) parallel to the axis of the bore only. See also WASHER, FLAT and SPACER, SLEEVE.
Part Alternates: 65363-07009-101, 3120-00-046-4041, 00-046-4041, 3120000464041, 6536307009101, 000464041
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 17 NOV 1972 | 00-046-4041 | 13211 ( BEARING, WASHER, THRUST ) |
Drawings & Photos | NSN 3120-00-046-4041
Demand History | NSN 3120-00-046-4041
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-00-046-4041 | 2022-02-54 | 46 | DIBBS |
| 3120-00-046-4041 | 2021-12-353 | 31 | DIBBS |
| 3120-00-046-4041 | 2021-09-269 | 19 | DIBBS |
| 3120-00-046-4041 | 2021-06-179 | 15 | DIBBS |
| 3120-00-046-4041 | 2021-06-171 | 15 | DIBBS |
| 3120-00-046-4041 | 2020-12-363 | 15 | DIBBS |
| 3120-00-046-4041 | 2020-12-352 | 29 | DIBBS |
| 3120-00-046-4041 | 2020-12-352 | 15 | DIBBS |
| 3120-00-046-4041 | 2020-10-281 | 38 | DIBBS |
| 3120-00-046-4041 | 2019-03-64 | 42 | DIBBS |
| 3120-00-046-4041 | 2019-01-09 | 25 | DIBBS |
| 3120-00-046-4041 | 2019-01-08 | 27 | DIBBS |
| 3120-00-046-4041 | 2019-01-01 | 25 | DIBBS |
| 3120-00-046-4041 | 2018-10-283 | 27 | DIBBS |
| 3120-00-046-4041 | 2018-07-199 | 25 | DIBBS |
| 3120-00-046-4041 | 2018-07-191 | 25 | DIBBS |
| 3120-00-046-4041 | 2018-01-25 | 27 | DIBBS |
| 3120-00-046-4041 | 2017-11-330 | 25 | DIBBS |
| 3120-00-046-4041 | 2012-05-150 | 307 | DIBBS |
| 3120-00-046-4041 | 2011-02-39 | 362 | DIBBS |
| 3120-00-046-4041 | 2010-09-245 | 176 | DIBBS |
| 3120-00-046-4041 | 2010-05-123 | 100 | DIBBS |
| 3120-00-046-4041 | 2009-03-64 | 191 | DIBBS |
| 3120-00-046-4041 | 2008-05-122 | 165 | DIBBS |
Cross Reference | NSN 3120-00-046-4041
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 65363-07009-101 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-00-046-4041
Technical Data | NSN 3120-00-046-4041
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE INNER LAYER COPPER ALLOY AND PLASTIC AND LEAD ALLOY INTERMEDIATE LAYER STEEL OUTER LAYER |

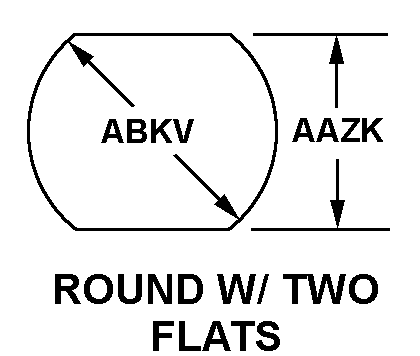

| STYLE DESIGNATOR | 27 ROUND W/TWO FLATS |
| WIDTH ACROSS FLATS | 4.7500 INCHES NOMINAL |
| OUTSIDE DIAMETER | 5.0000 INCHES NOMINAL |
| CORNER SHAPE | SQUARE ALL CORNERS |
| CROSS-SECTIONAL SHAPE STYLE | 35 RECTANGULAR |
| OVERALL THICKNESS | 0.0430 INCHES MINIMUM AND 0.0450 INCHES MAXIMUM |
| CENTER HOLE SHAPE STYLE | 42 ROUND |
| DIAMETER | 3.4900 INCHES NOMINAL |
| SURFACE FINISH | 90.0 MICROINCHES INSIDE DIAMETER SURFACE OF BODY 90.0 MICROINCHES LARGEST OUTSIDE DIAMETER 90.0 MICROINCHES LEFT SIDE 90.0 MICROINCHES RIGHT SIDE |
| MANUFACTURERS CODE | 78286 |
| DESIGN CONTROL REFERENCE | 65363-07009-101 |
Restrictions/Controls & Freight Information | NSN 3120-00-046-4041
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-00-046-4041
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
