NSN 3120-00-166-8047 S6120651235, S6120-65123-5, 00-166-8047
Product Details | SLEEVE BUSHING
3120-00-166-8047 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: S6120651235, S6120-65123-5, 3120-00-166-8047, 00-166-8047, 3120001668047, 001668047
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 13 NOV 1971 | 00-166-8047 | 13206 ( BUSHING, SLEEVE ) |

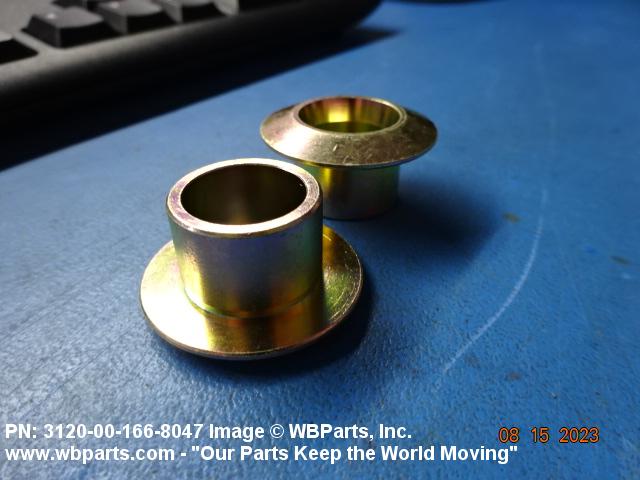

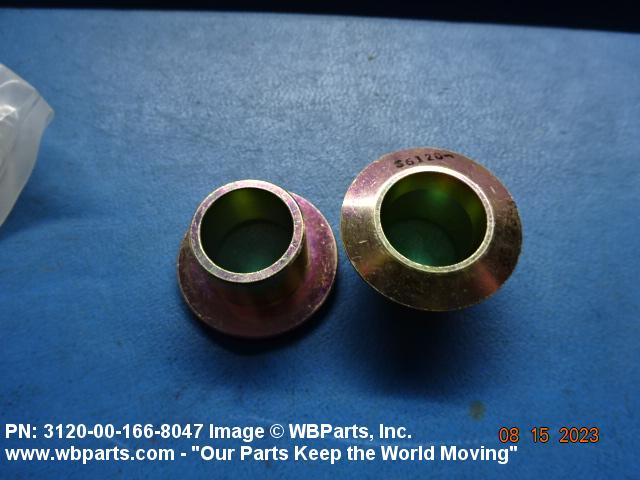

Drawings & Photos | NSN 3120-00-166-8047
Demand History | NSN 3120-00-166-8047
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-00-166-8047 | 2023-03-87 | 2 | India |
| S6120651235 | 2020-05-127 | 2 | India |
| 3120-00-166-8047 | 2019-05-127 | 2 | India |
| 3120-00-166-8047 | 2012-06-159 | 10 | DIBBS |
| 3120-00-166-8047 | 2012-04-113 | 2 | DIBBS |
| 3120-00-166-8047 | 2011-08-224 | 4 | DIBBS |
| 3120-00-166-8047 | 2011-03-63 | 5 | DIBBS |
| 3120-00-166-8047 | 2011-03-63 | 10 | DIBBS |
Cross Reference | NSN 3120-00-166-8047
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S6120-65123-5 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-00-166-8047
Technical Data | NSN 3120-00-166-8047
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 172 OR COPPER ALLOY 173 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-530,TEMPER H FED SPEC ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 22C SOLID |
| OVERALL LENGTH | 0.6140 INCHES NOMINAL |

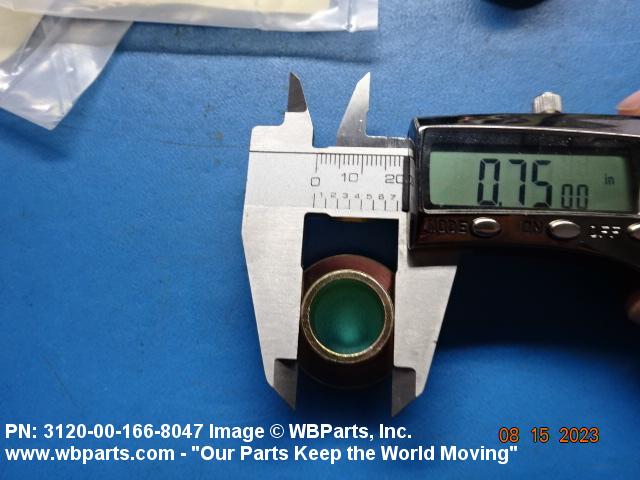

| BODY OUTSIDE DIAMETER | 0.7495 INCHES MINIMUM AND 0.7505 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.5930 INCHES NOMINAL |

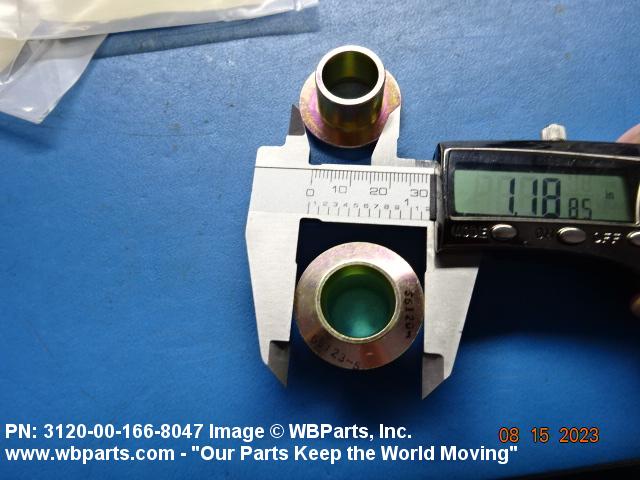

| FLANGE OUTSIDE DIAMETER | 1.1900 INCHES NOMINAL |
| FLANGE WIDTH | 0.1150 INCHES MINIMUM AND 0.1350 INCHES MAXIMUM |
| CORNER SHAPE | CHAMFERED OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER CHAMFERED INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER SQUARE LEFT FLANGE BODY CORNER |
| SURFACE FINISH | 100.0 MICROINCHES INTERMEDIATE LAYER |
| TEST DATA DOCUMENT | 81349-MIL-I-6866 SPECIFICATION |
| (NON-CORE DATA) CHAMFER LENGTH | 0.0950 INCHES NOMINAL 0.0600 INCHES NOMINAL |
| (NON-CORE DATA) CHAMFER ANGLE | 20.0 DEGREES NOMINAL 15.0 DEGREES NOMINAL |
| MANUFACTURERS CODE | 78286 |
| DESIGN CONTROL REFERENCE | S6120-65123-5 |
Restrictions/Controls & Freight Information | NSN 3120-00-166-8047
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-00-166-8047
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
