NSN 3120-00-191-2509 204011023005, 204-011-023-005, 2040110235
Product Details | SLEEVE BUSHING

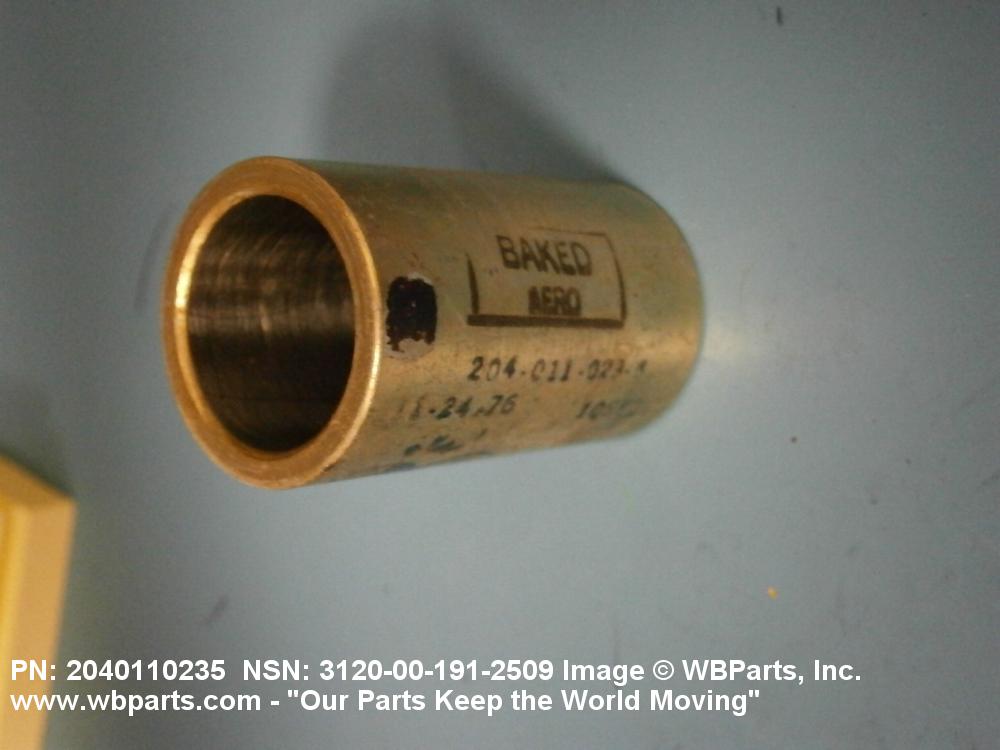

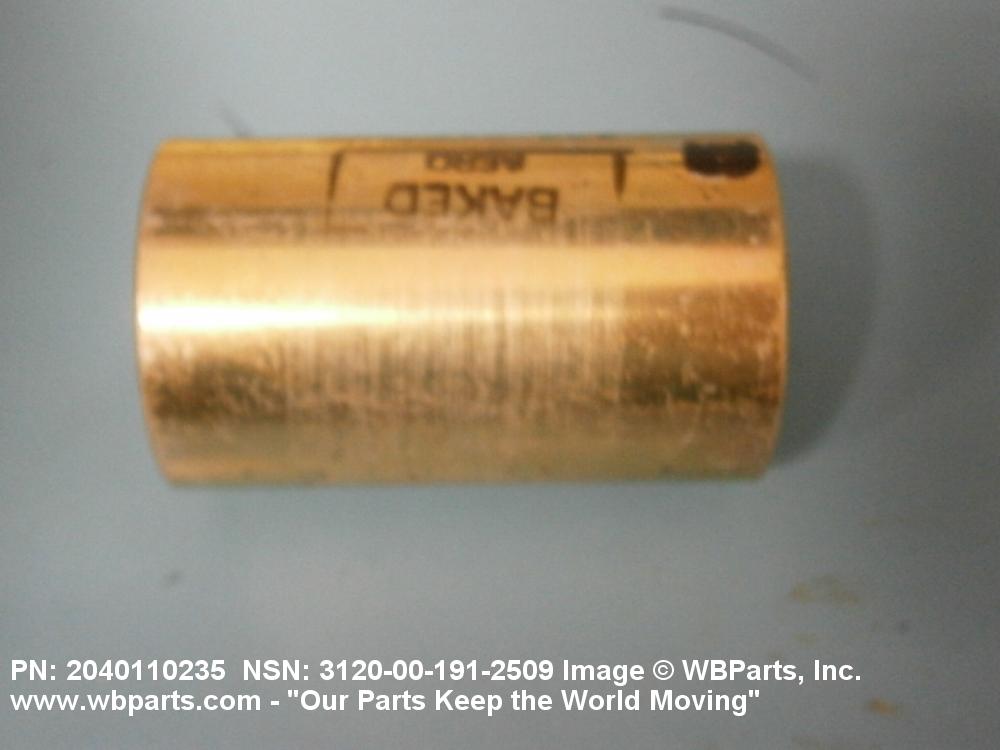

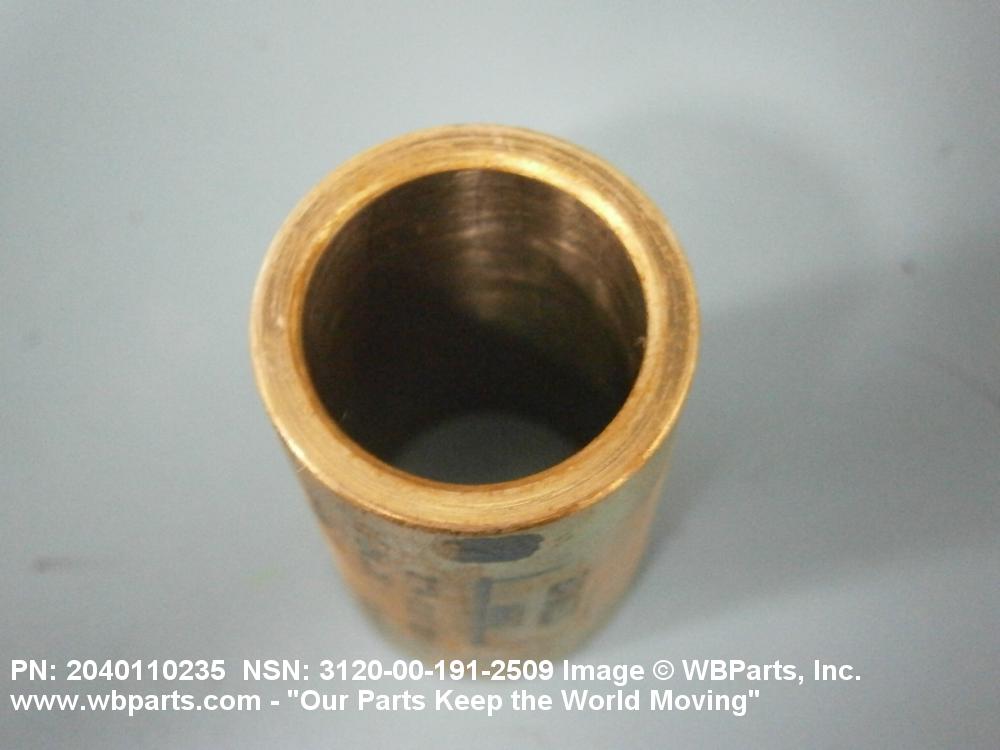

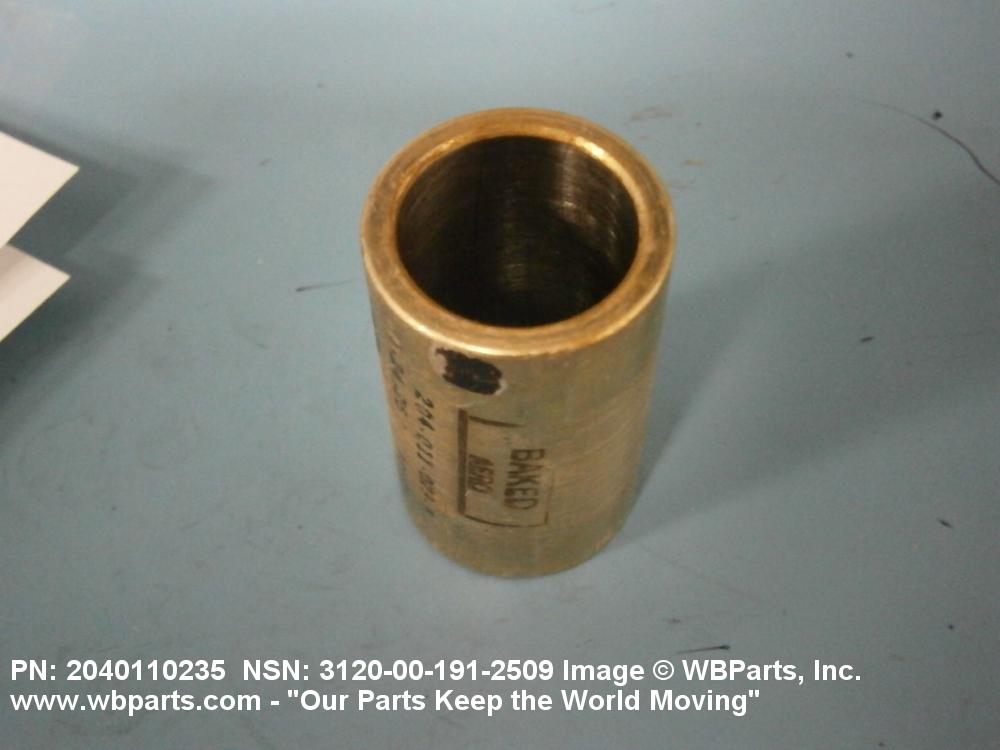

3120-00-191-2509 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: 204011023005, 204-011-023-005, 2040110235, 204-011-023-5, 3120-00-191-2509, 00-191-2509, 3120001912509, 001912509
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 10 MAR 1971 | 00-191-2509 | 13206 ( BUSHING, SLEEVE ) |
Drawings & Photos | NSN 3120-00-191-2509
Demand History | NSN 3120-00-191-2509
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 204-011-023-005 | 2022-01-30 | 1 | DIBBS |
| 204-011-023-5 | 2022-01-30 | 1 | DIBBS |
| 2040110235 | 2012-05-145 | 10 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-191-2509
Related Products | NSN 3120-00-191-2509
Technical Data | NSN 3120-00-191-2509
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4140 OR STEEL COMP 4130 OR STEEL COMP E4340 OR STEEL COMP 4340 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS6381 ASSN STD 1ST MATERIAL RESPONSE OR MIL-S-6758 COND D1 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-5626 COND D1 MIL SPEC 3RD MATERIAL RESPONSE OR MIL-S-5000 MIL SPEC 4TH MATERIAL RESPONSE OR MIL-T-6736 TYPE 1 COND N MIL SPEC 5TH MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM LEFT END SURFACE OF BODY CADMIUM OUTSIDE DIAMETER SURFACE OF BODY CADMIUM RIGHT END SURFACE OF BODY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE LEFT END SURFACE OF BODY QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OUTSIDE DIAMETER SURFACE OF BODY QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE RIGHT END SURFACE OF BODY |
| STYLE DESIGNATOR | 17C SOLID |
| OVERALL LENGTH | 1.8856 INCHES MINIMUM AND 1.8910 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 1.1360 INCHES MINIMUM AND 1.1365 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.8747 INCHES MINIMUM AND 0.8752 INCHES MAXIMUM |
| CORNER SHAPE | ROUND OUTSIDE LEFT CORNER ROUND OUTSIDE RIGHT CORNER CHAMFERED INSIDE RIGHT CORNER CHAMFERED INSIDE LEFT CORNER |
| SURFACE FINISH | 63.0 MICROINCHES INTERMEDIATE LAYER |
| SPECIAL FEATURES | ID AND OD PARALLEL AND CONCENTRIC WITHIN 0.001 IN. TIR |
| (NON-CORE DATA) CHAMFER LENGTH | 0.0200 INCHES MINIMUM AND 0.0400 INCHES MAXIMUM 0.0200 INCHES MINIMUM AND 0.0400 INCHES MAXIMUM |
| (NON-CORE DATA) CHAMFER ANGLE | 45.0 DEGREES NOMINAL 45.0 DEGREES NOMINAL |
| (NON-CORE DATA) RADIUS | 0.0200 INCHES MINIMUM AND 0.0400 INCHES MAXIMUM 0.0200 INCHES MINIMUM AND 0.0400 INCHES MAXIMUM |
| MANUFACTURERS CODE | 97499 |
| DESIGN CONTROL REFERENCE | 204-011-023-5 |
Restrictions/Controls & Freight Information | NSN 3120-00-191-2509
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | R | 65 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | FF | |
| Type of Cargo | Z | No special type of cargo code applicable |
