NSN 3120-00-351-5806 ATLF10101A, ATLF10-101A, HBFV1010
Product Details | SLEEVE BUSHING
3120-00-351-5806 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: ATLF10101A, ATLF10-101A, HBFV1010, HBFV10-10, YTS781, 2090010563, 209-001-056-3, 90670, 3120-00-351-5806, 00-351-5806, 3120003515806, 003515806
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 APR 1970 | 00-351-5806 | 13206 ( BUSHING, SLEEVE ) |

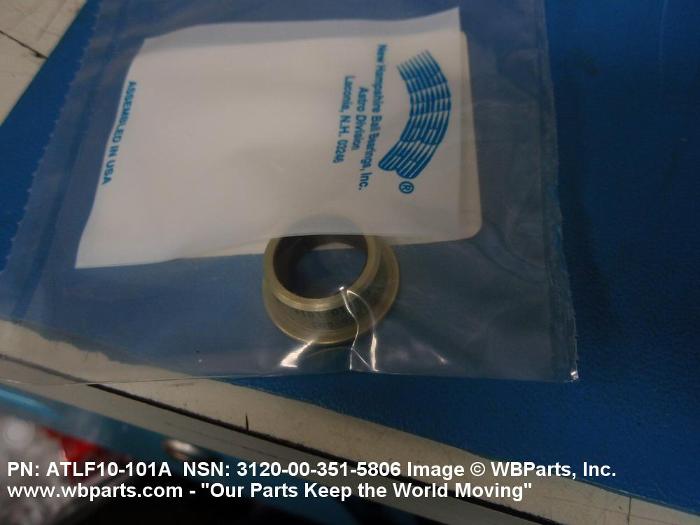

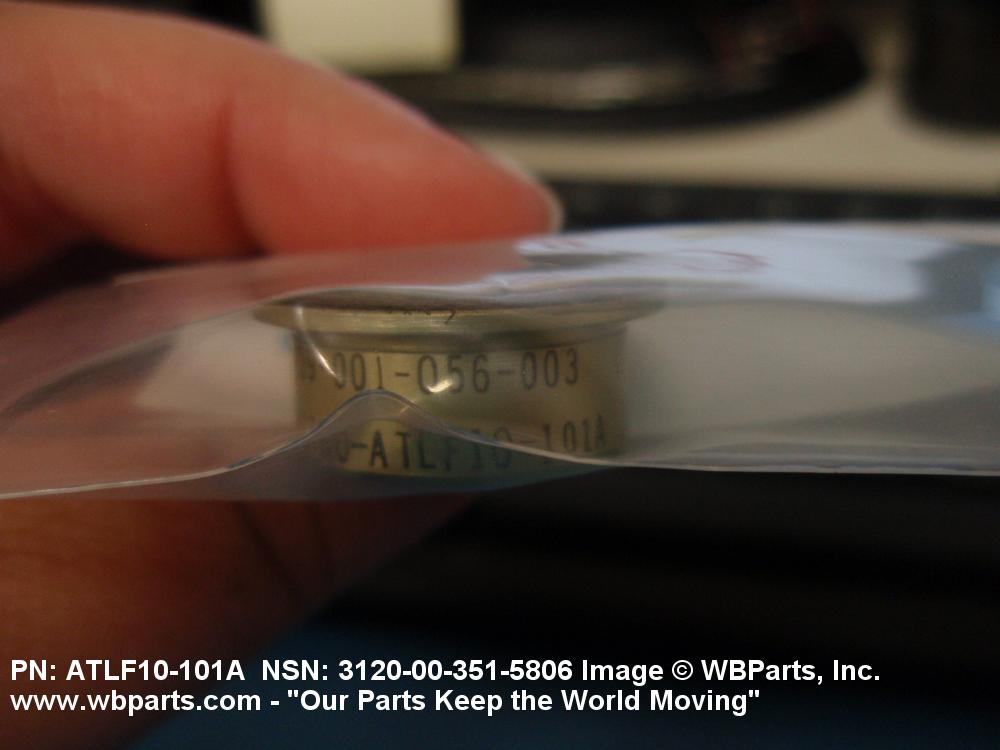

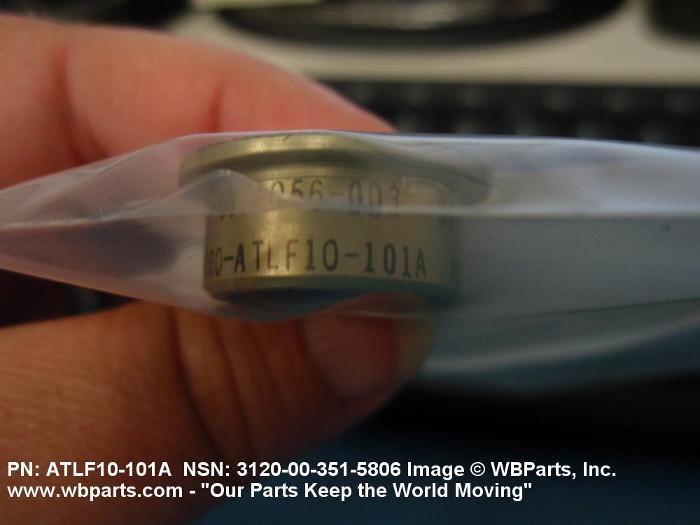

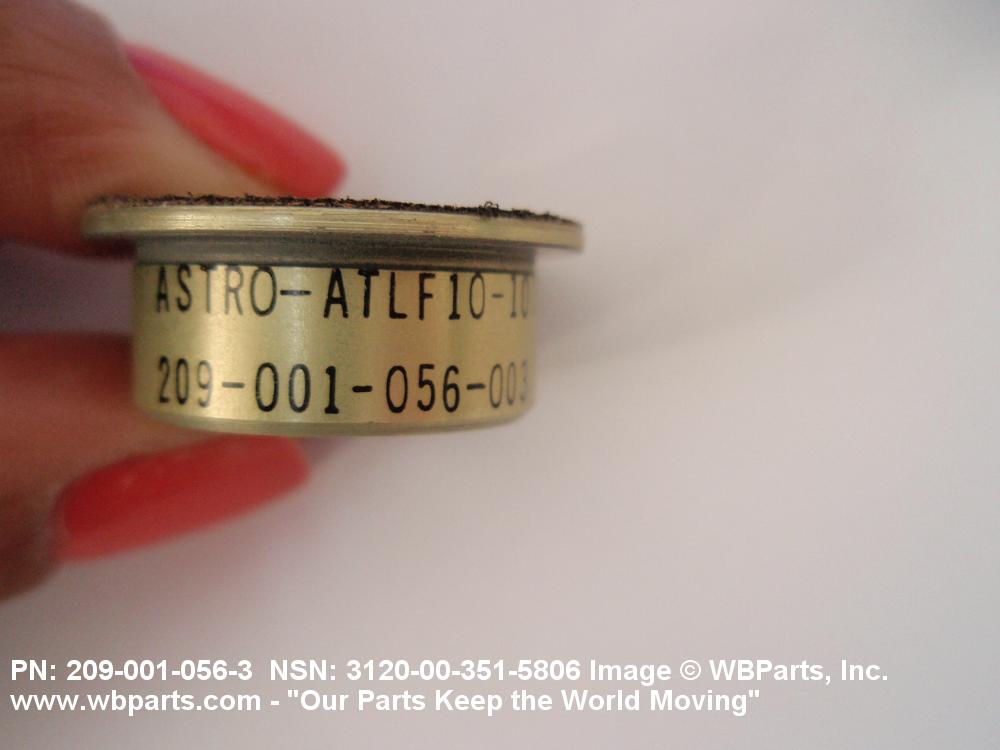

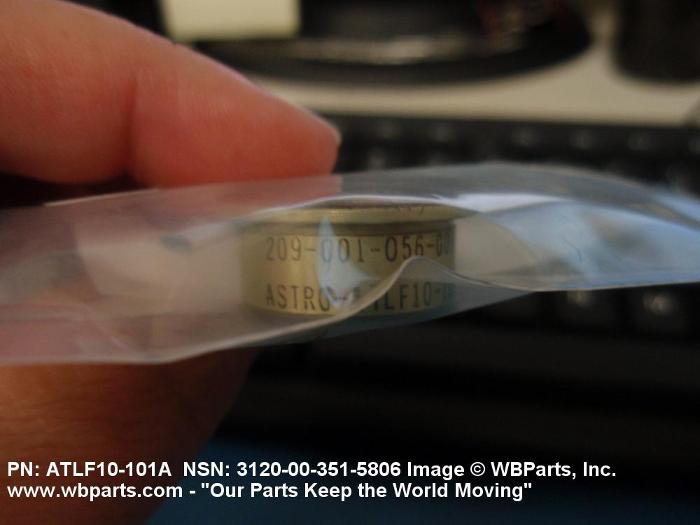

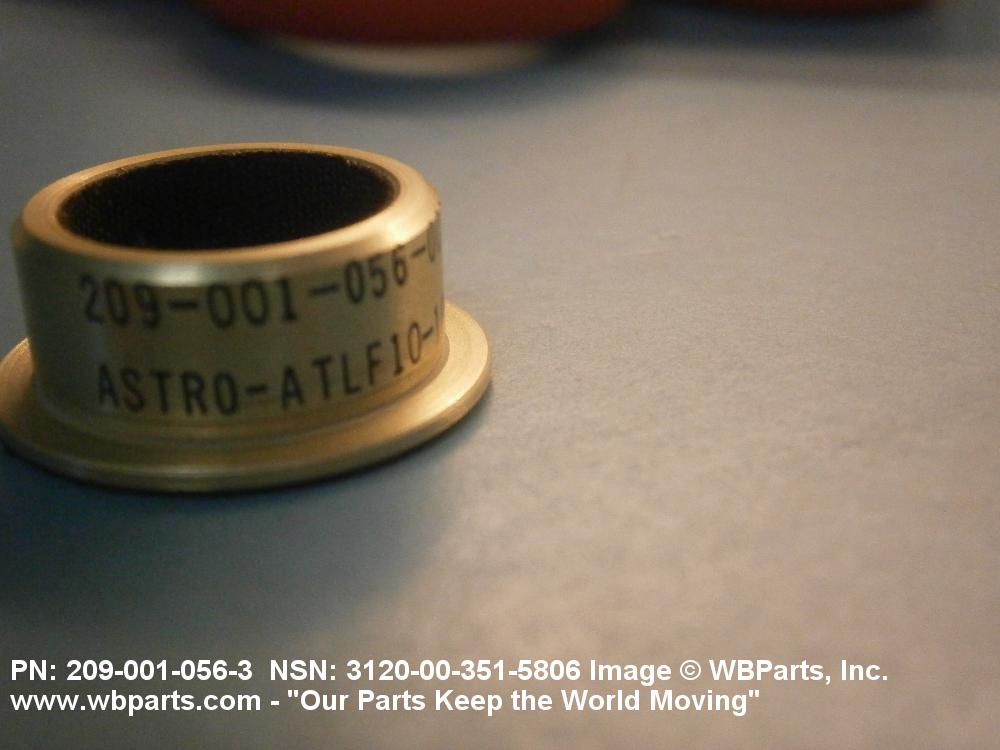

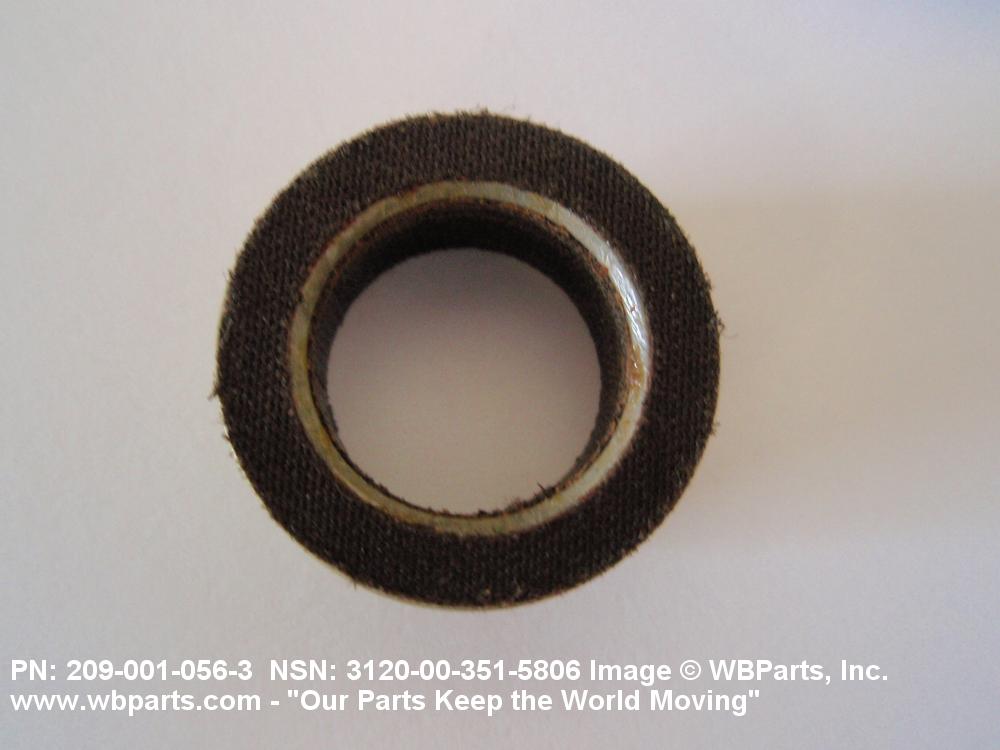

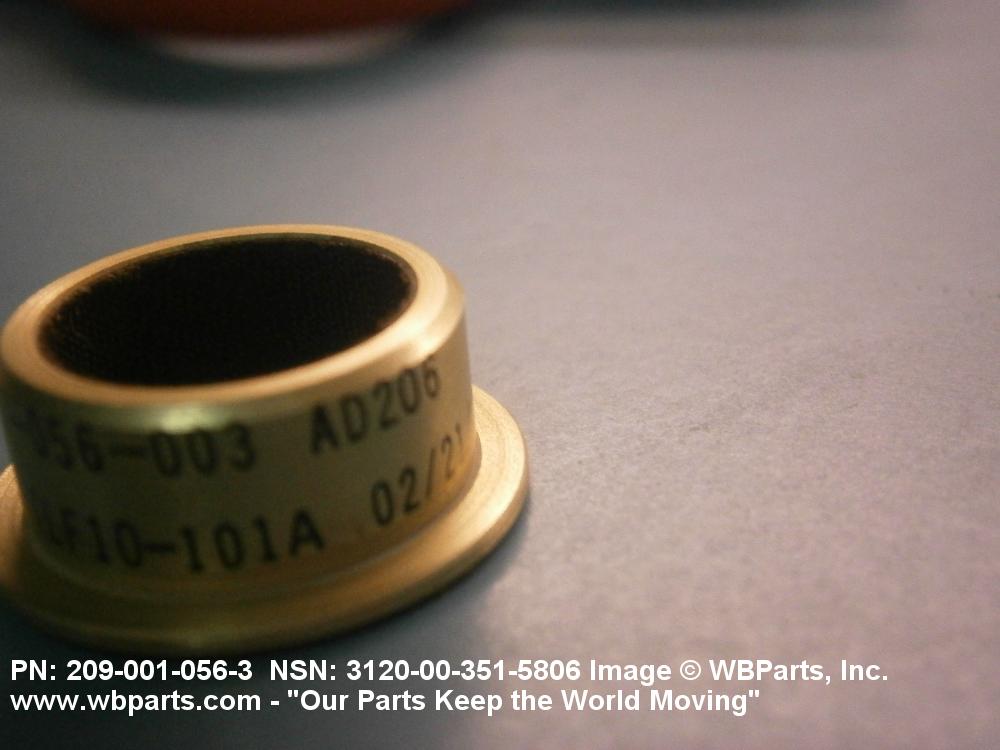

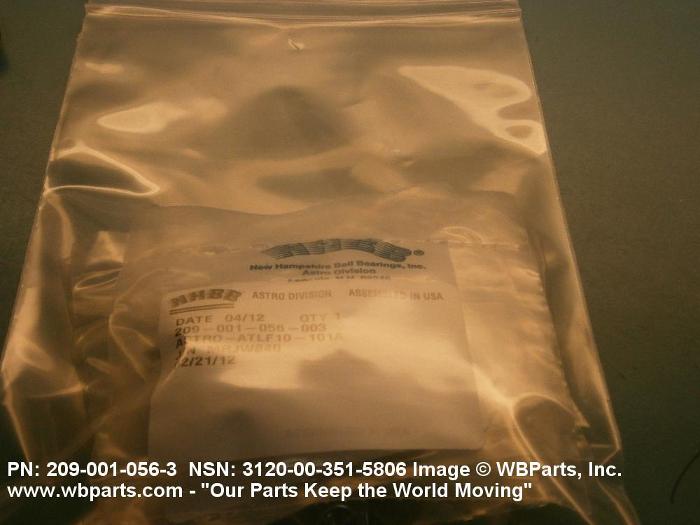

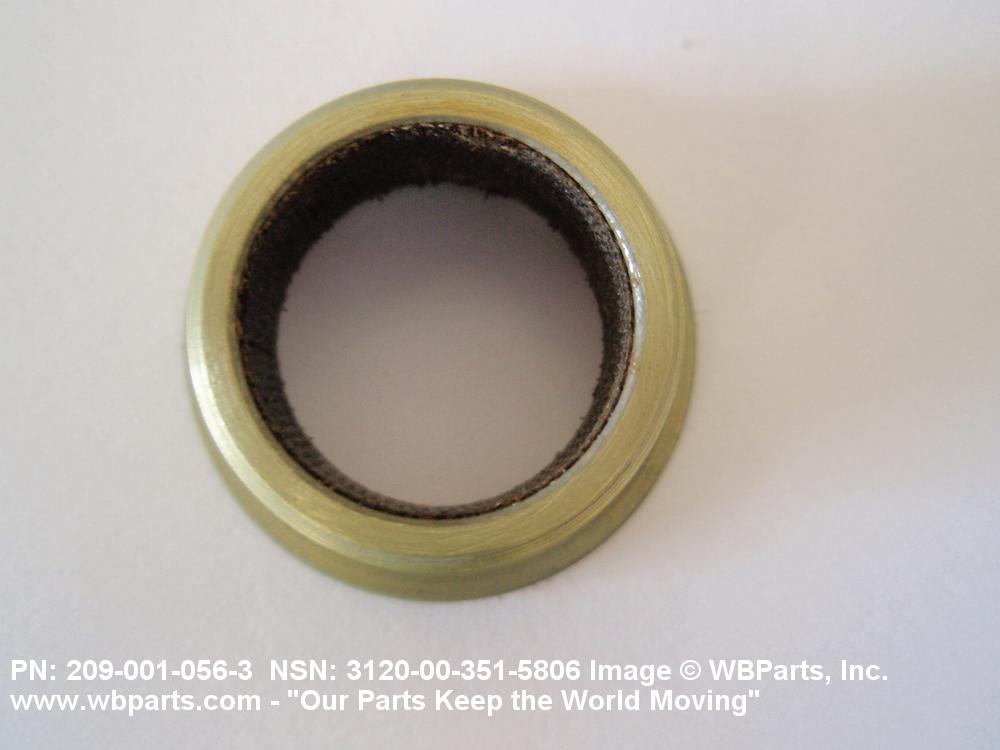

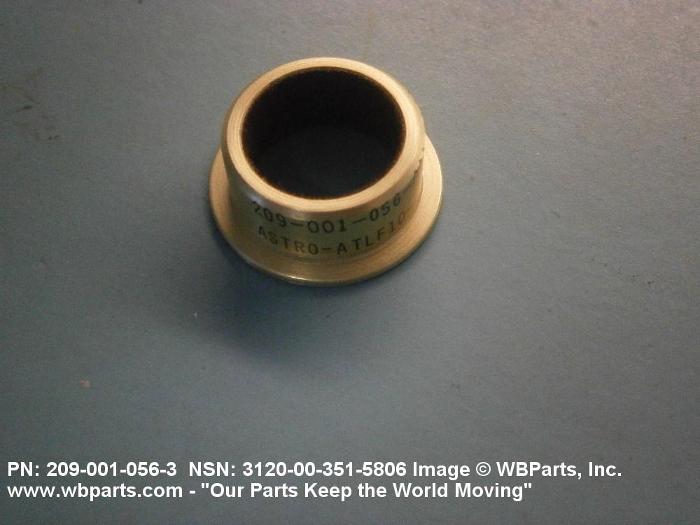

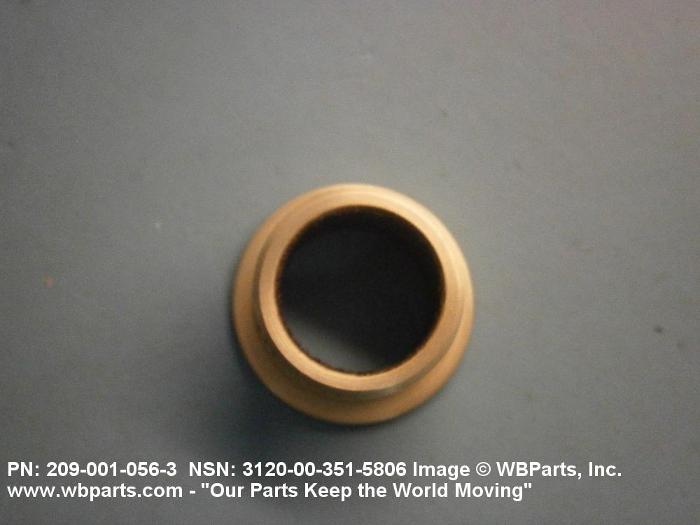

Drawings & Photos | NSN 3120-00-351-5806
Demand History | NSN 3120-00-351-5806
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2090010563 | 2024-08-241 | 16 | United States |
| 3120-00-351-5806 | 2020-10-304 | 1 | DIBBS-RFPs |
| 3120-00-351-5806 | 2013-05-142 | 52 | DIBBS |
| 3120-00-351-5806 | 2013-05-127 | 52 | DIBBS |
| 2090010563 | 2012-05-152 | 5 | United States |
| 2090010563 | 2011-07-193 | 32 | United States |
| 2090010563 | 2011-06-158 | 8 | United States |
| 3120-00-351-5806 | 2011-04-98 | 25 | United States |
| 2090010563 | 2011-04-96 | 70 | United States |
| 209-001-056-3 | 2011-03-82 | 70 | US |
| 3120-00-351-5806 | 2008-07-206 | 50 | DIBBS |
| 3120-00-351-5806 | 2008-05-152 | 20 | DIBBS |
| 3120-00-351-5806 | 2008-04-93 | 29 | DIBBS |
Cross Reference | NSN 3120-00-351-5806
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 209-001-056-3 | 09455 | RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS |
| 209-001-056-3 | 15860 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION |
| 209-001-056-3 | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
| 209-001-056-3 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 90670 | 09455 | RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS |
| ATLF10-101A | 15860 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION |
| HBFV10-10 | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
| YTS781 | 77896 | REXNORD INDUSTRIES, LLC DIV BEARING OPERATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-351-5806
Related Products | NSN 3120-00-351-5806
Technical Data | NSN 3120-00-351-5806
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OR ALUMINUM ALLOY 7075 OUTER LAYER PLASTIC POLYTETRAFLUOROETHYLENE RIGHT END SURFACE |
| SURFACE TREATMENT | ANODIZE AND CHROMATE OUTSIDE DIAMETER SURFACE OF BODY ANODIZE AND CHROMATE OUTSIDE DIAMETER SURFACE OF FLANGE ANODIZE AND CHROMATE RIGHT END SURFACE OF BODY ANODIZE AND CHROMATE RIGHT END SURFACE OF LEFT FLANGE |
| STYLE DESIGNATOR | 22C SOLID |
| OVERALL LENGTH | 0.3680 INCHES MINIMUM AND 0.4030 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 0.8135 INCHES MINIMUM AND 0.8140 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.6245 INCHES MINIMUM AND 0.6255 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 0.9700 INCHES MINIMUM AND 1.0000 INCHES MAXIMUM |
| FLANGE WIDTH | 0.0580 INCHES MINIMUM AND 0.0630 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER SQUARE INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER UNDERCUT LEFT FLANGE BODY CORNER |
| SURFACE FINISH | 125.0 MICROINCHES INTERMEDIATE LAYER |
| (NON-CORE DATA) UNDERCUT WIDTH | 0.0300 INCHES MINIMUM AND 0.0500 INCHES MAXIMUM |
| (NON-CORE DATA) UNDERCUT DEPTH | 0.0100 INCHES MAXIMUM |
| MANUFACTURERS CODE | 97499 |
| MFR SOURCE CONTROLLING REFERENCE | 209-001-056-3 |
Restrictions/Controls & Freight Information | NSN 3120-00-351-5806
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114870 | BEARING/BUSHING METAL |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-00-351-5806
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
