NSN 3120-00-410-6050 12A48, 00-410-6050, 004106050
Product Details | SPHERICAL PLAIN BEARING
3120-00-410-6050 A detachable part in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. It may be divided into two or more segments of 180 degrees (3.141 radians) or less. The item has a cylindrical bore and is basically spherical in its exterior design to allow for shaft misalignment. Excludes BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: 12A48, 3120-00-410-6050, 00-410-6050, 3120004106050, 004106050
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 13 AUG 1969 | 00-410-6050 | 13204 ( BEARING, PLAIN, SPHERICAL ) |

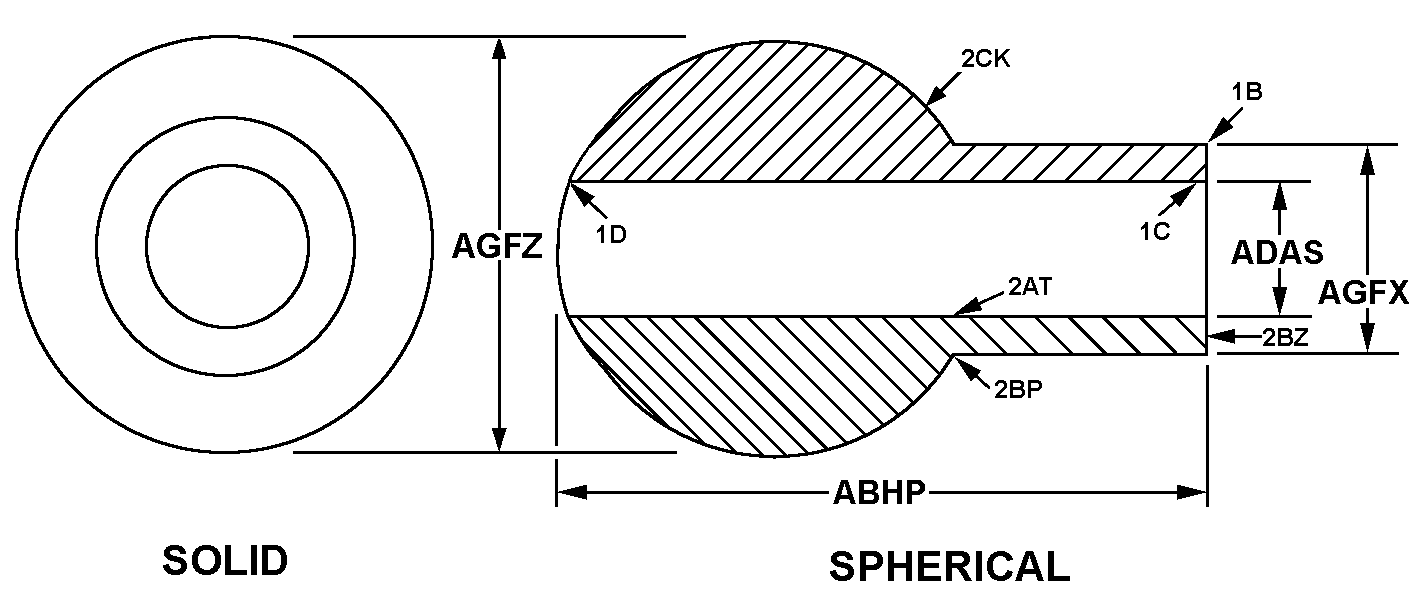

Drawings & Photos | NSN 3120-00-410-6050
Cross Reference | NSN 3120-00-410-6050
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12A48 | 62119 | UNIVERSAL ELECTRIC CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-00-410-6050
Technical Data | NSN 3120-00-410-6050
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 16C SOLID |
| OVERALL LENGTH | 0.5000 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 0.3123 INCHES MINIMUM AND 0.3124 INCHES MAXIMUM |
| EXTENSION OUTSIDE DIAMETER | 0.6250 INCHES NOMINAL |
| MANUFACTURERS CODE | 62119 |
| DESIGN CONTROL REFERENCE | 12A48 |
Restrictions/Controls & Freight Information | NSN 3120-00-410-6050
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-00-410-6050
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
