NSN 3120-00-412-8244 781E4961, 781E496-1 , 781E496PC1
Product Details | SPHERICAL PLAIN BEARING
3120-00-412-8244 A detachable part in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. It may be divided into two or more segments of 180 degrees (3.141 radians) or less. The item has a cylindrical bore and is basically spherical in its exterior design to allow for shaft misalignment. Excludes BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: 781E4961, 781E496-1 , 781E496PC1, 3120-00-412-8244, 00-412-8244, 3120004128244, 004128244
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 MAY 1974 | 00-412-8244 | 13204 ( BEARING, PLAIN, SPHERICAL ) |

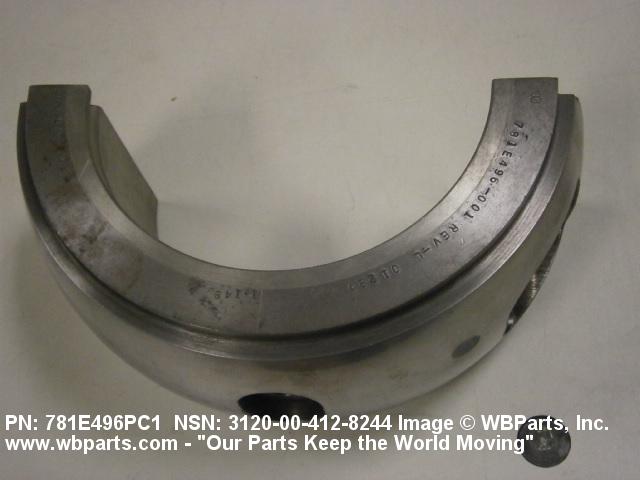

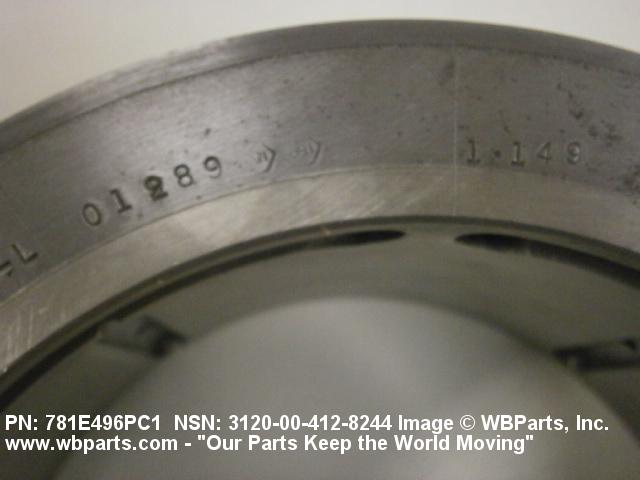

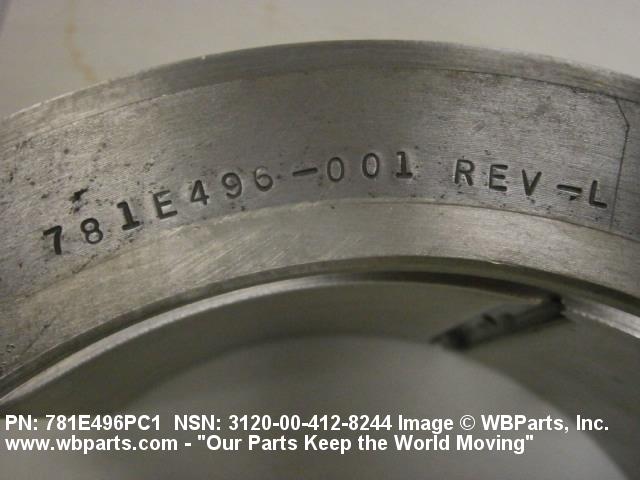

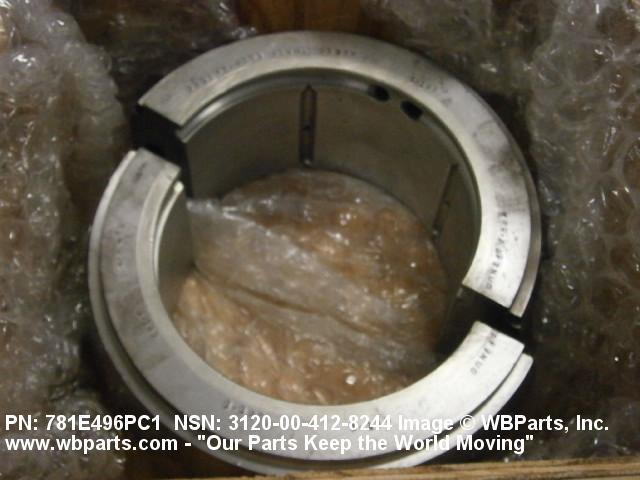

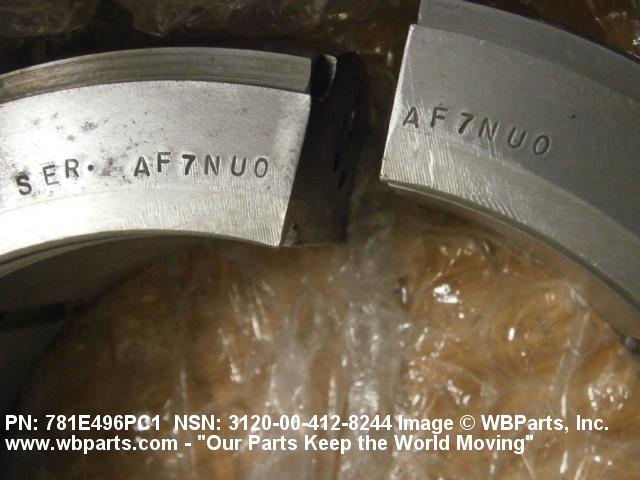

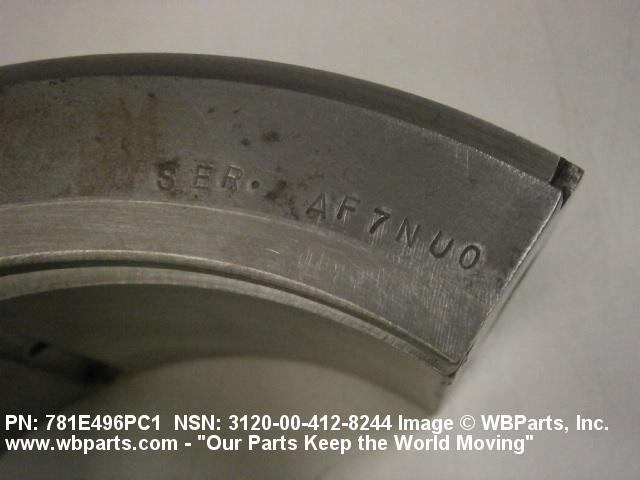

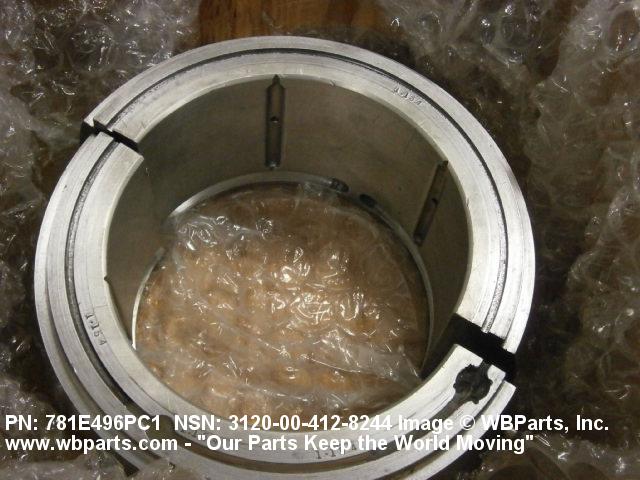

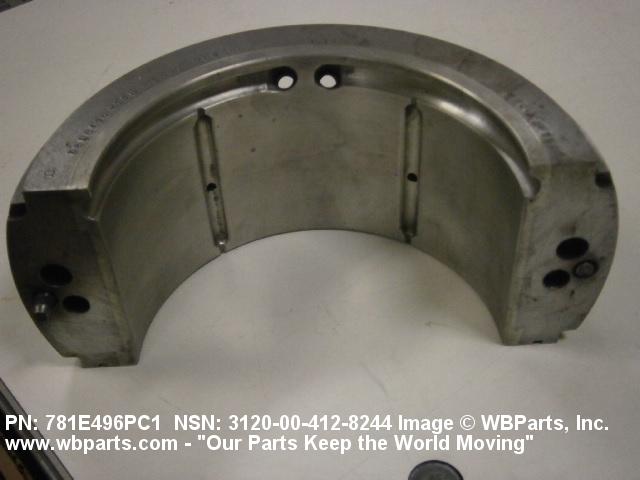

Drawings & Photos | NSN 3120-00-412-8244
Demand History | NSN 3120-00-412-8244
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-00-412-8244 | 2018-04-105 | 2 | DIBBS |
| 3120-00-412-8244 | 2016-02-42 | 1 | DIBBS |
| 3120-00-412-8244 | 2013-05-143 | 2 | DIBBS |
| 3120-00-412-8244 | 2012-01-27 | 0 | United States |
| 3120-00-412-8244 | 2011-11-327 | 2 | DIBBS |
| 3120-00-412-8244 | 2011-10-297 | 3 | DIBBS |
| 3120-00-412-8244 | 2011-08-228 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-00-412-8244
Technical Data | NSN 3120-00-412-8244
| Characteristic | Specifications |
|---|---|
| MATERIAL | TIN ALLOY UNS L13840 BORE LINER STEEL INNER MEMBER |
| STYLE DESIGNATOR | 15B SEGMENTED |
| OVERALL LENGTH | 4.8800 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 7.5140 INCHES MINIMUM AND 7.5160 INCHES MAXIMUM |
| SPHERICAL BODY DIAMETER | 11.2480 INCHES MINIMUM AND 11.2500 INCHES MAXIMUM |
| CORNER SHAPE | ROUND ALL CORNERS |
| SURFACE FINISH | 32.0 MICROINCHES INSIDE DIAMETER SURFACE OF BODY 250.0 MICROINCHES LEFT END SURFACE 250.0 MICROINCHES RIGHT END SURFACE 63.0 MICROINCHES SPHERICAL SURFACE |
| MANUFACTURERS CODE | 01289 |
| DESIGN CONTROL REFERENCE | 781E496PC1 |
