NSN 3120-00-624-5248 1200134A, 120-013-4A, 23S44A
Product Details | SLEEVE BUSHING
3120-00-624-5248 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: 1200134A, 120-013-4A, 23S44A, 23S4-4A, 3120-00-624-5248, 00-624-5248, 3120006245248, 006245248
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-624-5248 | 13206 ( BUSHING, SLEEVE ) |

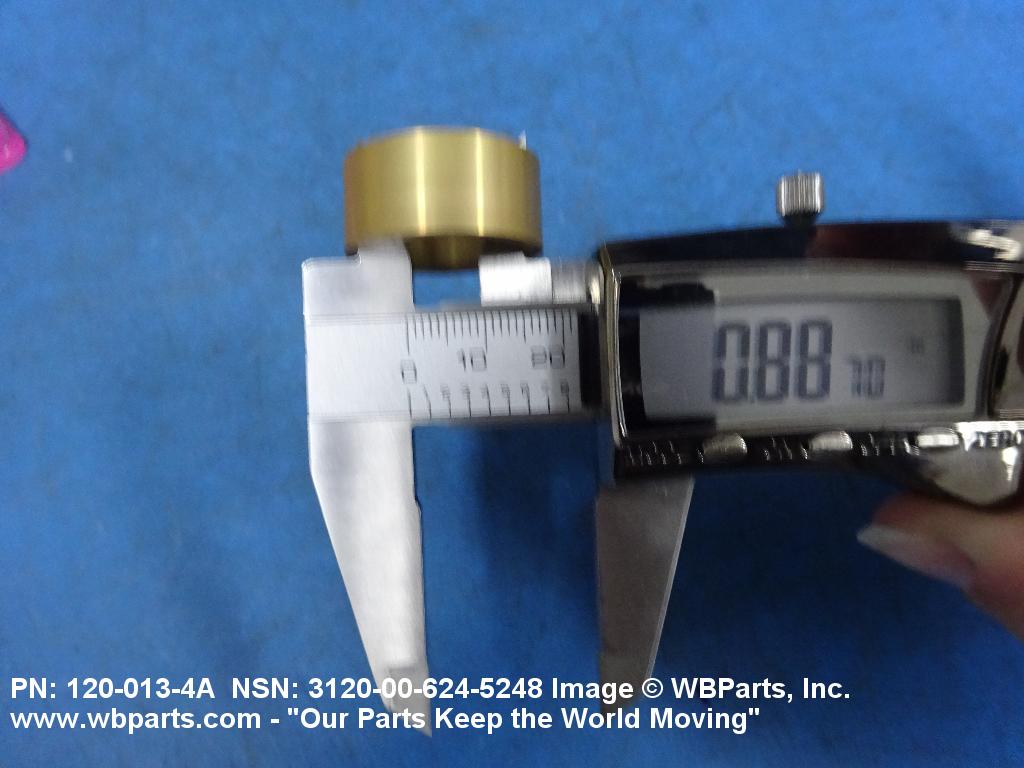

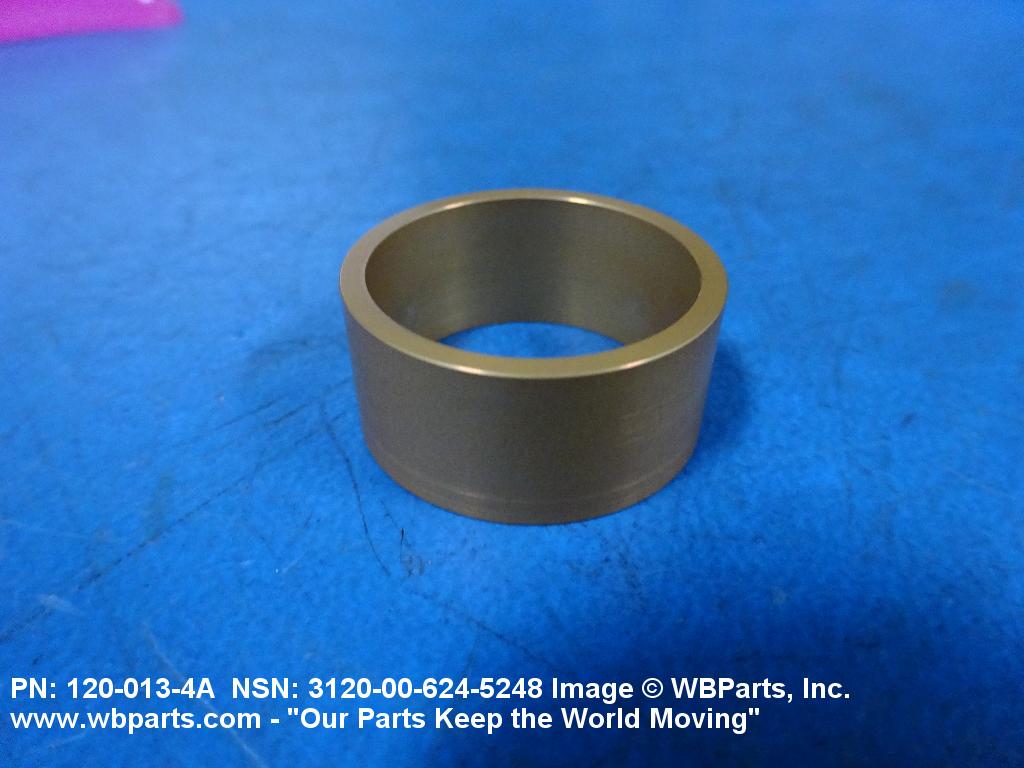

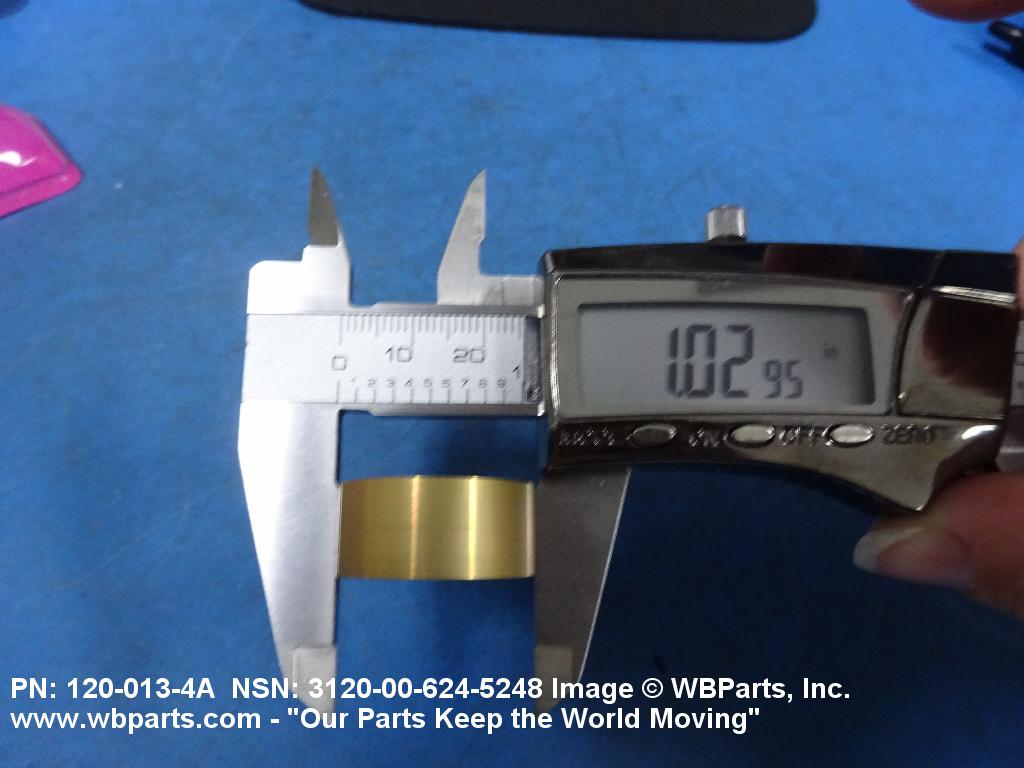

Drawings & Photos | NSN 3120-00-624-5248
Demand History | NSN 3120-00-624-5248
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-00-624-5248 | 2025-08-231 | 569 | DIBBS |
| 3120-00-624-5248 | 2024-03-88 | 427 | DIBBS |
| 1200134A | 2022-01-13 | 4 | United States |
| 3120-00-624-5248 | 2021-11-314 | 1 | US |
| 3120-00-624-5248 | 2021-06-181 | 4 | ES |
| 1200134A | 2016-01-14 | 20 | United States |
| 1200134A | 2015-12-350 | 10 | United States |
| 23S44A | 2015-07-211 | 26 | US |
| 1200134A | 2015-07-209 | 33 | United States |
| 23S44A | 2015-07-208 | 13 | US |
| 1200134A | 2015-04-119 | 22 | US |
| 1200134A | 2015-04-111 | 18 | United States |
| 3120-00-624-5248 | 2014-09-272 | 269 | DIBBS |
| 3120-00-624-5248 | 2014-08-215 | 232 | DIBBS |
| 3120-00-624-5248 | 2014-05-121 | 426 | DIBBS |
| 1200134A | 2013-06-156 | 20 | US |
| 23S44A | 2013-01-16 | 2 | United States |
| 3120-00-624-5248 | 2012-05-136 | 687 | DIBBS |
| 1200134A | 2011-05-144 | 85 | US |
| 3120-00-624-5248 | 2011-04-108 | 30 | US |
| 1200134A | 2010-08-240 | 1 | US |
| 1200134A | 2010-06-159 | 25 | United States |
| 23S44A | 2009-08-230 | 86 | US |
| 1200134A | 2009-07-203 | 58 | US |
| 1200134A | 2009-06-177 | 1 | Brazil |
| 23S44A | 2009-02-54 | 38 | United States |
| 3120-00-624-5248 | 2008-06-164 | 1247 | DIBBS |
| 1200134A | 2006-04-101 | 1 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-624-5248
Related Products | NSN 3120-00-624-5248
Technical Data | NSN 3120-00-624-5248
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-200/3 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | OXIDE FILM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 17C SOLID |
| OVERALL LENGTH | 0.4640 INCHES MINIMUM AND 0.4740 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 1.0297 INCHES MINIMUM AND 1.0307 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.8860 INCHES MINIMUM AND 0.8910 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE ALL CORNERS |
| SURFACE FINISH | 125.0 MICROINCHES INSIDE DIAMETER SURFACE OF BODY 125.0 MICROINCHES LEFT END SURFACE OF BODY 63.0 MICROINCHES OUTSIDE DIAMETER SURFACE OF BODY 125.0 MICROINCHES RIGHT END SURFACE OF BODY |
| SPECIFICATION/STANDARD DATA | 97499-120-013-4A MANUFACTURERS SPECIFICATION |
Restrictions/Controls & Freight Information | NSN 3120-00-624-5248
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-00-624-5248
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BX | OH-58D Army Helicopter Improvement Program (AHIP) |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | GA | TG:H-1 IROQUOIS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
