NSN 3120-00-661-4367 NAS77, NAS776035, NAS77-6-035
Product Details | SLEEVE BUSHING
3120-00-661-4367 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: NAS77, NAS776035, NAS77-6-035, NAS77635, NAS77-6-35, BAS72, 3120-00-661-4367, 00-661-4367, 3120006614367, 006614367
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-661-4367 | 13206 ( BUSHING, SLEEVE ) |

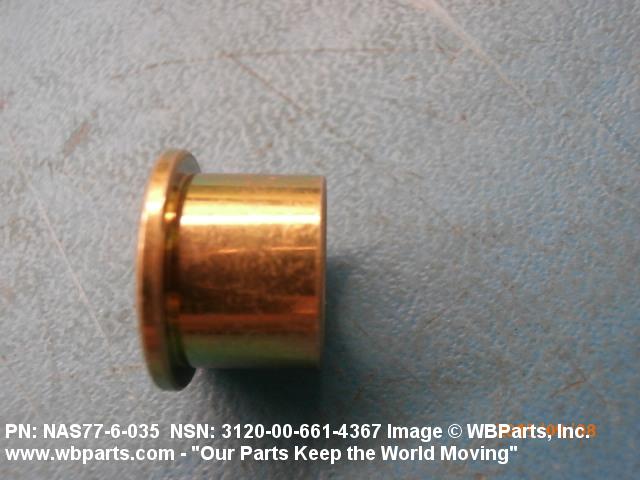

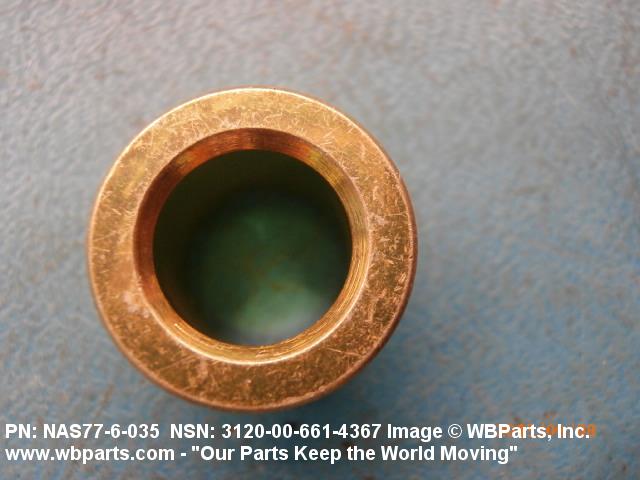

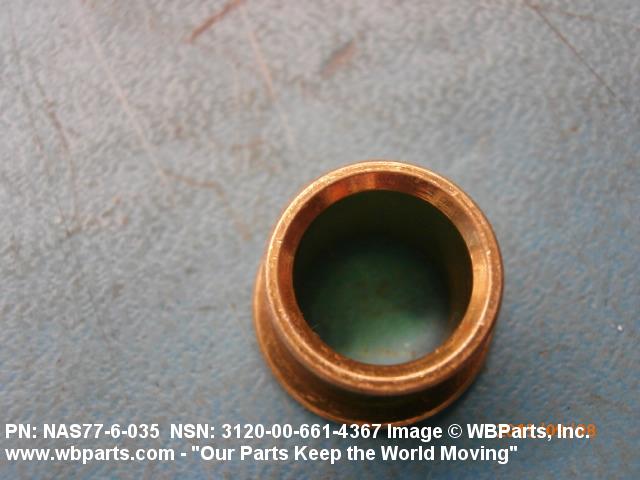

Drawings & Photos | NSN 3120-00-661-4367
Demand History | NSN 3120-00-661-4367
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-00-661-4367 | 2020-06-167 | 1 | US |
| 3120-00-661-4367 | 2017-11-325 | 321 | DIBBS |
| NAS776035 | 2015-08-238 | 50 | United States |
| 3120-00-661-4367 | 2014-07-183 | 198 | DIBBS |
| NAS776035 | 2014-01-17 | 50 | US |
| 3120-00-661-4367 | 2013-06-171 | 71 | DIBBS |
| 3120-00-661-4367 | 2013-06-156 | 71 | DIBBS |
| 3120-00-661-4367 | 2008-02-59 | 272 | DIBBS |
| 3120-00-661-4367 | 2007-06-157 | 226 | DIBBS |
| 3120-00-661-4367 | 2007-04-93 | 125 | DIBBS |
| 3120-00-661-4367 | 2007-04-93 | 67 | DIBBS |
Cross Reference | NSN 3120-00-661-4367
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BAS72 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS77 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS77-6-035 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS77-6-35 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-00-661-4367
Technical Data | NSN 3120-00-661-4367
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8630 OR STEEL COMP 4130 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6050 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 22C SOLID |

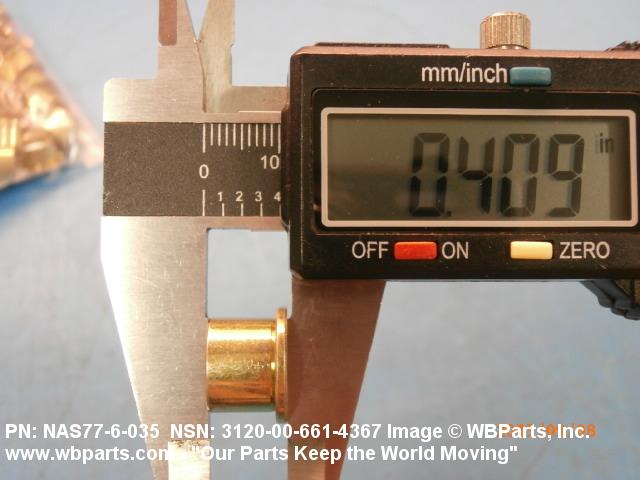

| OVERALL LENGTH | 0.4020 INCHES MINIMUM AND 0.4170 INCHES MAXIMUM |

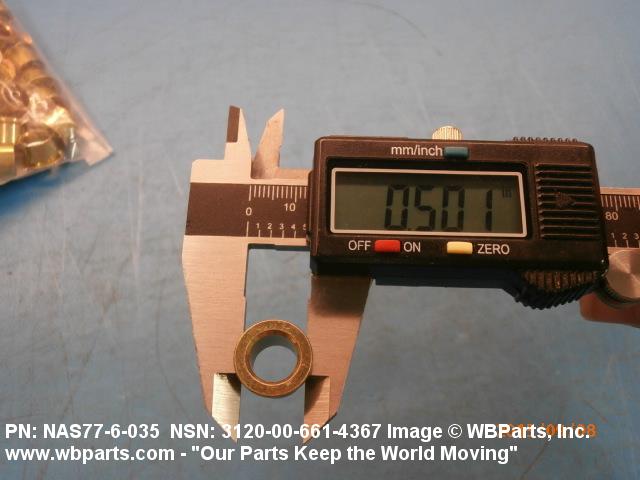

| BODY OUTSIDE DIAMETER | 0.5006 INCHES MINIMUM AND 0.5013 INCHES MAXIMUM |

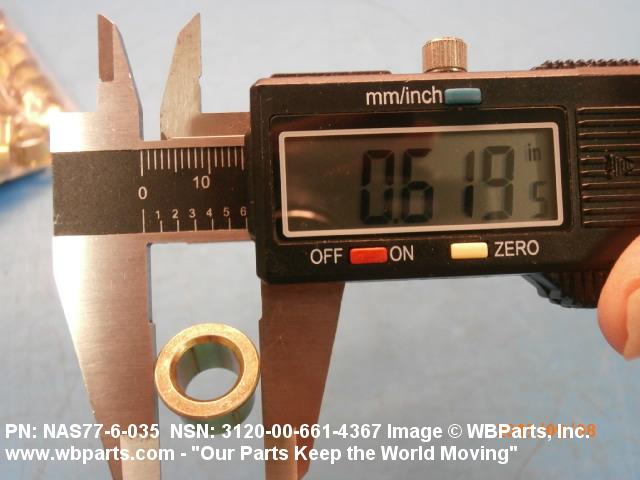

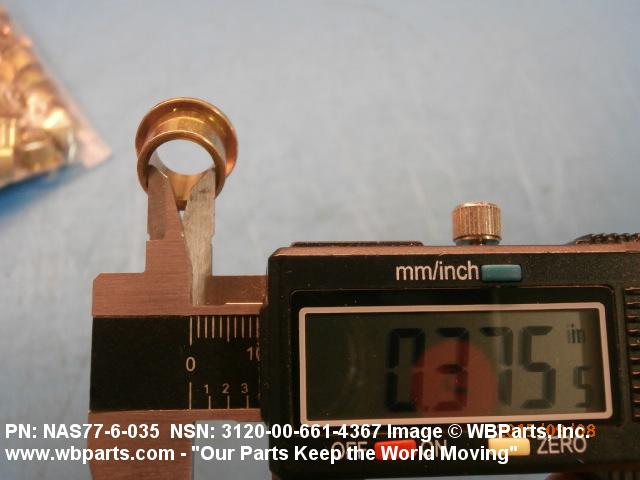

| BODY INSIDE DIAMETER | 0.3750 INCHES MINIMUM AND 0.3765 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 0.6150 INCHES MINIMUM AND 0.6350 INCHES MAXIMUM |

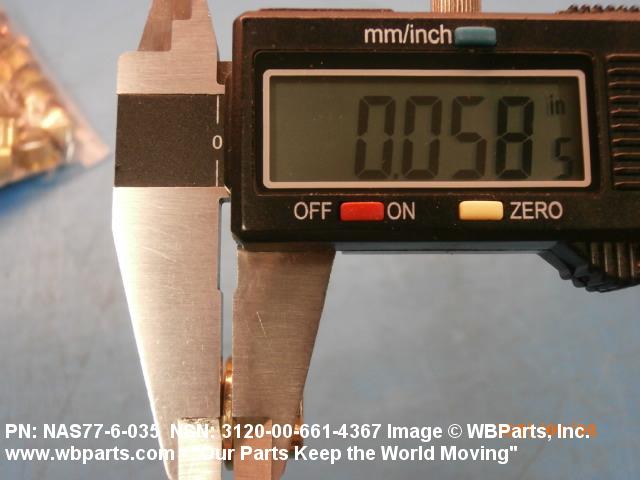

| FLANGE WIDTH | 0.0570 INCHES MINIMUM AND 0.0620 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER CHAMFERED INSIDE RIGHT CORNER CHAMFERED INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER UNDERCUT LEFT FLANGE BODY CORNER |
| SURFACE FINISH | 100.0 MICROINCHES INTERMEDIATE LAYER |
| SPECIFICATION/STANDARD DATA | 80205-NAS77 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
