NSN 3120-00-662-0447 SLT7663, SLT766-3, T15011
Product Details | THRUST WASHER BEARING
3120-00-662-0447 An item of any peripheral shape usually having one flat or spherical surface and a centrally located hole. It is designed for applications involving moving (kinetic) loads. Except for items fabricated from bearing quality synthetic (plastic) or composed of multilayer material, one bearing surface must either have a specific surface finish designation of 32 microinch (0.8 micrometre) or less, arithmetical average (aa) (arithmetic mean deviation) or one of the following conditions: be lapped or ground; have visible or detectable means of lubrication; grooves, indentations; or self-lubrication. The thickness must not exceed 25 percent of the outside diameter of the shortest distance between peripheral flats (when thickness and/or outside diameter is designated as a tolerance dimension, the maximum dimension will be used to determine compliance). Excludes straight, tubular (without flange) items having a bearing surface(s) parallel to the axis of the bore only. See also WASHER, FLAT and SPACER, SLEEVE.
Part Alternates: SLT7663, SLT766-3, T15011, T1501-1, TB1225, TB-1225, TT15011, TT1501-1, EW122502, TW78, 3120-00-662-0447, 00-662-0447, 3120006620447, 006620447
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-662-0447 | 13211 ( BEARING, WASHER, THRUST ) |

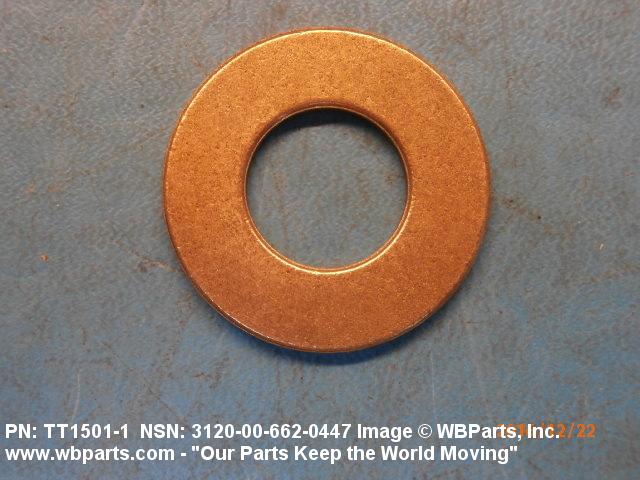

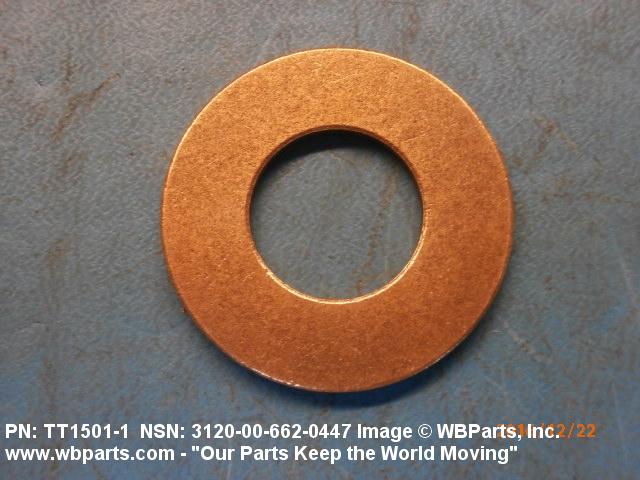

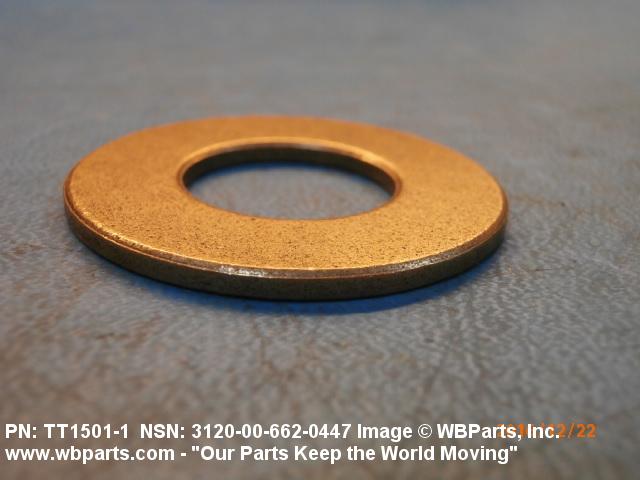

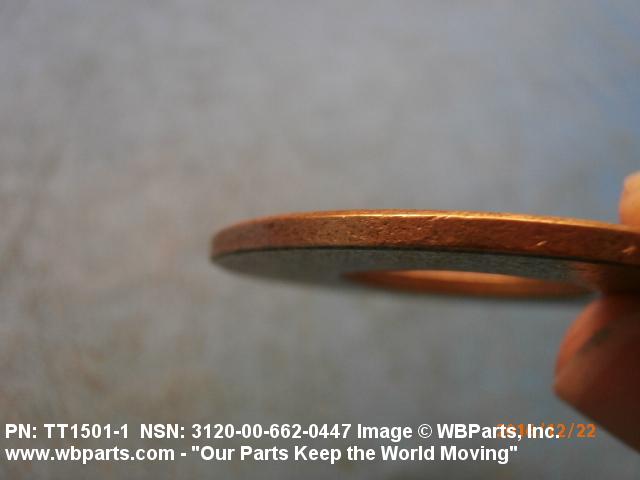

Drawings & Photos | NSN 3120-00-662-0447
Demand History | NSN 3120-00-662-0447
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| TT15011 | 2025-12-335 | 8 | US |
| EW-122502 | 2025-10-293 | 603 | DIBBS |
| TB-1225 | 2025-10-293 | 603 | DIBBS |
| TB-1225 | 2023-10-288 | 603 | DIBBS |
| TW78 | 2023-10-288 | 603 | DIBBS |
| TT15011 | 2016-12-342 | 1 | United States |
| 3120-00-662-0447 | 2010-02-36 | 3268 | DIBBS |
| 3120-00-662-0447 | 2009-07-187 | 677 | DIBBS |
| 3120-00-662-0447 | 2008-07-189 | 1989 | DIBBS |
| 3120-00-662-0447 | 2008-05-141 | 803 | DIBBS |
| 3120-00-662-0447 | 2007-11-309 | 530 | DIBBS |
| 3120-00-662-0447 | 2007-03-67 | 300 | DIBBS |
Cross Reference | NSN 3120-00-662-0447
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| EW122502 | 71366 | BUNTING BEARINGS CORP |
| SLT766-3 | 02254 | MASTEN BUNTING EAGLE-PICHER BEARINGS DIV |
| T1501-1 | 70417 | CHRYSLER CORP AMPLEX DIV |
| TB-1225 | 71041 | ALTRA HOLDINGS, INC. DIV BOSTON GEAR |
| TT1501-1 | 70417 | CHRYSLER CORP AMPLEX DIV |
| TT1501-1 | 70901 | BEEMER PRECISION INC |
| TT1501-1 | 75292 | EAGLE-PICHER INDUSTRIES INC KINGWELL DIV |
| TW78 | 4T3X6 | BUNTING BEARINGS, LLC |
| TW78 | 60960 | BUNTING BEARINGS CORP KALAMAZOO PLANT |
| TW78 | 71366 | BUNTING BEARINGS CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-662-0447
Related Products | NSN 3120-00-662-0447
Technical Data | NSN 3120-00-662-0447
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| STYLE DESIGNATOR | 23 ROUND |

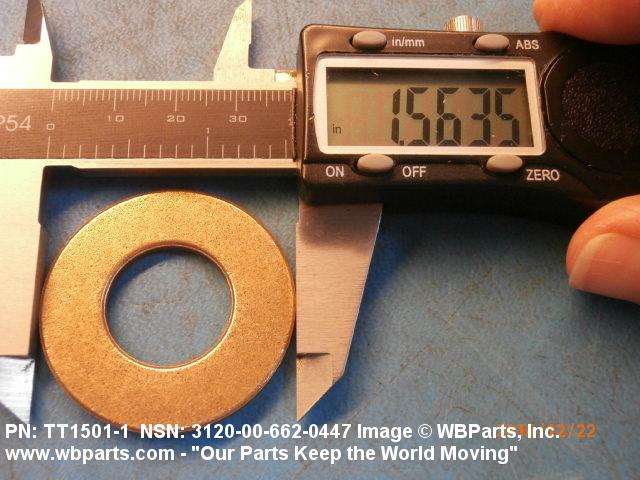

| OUTSIDE DIAMETER | 1.5520 INCHES MINIMUM AND 1.5720 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE ALL CORNERS |
| CROSS-SECTIONAL SHAPE STYLE | 35 RECTANGULAR |

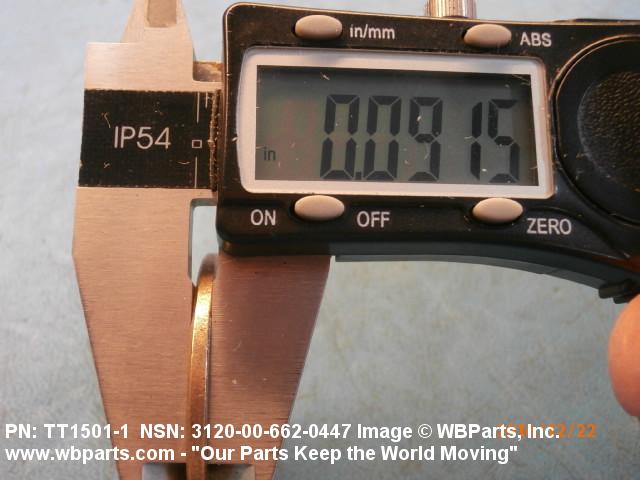

| OVERALL THICKNESS | 0.0912 INCHES MINIMUM AND 0.0963 INCHES MAXIMUM |
| CENTER HOLE SHAPE STYLE | 42 ROUND |

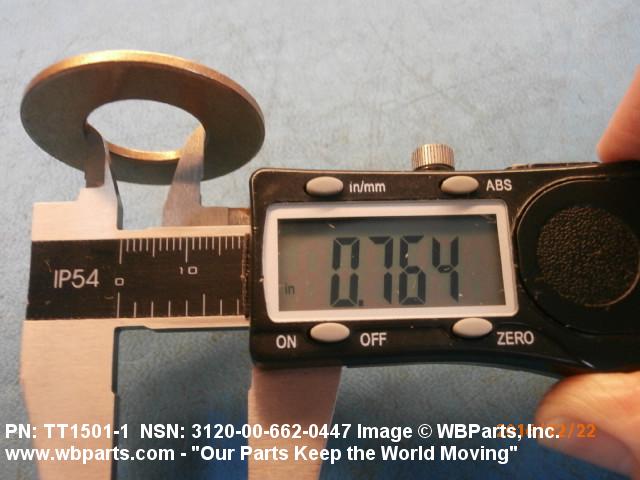

| DIAMETER | 0.7635 INCHES MINIMUM AND 0.7665 INCHES MAXIMUM |
| LUBRICATION MATERIAL | GREASE |
| MANUFACTURERS CODE | 71041 |
| DESIGN CONTROL REFERENCE | TB1225 |
Restrictions/Controls & Freight Information | NSN 3120-00-662-0447
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114870 | BEARING/BUSHING METAL |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-00-662-0447
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
