NSN 3120-00-740-6467 114R21991, 114R2199-1, 00-740-6467
Product Details | THRUST WASHER BEARING
3120-00-740-6467 An item of any peripheral shape usually having one flat or spherical surface and a centrally located hole. It is designed for applications involving moving (kinetic) loads. Except for items fabricated from bearing quality synthetic (plastic) or composed of multilayer material, one bearing surface must either have a specific surface finish designation of 32 microinch (0.8 micrometre) or less, arithmetical average (aa) (arithmetic mean deviation) or one of the following conditions: be lapped or ground; have visible or detectable means of lubrication; grooves, indentations; or self-lubrication. The thickness must not exceed 25 percent of the outside diameter of the shortest distance between peripheral flats (when thickness and/or outside diameter is designated as a tolerance dimension, the maximum dimension will be used to determine compliance). Excludes straight, tubular (without flange) items having a bearing surface(s) parallel to the axis of the bore only. See also WASHER, FLAT and SPACER, SLEEVE.
Part Alternates: 114R21991, 114R2199-1, 3120-00-740-6467, 00-740-6467, 3120007406467, 007406467
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-740-6467 | 13211 ( BEARING, WASHER, THRUST ) |

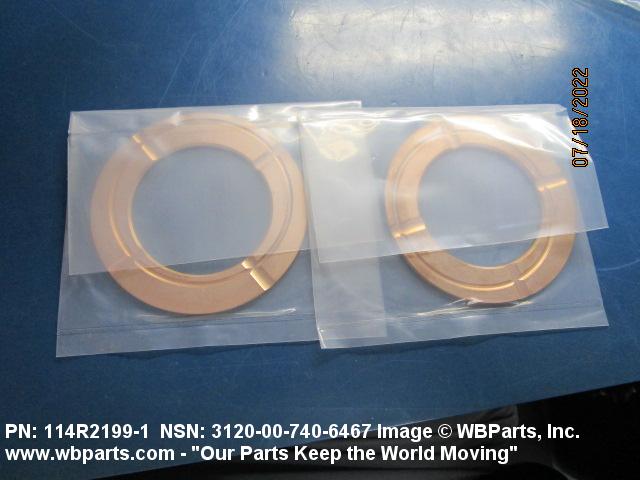

Drawings & Photos | NSN 3120-00-740-6467
Demand History | NSN 3120-00-740-6467
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-00-740-6467 | 2025-08-230 | 24 | US |
| 114R21991 | 2025-06-167 | 12 | United States |
| 114R21991 | 2022-07-188 | 2 | United States |
| 114R21991 | 2019-07-189 | 1 | United States |
| 114R21991 | 2019-04-120 | 5 | US |
| 3120-00-740-6467 | 2017-06-159 | 1000 | DIBBS |
| 3120-00-740-6467 | 2017-05-130 | 1 | DIBBS-RFPs |
| 3120-00-740-6467 | 2017-03-88 | 2500 | DIBBS |
| 3120-00-740-6467 | 2017-03-68 | 2500 | DIBBS |
| 3120-00-740-6467 | 2017-01-31 | 1 | DIBBS-RFPs |
| 3120-00-740-6467 | 2016-12-347 | 101 | DIBBS |
| 3120-00-740-6467 | 2016-12-343 | 24 | DIBBS |
| 3120-00-740-6467 | 2016-11-325 | 1154 | DIBBS |
| 3120-00-740-6467 | 2016-11-306 | 5001 | DIBBS |
| 3120-00-740-6467 | 2016-09-257 | 1 | DIBBS-RFPs |
| 3120-00-740-6467 | 2016-05-125 | 2213 | DIBBS |
| 3120-00-740-6467 | 2016-04-96 | 1764 | DIBBS |
| 3120-00-740-6467 | 2016-03-74 | 809 | DIBBS |
| 3120-00-740-6467 | 2016-02-47 | 3515 | DIBBS |
| 3120-00-740-6467 | 2015-12-354 | 3301 | DIBBS |
| 3120-00-740-6467 | 2015-12-341 | 626 | DIBBS |
| 3120-00-740-6467 | 2015-10-285 | 751 | DIBBS |
| 3120-00-740-6467 | 2015-08-229 | 1501 | DIBBS |
| 114R2199-1 | 2012-05-146 | 176 | US |
| 114R2199-1 | 2012-05-144 | 176 | US |
| 3120-00-740-6467 | 2011-06-157 | 1733 | DIBBS |
| 3120-00-740-6467 | 2011-01-21 | 3540 | DIBBS |
| 3120-00-740-6467 | 2010-07-201 | 868 | DIBBS |
| 3120-00-740-6467 | 2010-04-106 | 4082 | DIBBS |
| 3120-00-740-6467 | 2010-03-75 | 1353 | DIBBS |
| 3120-00-740-6467 | 2009-09-272 | 1947 | US |
| 3120-00-740-6467 | 2009-09-253 | 1947 | DIBBS |
| 3120-00-740-6467 | 2009-08-236 | 2655 | DIBBS |
| 3120-00-740-6467 | 2009-08-225 | 225 | DIBBS |
| 3120-00-740-6467 | 2009-08-217 | 100 | US |
| 3120-00-740-6467 | 2009-06-169 | 3424 | DIBBS |
| 3120-00-740-6467 | 2009-04-105 | 1665 | DIBBS |
| 3120-00-740-6467 | 2009-03-78 | 1087 | DIBBS |
| 3120-00-740-6467 | 2008-11-306 | 3210 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-740-6467
Related Products | NSN 3120-00-740-6467
Technical Data | NSN 3120-00-740-6467
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-P-330 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | 23 ROUND |

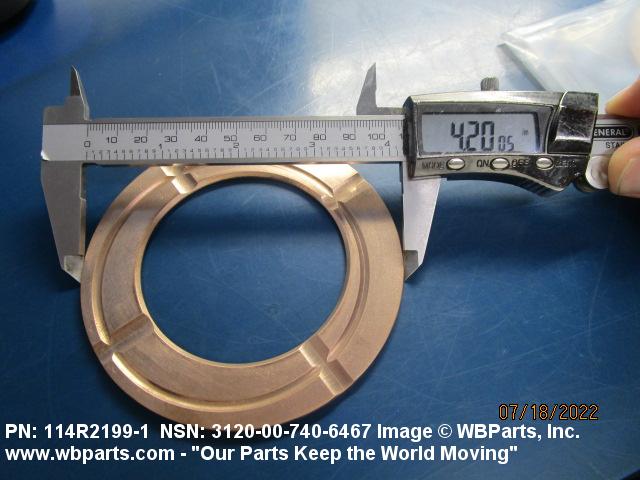

| OUTSIDE DIAMETER | 4.1900 INCHES MINIMUM AND 4.2100 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE FIRST OUTSIDE CORNER SQUARE SECOND OUTSIDE CORNER SQUARE FIRST INSIDE CORNER CHAMFERED SECOND INSIDE CORNER |
| CROSS-SECTIONAL SHAPE STYLE | 35 RECTANGULAR |

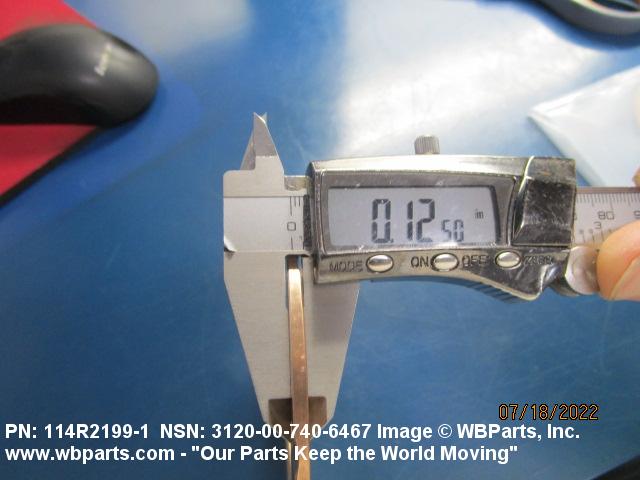

| OVERALL THICKNESS | 0.1230 INCHES MINIMUM AND 0.1260 INCHES MAXIMUM |
| CENTER HOLE SHAPE STYLE | 42 ROUND |

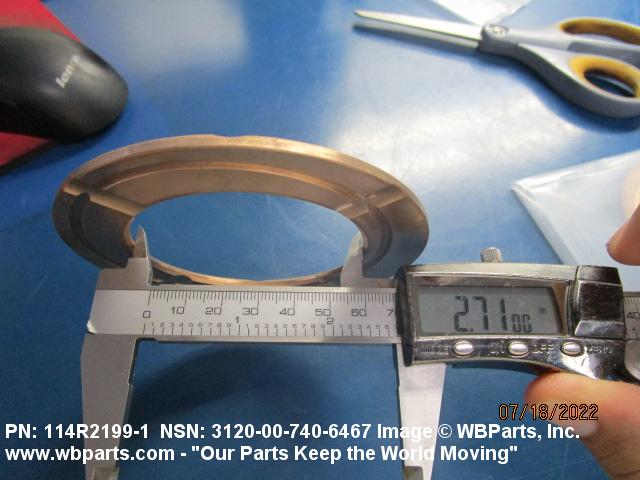

| DIAMETER | 2.7020 INCHES MINIMUM AND 2.7120 INCHES MAXIMUM |
| SURFACE FINISH | 125.0 MICROINCHES INSIDE DIAMETER SURFACE OF BODY 125.0 MICROINCHES LARGEST OUTSIDE DIAMETER 32.0 MICROINCHES LEFT SIDE 32.0 MICROINCHES RIGHT SIDE |

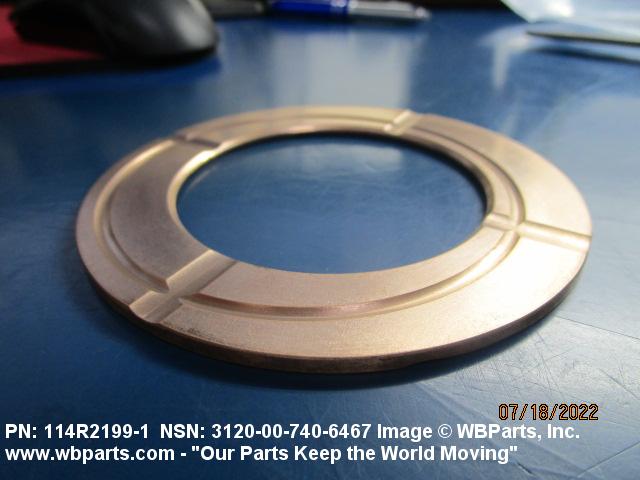

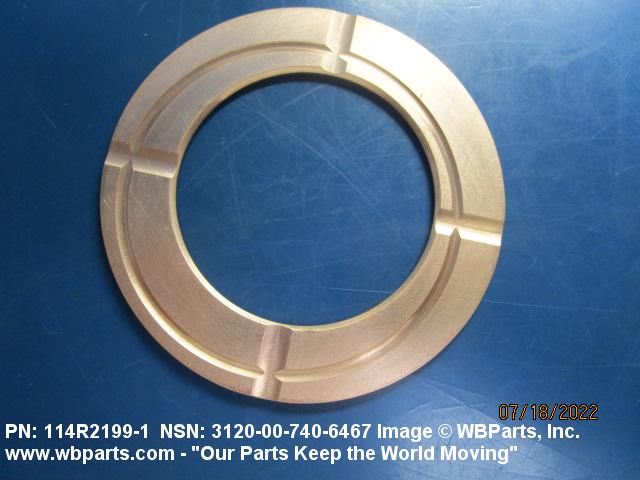

| LUBRICATION FEATURE | GROOVE EXTERNAL SURFACE MEMBER |
| (NON-CORE DATA) CHAMFER LENGTH | 0.0400 INCHES MINIMUM AND 0.0600 INCHES MAXIMUM |
| (NON-CORE DATA) CHAMFER ANGLE | 45.0 DEGREES NOMINAL |
| MANUFACTURERS CODE | 77272 |
| DESIGN CONTROL REFERENCE | 114R2199-1 |
Restrictions/Controls & Freight Information | NSN 3120-00-740-6467
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-00-740-6467
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
