NSN 3120-00-775-8063 B3291187PC1, 323B9361, 323B936-1
Product Details | SLEEVE BEARING HALF
3120-00-775-8063 A half of a two-piece split type BEARING, SLEEVE.
Part Alternates: B3291187PC1, 323B9361, 323B936-1, 3120-00-775-8063, 00-775-8063, 3120007758063, 007758063
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1962 | 00-775-8063 | 22210 ( BEARING HALF, SLEEVE ) |
Drawings & Photos | NSN 3120-00-775-8063
Demand History | NSN 3120-00-775-8063
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 323B936-1 | 2012-09-273 | 5 | |
| 3120-00-775-8063 | 2012-09-272 | 5 | NECO |
| 323B936-1 | 2012-05-125 | 3 | |
| 3120-00-775-8063 | 2012-05-124 | 3 | NECO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-775-8063
Related Products | NSN 3120-00-775-8063
Technical Data | NSN 3120-00-775-8063
| Characteristic | Specifications |
|---|---|

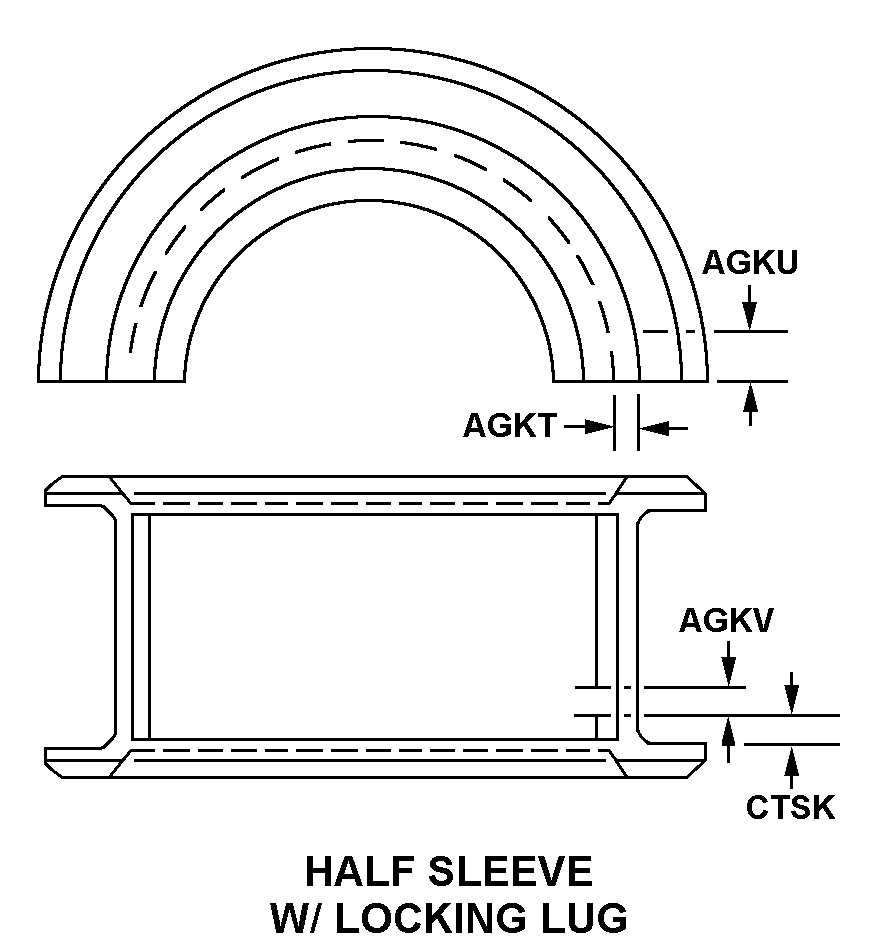

| STYLE DESIGNATOR | 22G HALF SLEEVE W/LOCKING LUG |
| LOCKING LUG HEIGHT | 0.0450 INCHES MINIMUM AND 0.0550 INCHES MAXIMUM |
| LOCKING LUG LENGTH | 0.1875 INCHES MINIMUM AND 0.2188 INCHES MAXIMUM |
| LOCKING LUG WIDTH | 0.1750 INCHES MINIMUM AND 0.1800 INCHES MAXIMUM |
| DISTANCE FROM LUG END TO INSIDE OF FLANGE | 0.4200 INCHES MINIMUM AND 0.4250 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER ROUND INSIDE RIGHT CORNER ROUND INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER ROUND LEFT FLANGE BODY CORNER SQUARE RIGHT FLANGE OUTSIDE LEFT CORNER ROUND RIGHT FLANGE BODY CORNER |
| ANTIROTATION/LUBRICATION TYPE AND QUANTITY | 2 HOLE |
| HOLE DIAMETER | 0.2500 INCHES NOMINAL FIRST |
| DISTANCE FROM CENTERLINE OF OPENING TO LEFT END OF BEARING | 1.0000 INCHES NOMINAL FIRST |
| HOLE SPACING ANGLE | 120.0 DEGREES NOMINAL |
| STANDARD SHAFT DIAMETER ACCOMMODATED | 1.9995 INCHES MINIMUM AND 2.0000 INCHES MAXIMUM |
| (NON-CORE DATA) RADIUS | 0.1250 INCHES NOMINAL 0.1250 INCHES NOMINAL 0.0625 INCHES NOMINAL 0.0625 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 3120-00-775-8063
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-00-775-8063
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7H | Depot level reparable shipboard and base equipment, assemblies, components and repair parts related to Naval Sea Systems Command equipment Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
