NSN 3120-00-788-0316 YTA127D, 114CS116, 114CS1161

Product Details | SELF-ALIGNING PLAIN BEARING

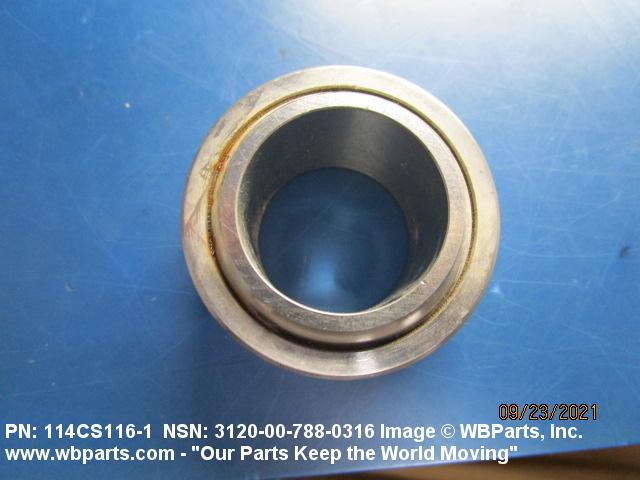

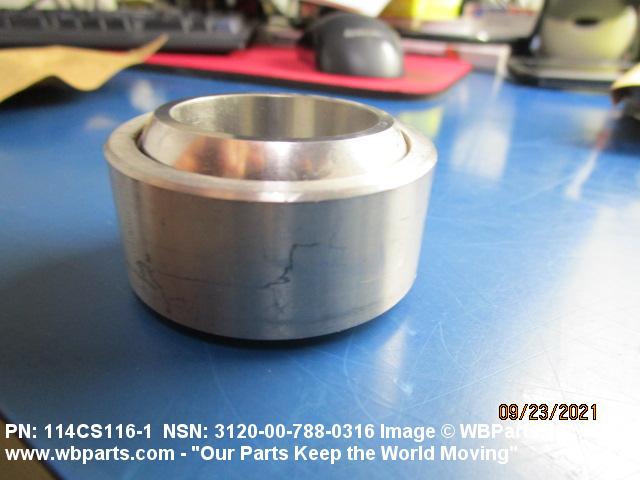

3120-00-788-0316 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.

Part Alternates: YTA127D, 114CS116, 114CS1161, 114CS116-1, 3120-00-788-0316, 00-788-0316, 3120007880316, 007880316

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1960	00-788-0316	13208 ( BEARING, PLAIN, SELF-ALIGNING )

Drawings & Photos | NSN 3120-00-788-0316

Part Number	Request Date	QTY	Origin
114CS116-1	2025-12-336	121	DIBBS
114CS116-1	2024-10-284	13	DIBBS
114CS116-1	2024-08-239	47	DIBBS
114CS116-1	2024-08-231	47	DIBBS
114CS1161	2024-07-211	2	United States
114CS116-1	2024-03-85	90	DIBBS
114CS116-1	2024-03-77	90	DIBBS
114CS116-1	2023-12-351	13	DIBBS
3120-00-788-0316	2023-09-268	19	United States
114CS116-1	2023-09-249	33	DIBBS
114CS116-1	2023-08-241	33	DIBBS
114CS1161	2023-08-228	4	United States
114CS116-1	2023-05-150	86	DIBBS
114CS116-1	2023-05-141	86	DIBBS
114CS116-1	2023-02-59	62	DIBBS
114CS1161	2022-11-307	4	United States
114CS116-1	2022-10-298	23	DIBBS
114CS116-1	2022-10-289	23	DIBBS
3120-00-788-0316	2022-09-251	16	US
114CS1161	2022-06-166	2	United States
114CS1161	2021-09-266	48	United States
114CS1161	2021-09-245	16	United States
114CS1161	2021-08-228	24	United States
114CS116-1	2021-02-54	67	DIBBS
114CS116-1	2021-02-46	67	DIBBS
3120-00-788-0316	2020-10-304	1	DIBBS-RFPs
114CS1161	2019-01-09	48	United States
3120-00-788-0316	2016-01-14	63	DIBBS
3120-00-788-0316	2016-01-06	63	DIBBS
3120-00-788-0316	2015-11-334	1	DIBBS-RFPs
3120-00-788-0316	2015-09-256	122	DIBBS
3120-00-788-0316	2015-05-139	6	United States
114CS1161	2015-05-131	6	United States
3120-00-788-0316	2014-10-288	113	DIBBS
3120-00-788-0316	2012-12-353	171	DIBBS
3120-00-788-0316	2011-04-102	214	DIBBS
3120-00-788-0316	2009-09-268	16	DIBBS
3120-00-788-0316	2008-04-95	240	DIBBS
3120-00-788-0316	2008-03-62	1	US
3120-00-788-0316	2008-02-32	99	DIBBS
3120-00-788-0316	2007-11-333	161	DIBBS
3120-00-788-0316	2007-08-242	148	DIBBS
3120-00-788-0316	2007-03-67	144	DIBBS

Cross Reference | NSN 3120-00-788-0316

Part Number	Cage Code	Manufacturer
114CS116	77272	THE BOEING COMPANY DBA BOEING

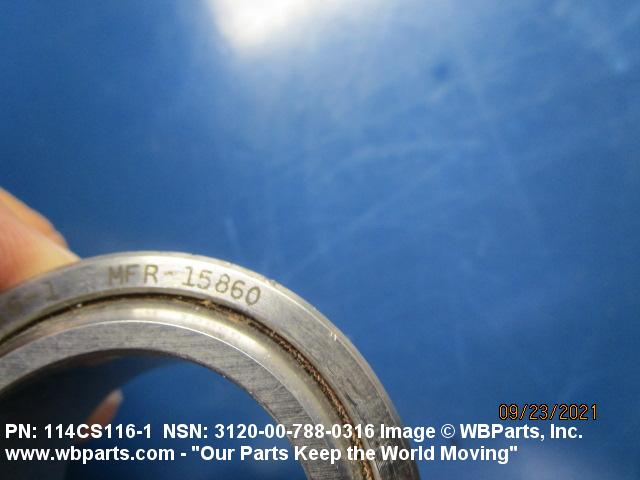

114CS116-1	15860	NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION

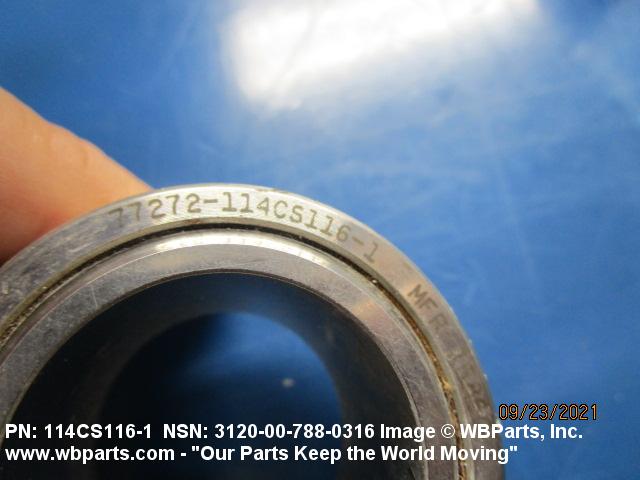

114CS116-1	77272	THE BOEING COMPANY DBA BOEING
114CS116-1	77896	REXNORD INDUSTRIES, LLC DIV BEARING OPERATION
114CS116-1	81205	THE BOEING COMPANY DBA BOEING
YTA127D	77896	REXNORD INDUSTRIES, LLC DIV BEARING OPERATION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3120-00-788-0316

Compare

Related Products | NSN 3120-00-788-0316

3120-00-788-0331, 3120-00-788-0473, 3120-00-788-0474, 3120-00-788-0475, 3120-00-788-0476

Technical Data | NSN 3120-00-788-0316

Characteristic	Specifications
MATERIAL	STEEL INNER MEMBER STEEL OUTER RACE MEMBER PLASTIC TETRAFLUOROETHYLENE RACE LINER
MATERIAL DOCUMENT AND CLASSIFICATION	FED-STD-66 FED STD SINGLE MATERIAL RESPONSE INNER MEMBER FED-STD-66 FED STD SINGLE MATERIAL RESPONSE OUTER RACE MEMBER 1680-4400,44114 MFR REF SINGLE MATERIAL RESPONSE RACE LINER
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	1680-4400,44114 MFR REF ALL TREATMENT RESPONSES OVERALL
STYLE DESIGNATOR	11A WITH INSERT AND/OR LINER

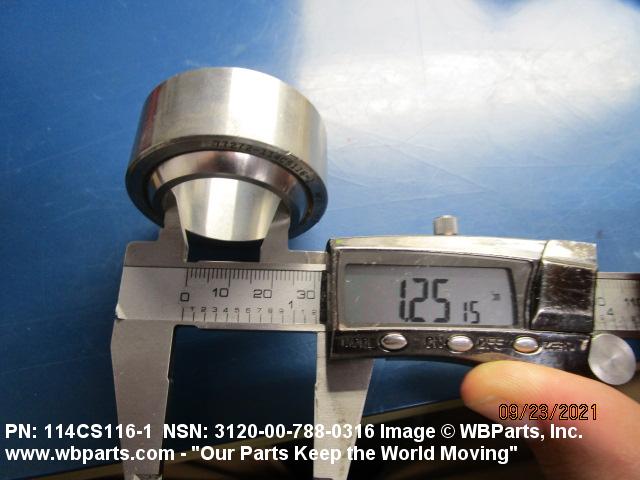

BORE DIAMETER	1.2500 INCHES MINIMUM AND 1.2508 INCHES MAXIMUM

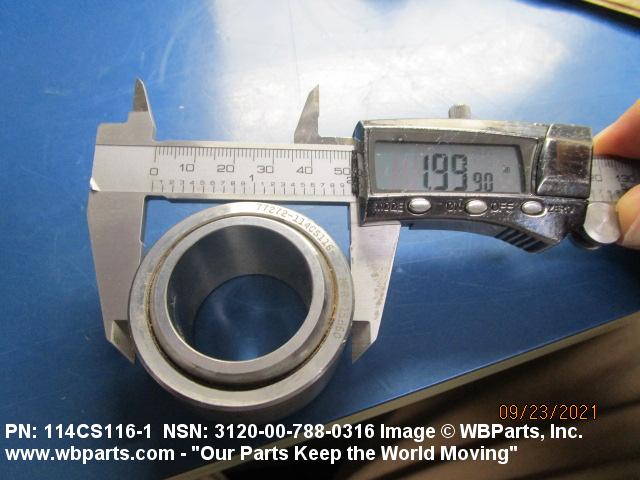

OUTER MEMBER OUTSIDE DIAMETER	1.9995 INCHES MINIMUM AND 1.9998 INCHES MAXIMUM

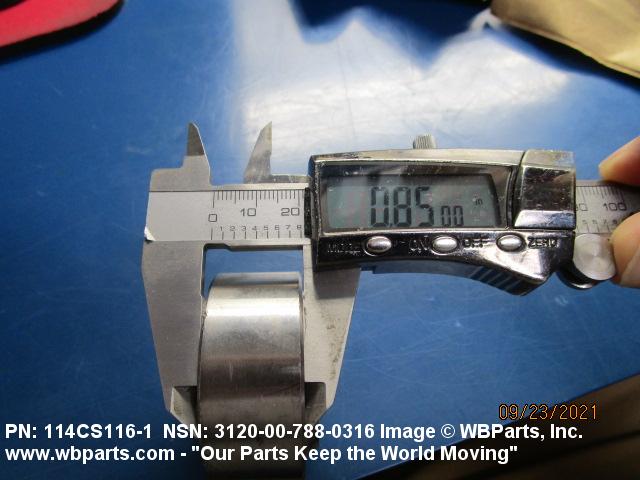

OUTER MEMBER WIDTH	0.8470 INCHES MINIMUM AND 0.8570 INCHES MAXIMUM

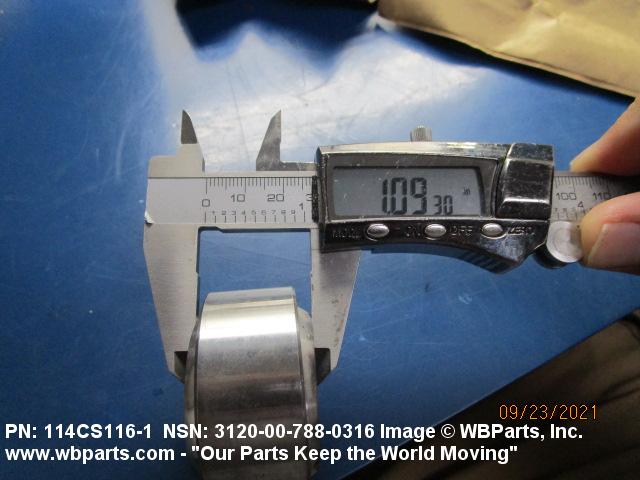

INNER MEMBER WIDTH	1.0880 INCHES MINIMUM AND 1.0930 INCHES MAXIMUM
SPECIAL FEATURES	9-1/2 DEG SELF-ALIGNMENT IN EITHER DIRECTION

Restrictions/Controls & Freight Information | NSN 3120-00-788-0316

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3120-00-788-0316

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
