NSN 3120-00-813-6787 BLR4425, HSBY4, 00-813-6787
Product Details | SELF-ALIGNING PLAIN BEARING
3120-00-813-6787 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.
Part Alternates: BLR4425, HSBY4, 3120-00-813-6787, 00-813-6787, 3120008136787, 008136787
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1962 | 00-813-6787 | 13208 ( BEARING, PLAIN, SELF-ALIGNING ) |

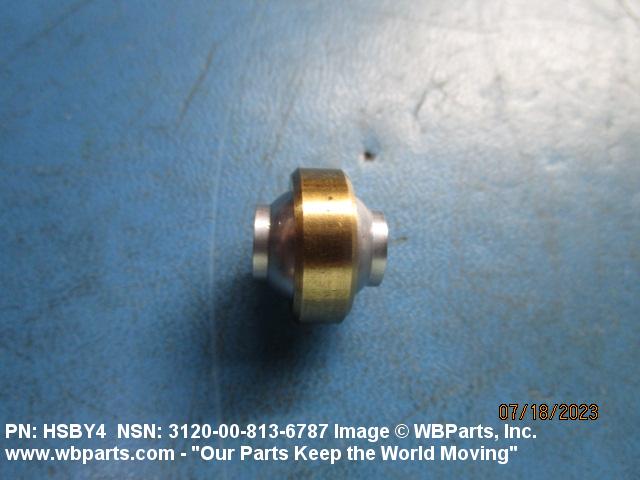

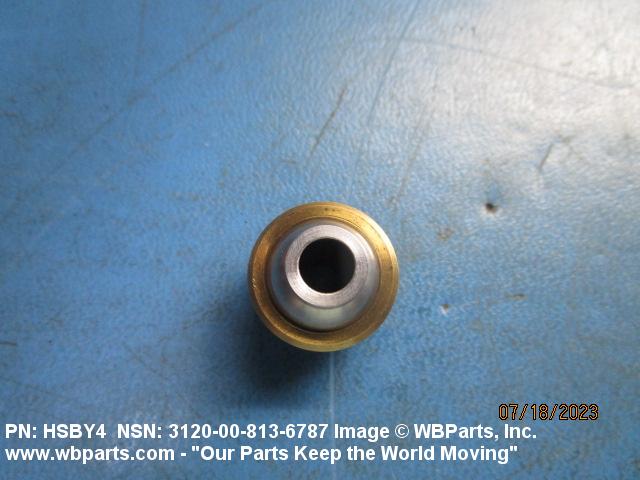

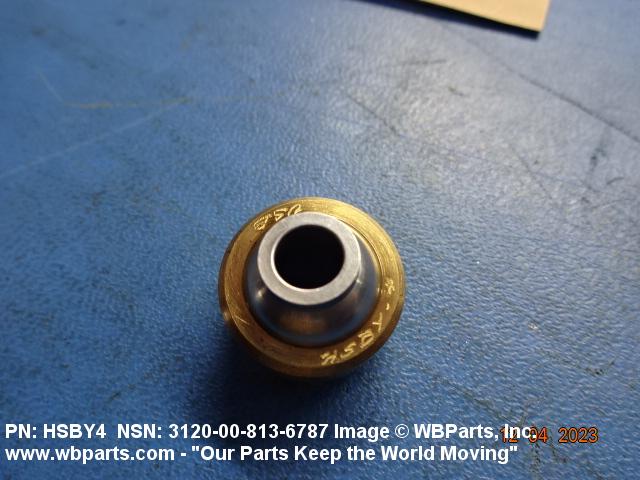

Drawings & Photos | NSN 3120-00-813-6787
Demand History | NSN 3120-00-813-6787
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-00-813-6787 | 2023-11-319 | 2 | United States |
| 3120-00-813-6787 | 2023-07-193 | 2 | United States |
| BLR4425 | 2023-06-156 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-00-813-6787
Technical Data | NSN 3120-00-813-6787
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL INNER MEMBER COPPER ALLOY OUTER RACE MEMBER |
| SURFACE TREATMENT | CHROMIUM INNER MEMBER |
| STYLE DESIGNATOR | 11B WITHOUT INSERT OR LINER |

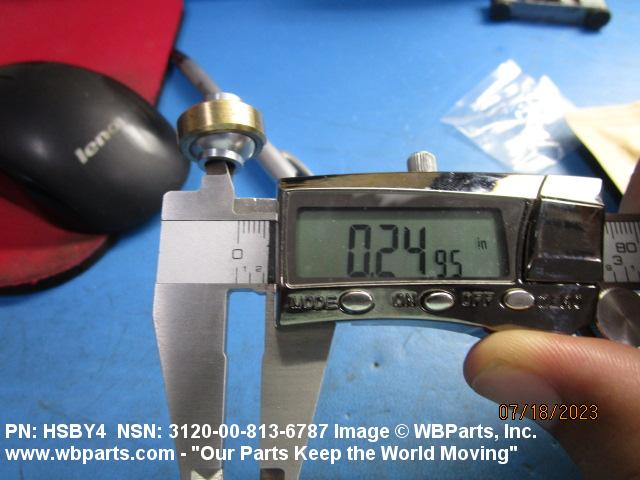

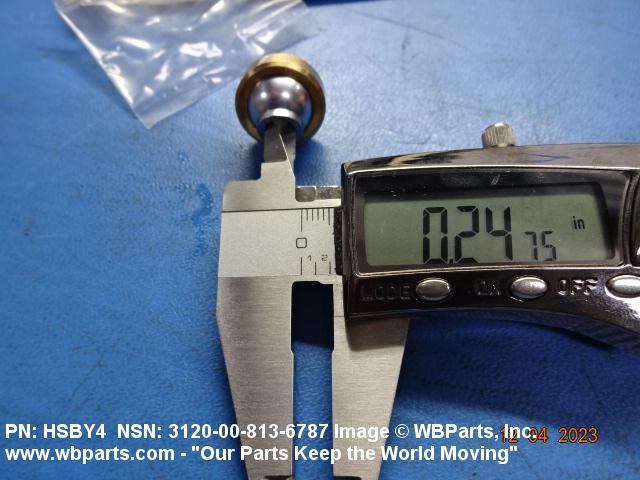

| BORE DIAMETER | 0.2495 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |

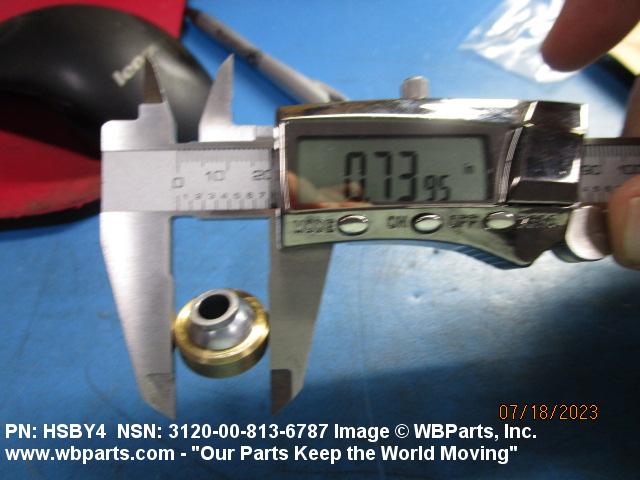

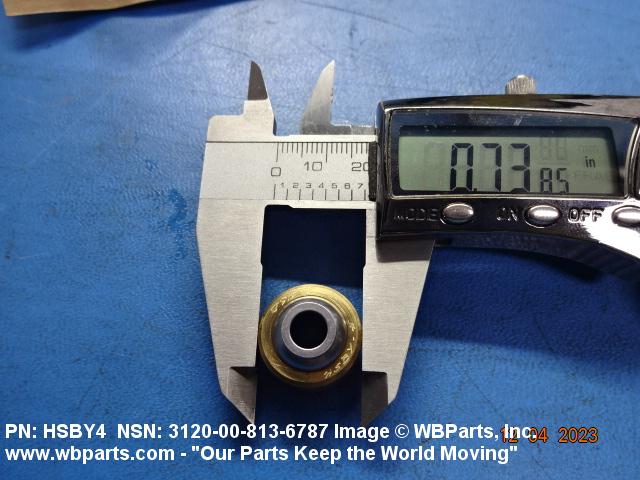

| OUTER MEMBER OUTSIDE DIAMETER | 0.7395 INCHES MINIMUM AND 0.7400 INCHES MAXIMUM |

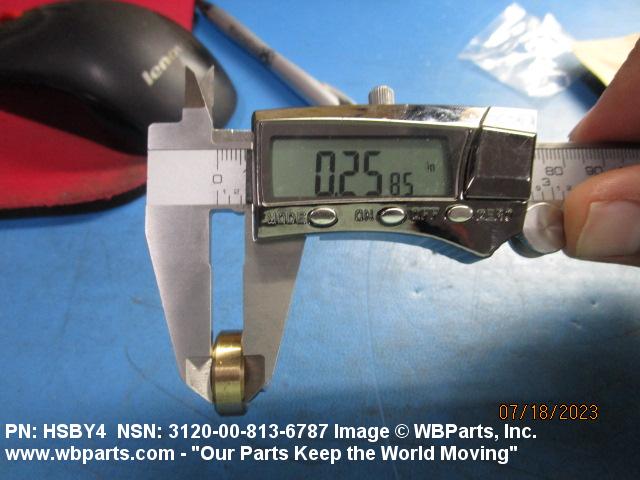

| OUTER MEMBER WIDTH | 0.2500 INCHES NOMINAL |

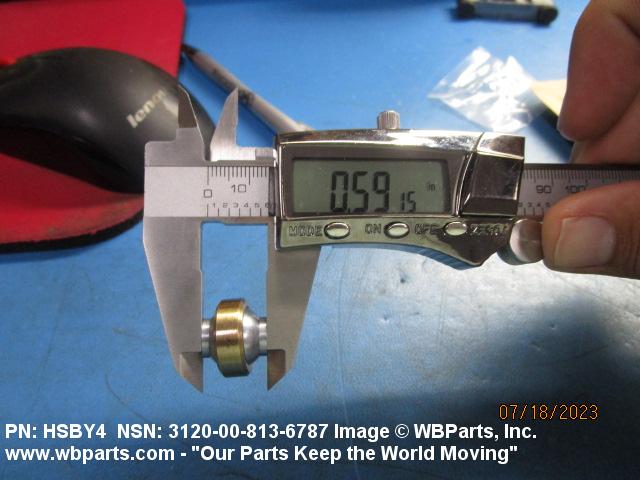

| INNER MEMBER WIDTH | 0.4880 INCHES MINIMUM AND 0.5930 INCHES MAXIMUM |
| MANUFACTURERS CODE | 81376 |
| DESIGN CONTROL REFERENCE | BLR4425 |
Restrictions/Controls & Freight Information | NSN 3120-00-813-6787
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
