NSN 3120-00-849-4375 114R11638, 114R116-38, 114R311638
Product Details | SLEEVE BUSHING
3120-00-849-4375 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: 114R11638, 114R116-38, 114R311638, 114R3116-38, 3120-00-849-4375, 00-849-4375, 3120008494375, 008494375
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 11 JAN 1967 | 00-849-4375 | 13206 ( BUSHING, SLEEVE ) |

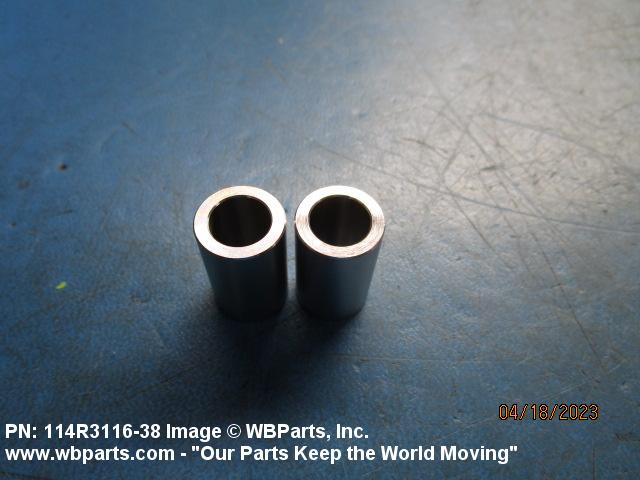

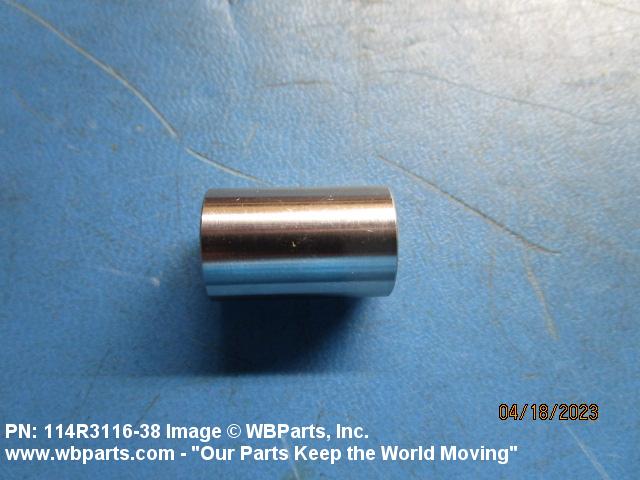

Drawings & Photos | NSN 3120-00-849-4375
Demand History | NSN 3120-00-849-4375
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 114R311638 | 2023-03-83 | 2 | United States |
| 114R3116-38 | 2020-06-160 | 249 | DIBBS |
| 114R3116-38 | 2019-01-06 | 578 | DIBBS |
| 3120-00-849-4375 | 2018-12-343 | 291 | DIBBS |
| 3120-00-849-4375 | 2018-07-185 | 249 | DIBBS |
| 3120-00-849-4375 | 2017-07-199 | 243 | DIBBS |
| 3120-00-849-4375 | 2017-07-190 | 243 | DIBBS |
| 3120-00-849-4375 | 2016-09-260 | 248 | DIBBS |
| 3120-00-849-4375 | 2016-08-229 | 248 | DIBBS |
| 114R311638 | 2014-03-78 | 12 | United States |
| 3120-00-849-4375 | 2009-08-218 | 1102 | US |
| 3120-00-849-4375 | 2009-07-210 | 96 | DIBBS |
| 3120-00-849-4375 | 2009-07-210 | 911 | DIBBS |
| 3120-00-849-4375 | 2009-07-205 | 96 | DIBBS |
| 3120-00-849-4375 | 2009-07-205 | 910 | DIBBS |
| 3120-00-849-4375 | 2009-06-155 | 100 | us |
| 3120-00-849-4375 | 2009-03-78 | 897 | DIBBS |
| 3120-00-849-4375 | 2008-10-283 | 2 | DIBBS |
| 3120-00-849-4375 | 2008-10-280 | 1 | DIBBS |
| 3120-00-849-4375 | 2008-08-241 | 201 | DIBBS |
| 3120-00-849-4375 | 2008-08-241 | 1 | DIBBS |
| 3120-00-849-4375 | 2008-06-176 | 35 | DIBBS |
Cross Reference | NSN 3120-00-849-4375
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 114R116-38 | 0F3N2 | CREATIVE PRECISION, INC. DBA CREATIVE PRECISION EAST |
| 114R116-38 | 50036 | MIL-CRAFT MFG. INC. |
| 114R116-38 | 8X808 | BUCKEYE MACHINING CO |
| 114R3116-38 | 0F3N2 | CREATIVE PRECISION, INC. DBA CREATIVE PRECISION EAST |
| 114R3116-38 | 50036 | MIL-CRAFT MFG. INC. |
| 114R3116-38 | 77272 | THE BOEING COMPANY DBA BOEING |
| 114R3116-38 | 8X808 | BUCKEYE MACHINING CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-849-4375
Related Products | NSN 3120-00-849-4375
Technical Data | NSN 3120-00-849-4375
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | 17C SOLID |

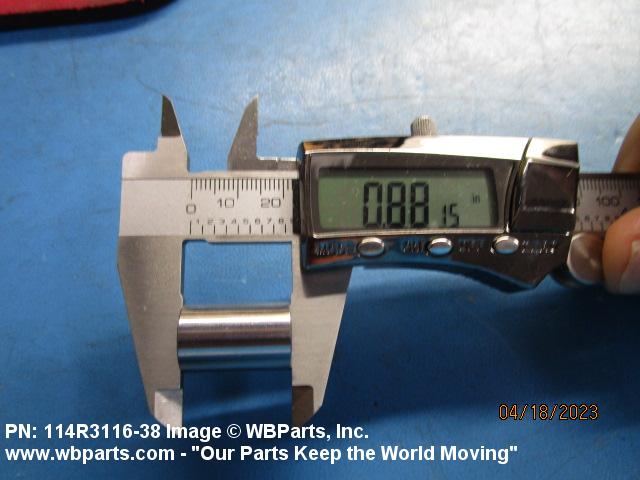

| OVERALL LENGTH | 0.8760 INCHES MINIMUM AND 0.8860 INCHES MAXIMUM |

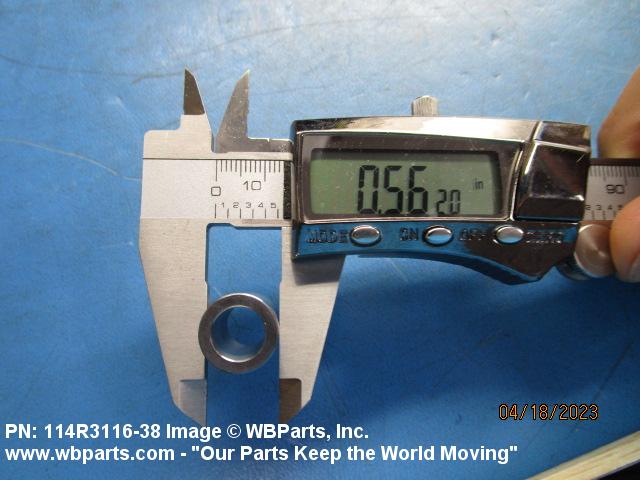

| BODY OUTSIDE DIAMETER | 0.5619 INCHES MINIMUM AND 0.5624 INCHES MAXIMUM |

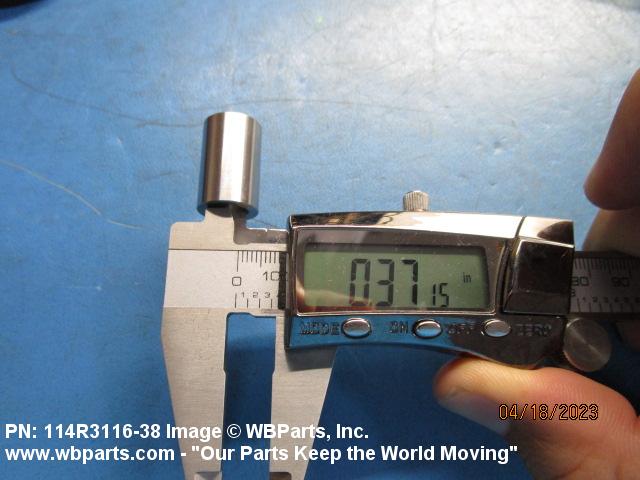

| BODY INSIDE DIAMETER | 0.3748 INCHES MINIMUM AND 0.3755 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE ALL CORNERS |
Restrictions/Controls & Freight Information | NSN 3120-00-849-4375
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-00-849-4375
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
