NSN 3120-00-943-9984 KSBN144, KSBN14-4, 00-943-9984
Product Details | SELF-ALIGNING PLAIN BEARING
3120-00-943-9984 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.
Part Alternates: KSBN144, KSBN14-4, 3120-00-943-9984, 00-943-9984, 3120009439984, 009439984
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 MAR 1966 | 00-943-9984 | 13208 ( BEARING, PLAIN, SELF-ALIGNING ) |

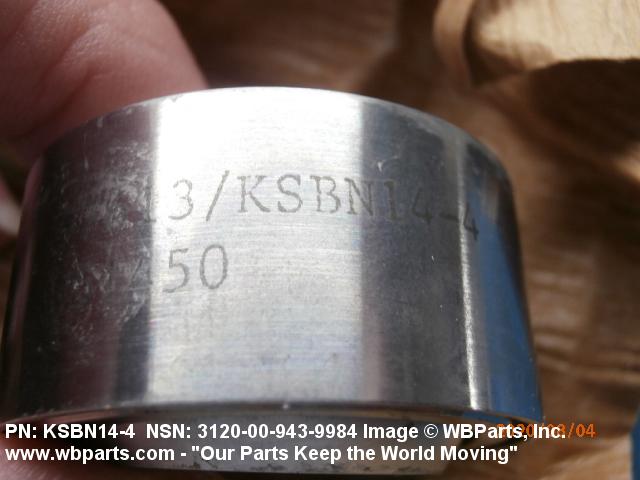

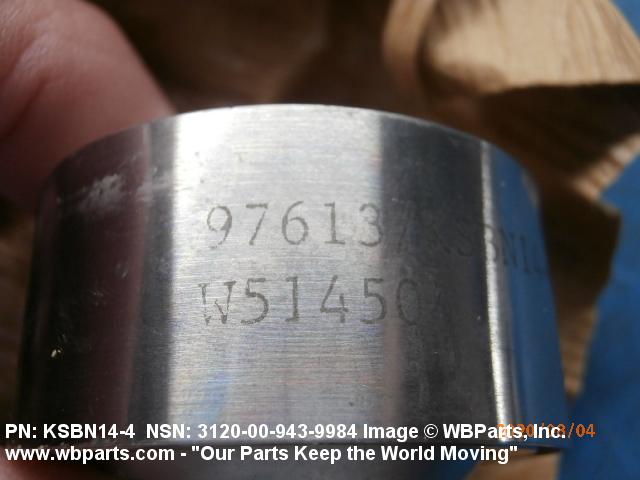

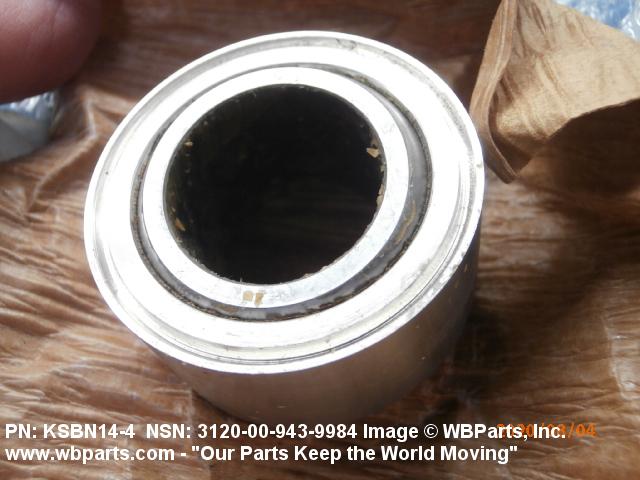

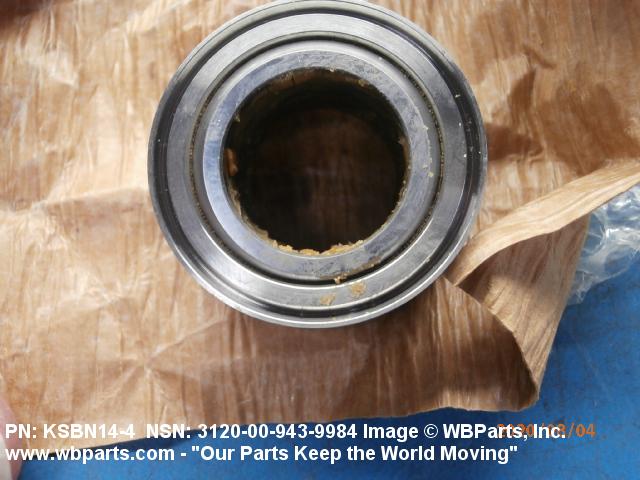

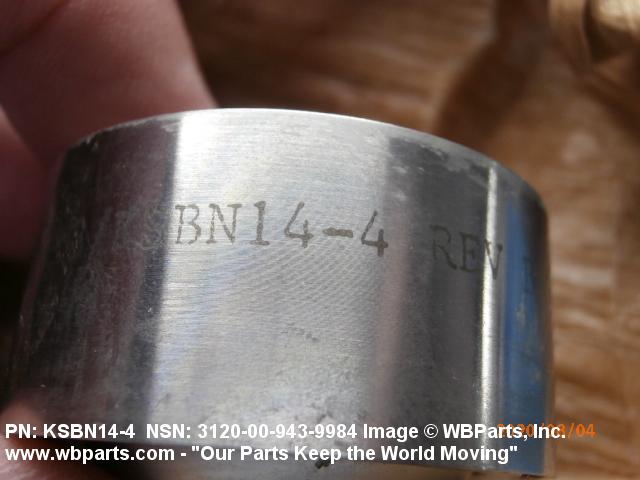

Drawings & Photos | NSN 3120-00-943-9984
Demand History | NSN 3120-00-943-9984
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-00-943-9984 | 2020-07-209 | 1 | United States |
| KSBN144 | 2019-04-93 | 80 | United Kingdom |
| 3120-00-943-9984 | 2017-11-310 | 49 | United States |
| KSBN144 | 2014-07-198 | 10 | US |
| KSBN144 | 2009-11-322 | 30 | US |
| KSBN144 | 2008-04-121 | 17 | US |
Cross Reference | NSN 3120-00-943-9984
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| KSBN14-4 | 97613 | DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-943-9984
Related Products | NSN 3120-00-943-9984
Technical Data | NSN 3120-00-943-9984
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 INNER MEMBER STEEL CORROSION RESISTING OUTER RACE MEMBER PLASTIC RACE LINER |
| HARDNESS RATING | 57.0 ROCKWELL C MINIMUM AND 61.0 ROCKWELL C MAXIMUM INNER MEMBER |
| SURFACE TREATMENT | CHROMIUM INNER MEMBER |
| STYLE DESIGNATOR | 11A WITH INSERT AND/OR LINER |
| BORE DIAMETER | 0.8750 INCHES MINIMUM AND 0.9745 INCHES MAXIMUM |

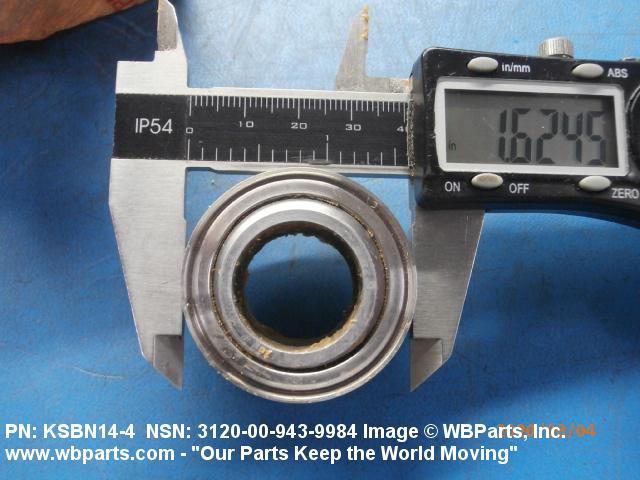

| OUTER MEMBER OUTSIDE DIAMETER | 1.6245 INCHES MINIMUM AND 1.6250 INCHES MAXIMUM |

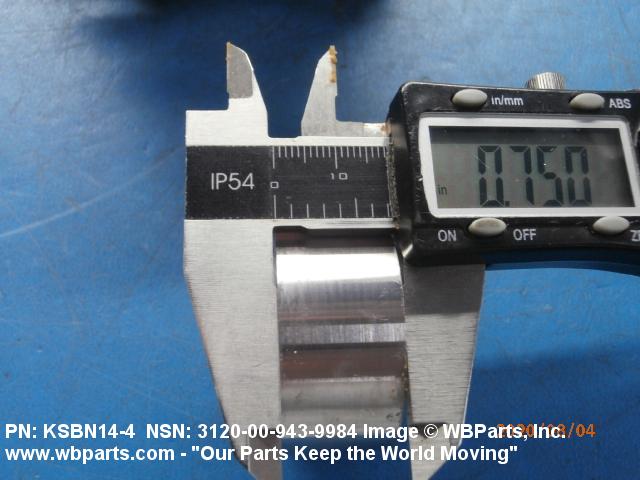

| OUTER MEMBER WIDTH | 0.7500 INCHES MINIMUM AND 0.7600 INCHES MAXIMUM |

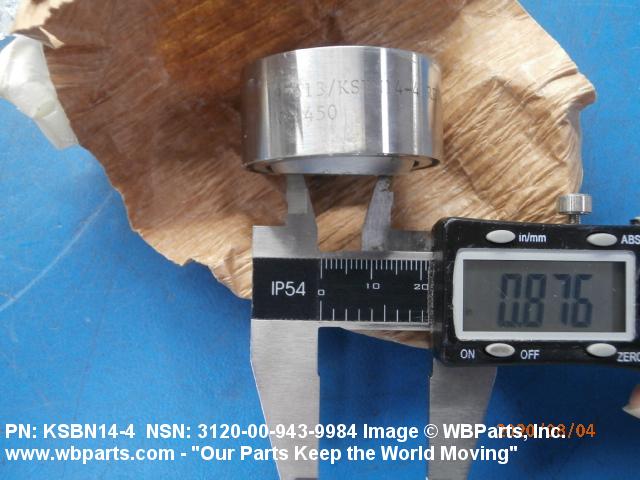

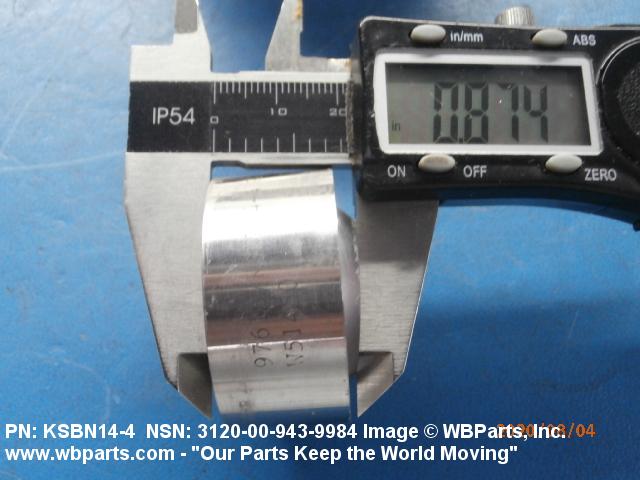

| INNER MEMBER WIDTH | 0.8700 INCHES MINIMUM AND 0.8750 INCHES MAXIMUM |
| LUBRICATION MATERIAL | GREASE, MIL-G-23827 |
| STATIC RADIAL LOAD RATING | 71000 POUNDS |
| SPECIAL FEATURES | BALL BORE ONLY PACKED WITH MIL-G-23827 GREASE |
| MANUFACTURERS CODE | 97613 |
| DESIGN CONTROL REFERENCE | KSBN14-4 |
Restrictions/Controls & Freight Information | NSN 3120-00-943-9984
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-00-943-9984
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
