NSN 3120-00-989-4043 ATBY4AAV7, LHV414, LHV4-14
Product Details | SELF-ALIGNING PLAIN BEARING
3120-00-989-4043 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.
Part Alternates: ATBY4AAV7, LHV414, LHV4-14, RALT34N1, RALT4N1, 176260, 209-001-051, 2090010511, 209-001-051-1, 3120-00-989-4043, 00-989-4043, 3120009894043, 009894043, 209001051
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 16 NOV 1966 | 00-989-4043 | 13208 ( BEARING, PLAIN, SELF-ALIGNING ) |

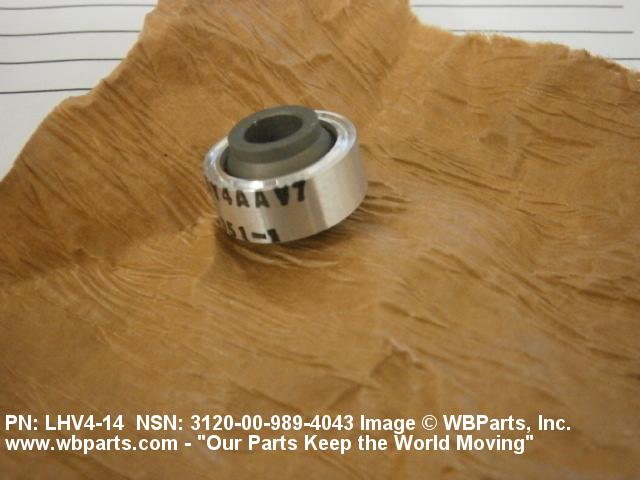

Drawings & Photos | NSN 3120-00-989-4043
Demand History | NSN 3120-00-989-4043
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2090010511 | 2016-12-355 | 80 | United States |
| 2090010511 | 2014-07-209 | 75 | US |
| 3120-00-989-4043 | 2011-12-343 | 20 | United States |
| 2090010511 | 2011-12-335 | 120 | United States |
| LHV414 | 2011-03-63 | 50 | US |
| ATBY4AAV7 | 2010-05-137 | 100 | United States |
| 3120-00-989-4043 | 2009-12-363 | 222 | DIBBS |
| 3120-00-989-4043 | 2009-09-245 | 70 | US |
| 3120-00-989-4043 | 2009-09-245 | 1 | US |
| 2090010511 | 2009-09-245 | 1 | US |
Cross Reference | NSN 3120-00-989-4043
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 176260 | 09455 | RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS |
| 209-001-051 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 209-001-051-1 | 15860 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION |
| 209-001-051-1 | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
| 209-001-051-1 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 209-001-051-1 | 99528 | RADIAL BEARING CORPORATION |
| ATBY4AAV7 | 15860 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION |
| LHV4-14 | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
| RALT34N1 | 99528 | RADIAL BEARING CORPORATION |
| RALT4N1 | 99528 | RADIAL BEARING CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-989-4043
Related Products | NSN 3120-00-989-4043
Technical Data | NSN 3120-00-989-4043
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5086 INNER MEMBER ALUMINUM ALLOY 5086 OUTER RACE MEMBER PLASTIC TETRAFLUOROETHYLENE RACE LINER |
| MATERIAL DOCUMENT AND CLASSIFICATION | 209-001-051,97499 MFR REF ALL MATERIAL RESPONSES INNER MEMBER 209-001-051,97499 MFR REF ALL MATERIAL RESPONSES OUTER RACE MEMBER 209-001-051,97499 MFR REF ALL MATERIAL RESPONSES RACE LINER |
| SURFACE TREATMENT | ANODIZE INNER MEMBER ANODIZE OUTER RACE MEMBER PLASTIC RACE LINER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | 209-001-051,97499 MFR REF ALL TREATMENT RESPONSES INNER MEMBER 209-001-051,97499 MFR REF ALL TREATMENT RESPONSES OUTER RACE MEMBER 209-001-051,97499 MFR REF ALL TREATMENT RESPONSES RACE LINER |
| STYLE DESIGNATOR | 10A WITH INSERT AND/OR LINER WITH STAKING GROOVE |
| BORE DIAMETER | 0.2495 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 0.6557 INCHES MINIMUM AND 0.6562 INCHES MAXIMUM |
| OUTER MEMBER WIDTH | 0.2500 INCHES MINIMUM AND 0.2550 INCHES MAXIMUM |
| INNER MEMBER WIDTH | 0.4440 INCHES MINIMUM AND 0.4480 INCHES MAXIMUM |
| STATIC RADIAL LOAD RATING | 3600 POUNDS |
| SPECIAL FEATURES | 10.0 DEG MIN MISALIGNMENT IN EITHER DIRECTION |
| MANUFACTURERS CODE | 97499 |
| MFR SOURCE CONTROLLING REFERENCE | 209-001-051 |
Restrictions/Controls & Freight Information | NSN 3120-00-989-4043
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-00-989-4043
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BX | OH-58D Army Helicopter Improvement Program (AHIP) |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
